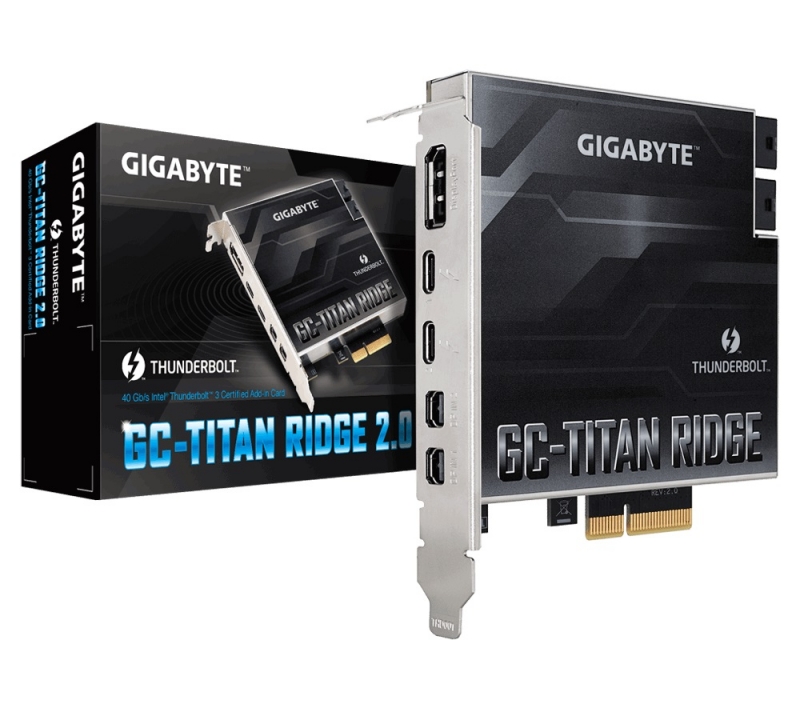

GC-TITAN RIDGE offers an easy way to upgrade GIGABYTE Thunderbolt™ ready motherboards with the new and faster Thunderbolt™ 3 connectivity without having to upgrade to a whole new system.

Intel® Thunderbolt™ 3 Certified add-in card
Intel® DSL7540 Thunderbolt™ 3 controller
Dual Thunderbolt™ 3 Ports (USB Type-C™)
Max Bandwidth 40 Gb/s
DisplayPort 1.4 Capable with 4K Video Throughout
Daisy-chain up to 12 Devices (6 devices per port)
Support PD3.0 standard (up to 100W)

Port 1 : Support 5V/3A 9V/3A 15V/3A 20V/5A Power Delivery Spec
Port 2 : Support 5V/3A 9V/3A Power Delivery Spec

Dual Thunderbolt™ 3 – The fastest 40Gb/s single-wire connection
Delivers speeds of up to 40Gb/s-- that's 2 times faster than Thunderbolt™ 2 and 8 times faster than USB3. Thunderbolt™ 3 provides the fastest connection to any dock, display and device. A single port can daisy-chain up to 6 Thunderbolt devices without an additional hub or switch.

Certified Motherboards with GC-TITAN RIDGE
* Supported status may vary depending on motherboard specifications.
* Support for Windows 10 64-bit with RS3 or later.
