• Next Generation 40 Gb/s Thunderbolt™ 3
  Dual Thunderbolt™ 3 – The fastest 40Gb/s single-wire connection

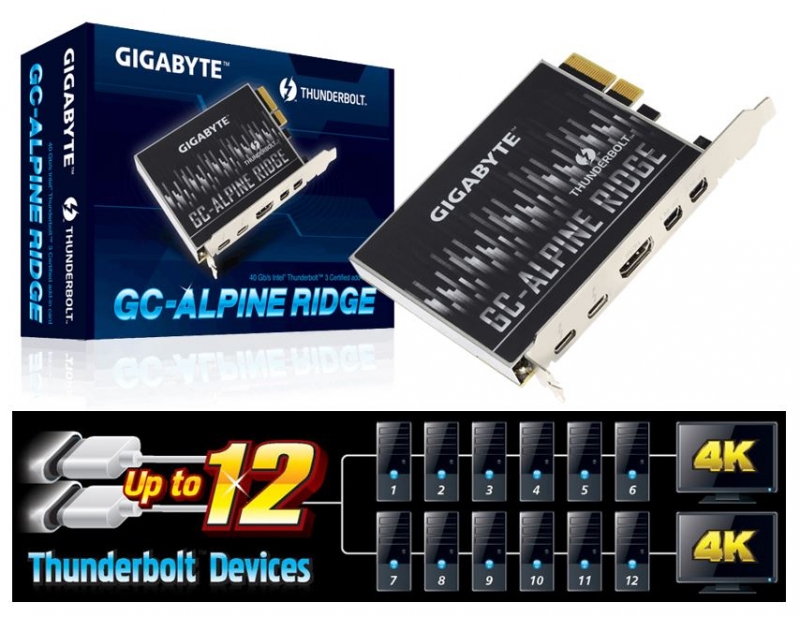

  The GC-ALPINE RIDGE offers an easy way to upgrade GIGABYTE Thunderbolt™ ready motherboards with the new and faster Thunderbolt™ 3 connectivity without having to upgrade to a whole new system.


  GC-ALPINE RIDGE card with dual Thunderbolt™ 3 ports offers:
  • Dual Thunderbolt™ 3 Ports
  • 40 Gb/s Bi-directional Bandwidth
  • DisplayPort 1.2 Capable with 4K Video Throughout
  • Daisy-chain up to 12 Devices (6 devices per port)

  　


• Daisy-chain Multiple Devices
  Support for DisplayPort 1.2 makes Thunderbolt™ 3 a must have for any enthusiast. The GIGABYTE Thunderbolt™ ready motherboards are able to support two displays in 4K resolution at 60 FPS or one display in 5K resolution. In addition, Thunderbolt™ 3 over USB Type-C™ has revolutionary industry-first features such as Power Delivery 2.0, and the ability to daisy-chain up to 12 devices thanks to the dual USB Type-C™ ports.

  　



Gigabyte Alpine Ridge Dual Thunderbolt 3 Card for H270 Z270 X99 Series MB 3 Ports USB Type-C 40 Gb/s DisplayPort 1.2 4K Daisy-chain up to 12 Devices

Next Generation 40 Gb/s Thunderbolt™ 3
Dual Thunderbolt™ 3 – The fastest 40Gb/s single-wire connection
The GC-ALPINE RIDGE offers an easy way to upgrade GIGABYTE Thunderbolt™ ready motherboards with the new and faster Thunderbolt™ 3 connectivity without having to upgrade to a whole new system.

GC-ALPINE RIDGE card with dual Thunderbolt™ 3 ports offers:
• Dual Thunderbolt™ 3 Ports
• 40 Gb/s Bi-directional Bandwidth
• DisplayPort 1.2 Capable with 4K Video Throughout
• Daisy-chain up to 12 Devices (6 devices per port)

Daisy-chain Multiple Devices
Support for DisplayPort 1.2 makes Thunderbolt™ 3 a must have for any enthusiast. The GIGABYTE Thunderbolt™ ready motherboards are able to support two displays in 4K resolution at 60 FPS or one display in 5K resolution. In addition, Thunderbolt™ 3 over USB Type-C™ has revolutionary industry-first features such as Power Delivery 2.0, and the ability to daisy-chain up to 12 devices thanks to the dual USB Type-C™ ports.

Support

200 Series
(Only support PCH PCIe x4 slot) Z270X-Gaming K7 Z270X-Gaming 5 Z270X-Gaming K5 Z270X-Ultra Gaming
Z270-Gaming 3 Z270-Gaming K3 Z270MX-Gaming 5 Z270X-Designare
Z270X-Gaming SOC H270-Gaming 3 Z270X-UD3 Z270XP-SLI

X99 Series
(Only support PCH PCIe x4/x8/x16 slot) X99-Ultra Gaming X99-Phoenix SLI X99-Designare EX
