Gigabyte Pb500 Power Supply 500W 80 Plus Bronze 3Yr Wty Gp-Pb500-Ms

Rated /5 based on customer reviews

SKU: 275778

Brand: Gigabyte

Manufacturer Link

MPN: GP-PB500-MS

Manufacturer Product Link

Warranty: 1 Year Manufacturer's return to base

Availability: Preorder 2-3 weeks

Freight Estimate:

$75.00
Buy Now And Earn Reward Points!
Qty:

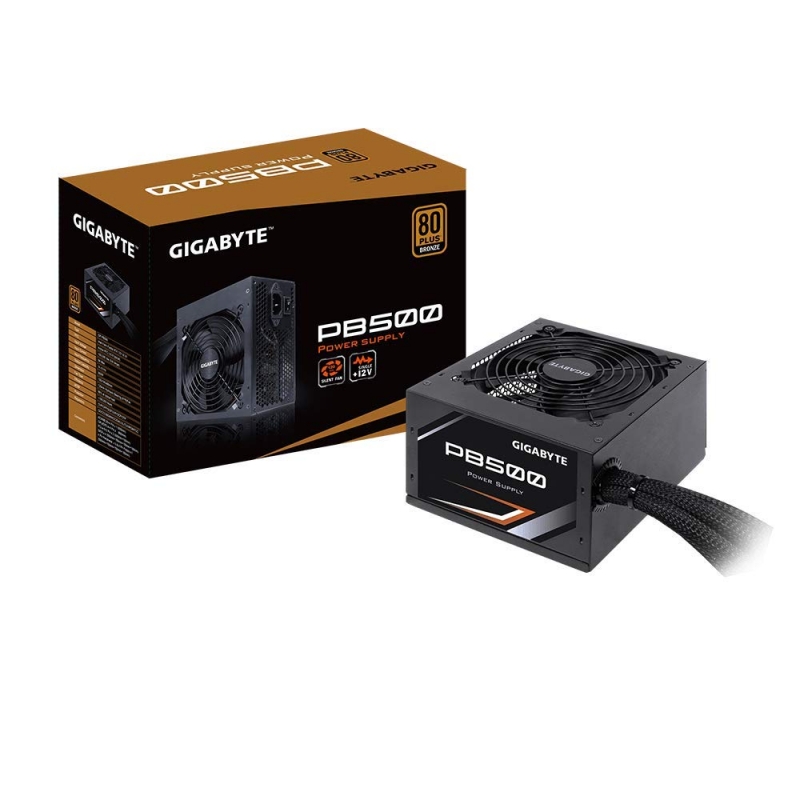

GIGABYTE PB500 Power Supply

The PB500 is a 500W power supply built for powerful desktops. Certified for 80 Plus Bronze standard, it has a maximum efficiency of 86% for reduced power waste and less noise. The single +12V rail provides stable, robust power output for high-end graphics card and CPU. It’s equipped with a 120mm silent fan that operates quietly and has long lifespan and excellent stability.

FEATURES

80 Plus Bronze Certified

80 Plus Bronze certified ensures better power efficiency and less power waste, which helps reduce the heat and fan noise. PB500 can have up to 86% efficiency. (80 Plus Bronze qualification is 85%)



Reliable Mesh Braided Cable

PB500 provides the best solution for the system builds. The mesh braided cable reduces clutter and improves airflow in the case.



Single +12V Rail

Single +12V rail provides the best power output, stability and compatibility for the hardware. And it is the best design for installation.



120mm Silent Fan

120mm silent fan optimizes noise reduction and thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer lifespan.

DIMENSIONS


  • Model
    PB500
  • Type
    Intel Form Factor ATX 12V v2.31
  • PFC
    Active PFC(>0.9 typical)
  • Input Voltage
    100-240 Vac(full range)
  • Input Current
    8A Max
  • Input Frequency
    50-60Hz
  • Output Capacity
    500W
  • Dimension
    150x140x86mm
  • Fan Type
    120mm Hydraulic Bearing(HYB)Fan
  • Efficiency
    86% at typical load
  • MTBF
    >100,000 hours
  • Protection
    OVP/OPP/SCP/UVP/OCP/OTP
  • Regulatory
    CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC
  • Connectors
    ATX/MB 20+4 Pin x 1 (600mm)
    CPU/EPS 4+4 Pin x 1(600mm)
    PCI-e 6+2 Pin x 2 (500mm+150mm)
    SATA x 4 (500mm+150mm+150mm+150mm)
    4 Pin Peripheral x 3 & 4 Pin Floppy x 1
    (500mm+150mm+150mm+150mm)
