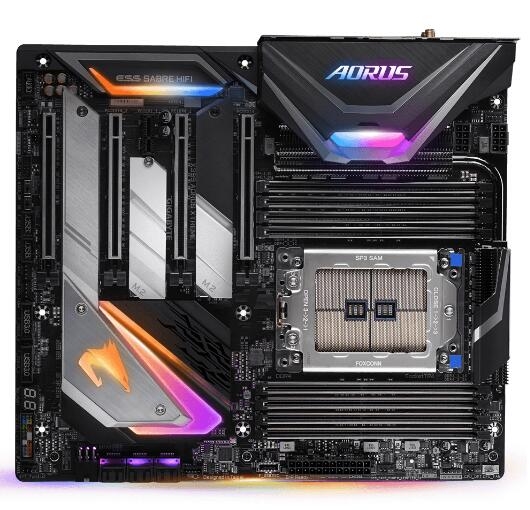

main product photo

Gigabyte X399 Aorus Extreme Mn Tr4 8xddr4 6xsata 3xm.2 Usb-c E-atx 3yr Wty Ga-x399-aorus-xtreme

SKU
270636
Brand
Gigabyte
Manufacturer Link
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base

No Longer Available

$0.00
Buy Now And Earn 0 Reward Points!
Add to Compare
AMD X399 AORUS Motherboard with 10+3 IR Digital PWM, Dual Intel® GbE LAN + AQUANTIA® 10GbE BASE-T LAN, Triple M.2 with Triple Thermal Guard, ALC1220-VB + ESS 9118 Audio, Intel® Dual Band 802.11ac WIFI, NanoCarbon Base Plated and I/O Shield Armor

　
  • Supports AMD 2nd Generation Ryzen™ Threadripper™ and 1st Generation Ryzen™ Threadripper™ Processors
  • Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs, Up to 3600MHz+(OC)/ 3466MHz+(OC)
  • Server-Class Digital Power PWM Design & Ultra Durable™ Solid Pin Power Connectors
  • Cutting-edge Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe
  • 4-Way Graphics Support with Dual Armor and Ultra Durable™ Design
  • Triple Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Triple Thermal Guard
  • Dual Intel GbE LAN with cFosSpeed Internet Accelerator + AQUANTIA® 10GbE BASE-T LAN
  • ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with ESS 9118 SABRE HiFi DAC
  • Intel® Dual Band 802.11ac WIFI + Bluetooth 4.2
  • RGB FUSION with Multi-Zone Digital LED Light Show Design, Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Precise Digital USB Fuse Design for Stronger Protection
  • Ultra Durable™ NanoCarbon Base Plate & I/O Shield Armor
  • Rear Power/Reset/Clear CMOS Buttons
  • APP Center Including EasyTune™ and Cloud Station™ Utilities

The falcon utilizes its powerful wings to soar through the skies and lock down its prey. The AORUS Core takes inspiration from the falcon’s aerodynamic wings, incorporating a multi-layered design which features wing shaped contours and also resembles the falcon’s high velocity ascension and dive through the skies. With sleek and metallic armor, the AORUS Core symbolizes advancement in technology with its futuristic style.

X399 AORUS XTREME stays faithful to AORUS design principles with the contour of its armor resembling the falcon’s dominant ascension into the skies, capturing the prowess and attitude of the falcon in flight. The LED zone on the I/O armor can be likened to the windshield of futuristic spacecrafts, symbolizing advancement and an eye into the future of technology.
Overwhelming Power.
Indisputable Supremacy.
Unrestrained Potential.

The AORUS X399 enthusiast motherboard with AMD Ryzen™ Threadripper™ Processor. Do everything, do it all at the same time, and do it without sacrificing responsiveness. Render. Stream. Compile. Encode. Work or Play. Real-World Productivity or Virtual Reality Entertainment. The AORUS X399 enthusiast motherboard has the power to overwhelm your most daunting workloads.

Supports 2nd Gen Ryzen™ Threadripper™ CPUs

With up to 32 cores, the 2nd Generation of AMD Ryzen™ Threadripper™ processor can command 64 threads, the most multi-processing power that has ever been unleashed on a consumer desktop. Overwhelm your workloads with 64MB of L3 cache, without sacrificing.

Quad-Channel DDR4 for devastating memory bandwidth, 64 lanes of incredible PCIe Gen3 connectivity, and native USB 3.1 Gen2 10Gb/s support on a chipset. With every processor multiplier-unlocked to be configured as you see fit, GIGABYTE X399 AORUS XTREME is perfectly designed to support the 2nd Generation Ryzen™ Threadripper™ 250W processor to offer you the latest advancements in motherboard technology.
　

Cutting-edge VRM Thermal Design
All Advanced Thermal Technology
X399 AORUS XTREME uses all advanced thermal technology, including Dual-Fan, Fins-Array Heatsink, Direct Touch Heatpipe, NanoCarbon Base Plate, while providing ultimate MOSFET cooling performance for content creators, enthusiasts, overclockers and professional gamers.
Direct Touch Heatpipe & Fins-Array Heatsink with High Thermal Conductivity Pad
  • X399 AORUS XTREME uses Fins-Array Heatsink which increases the heat dissipation area by 300% compared to traditional heatsinks of the same size. Direct Touch Heatpipe helps transfer heat from MOS to heatsink and fins.
  • By using a high 5 W/mK thermal conductivity pad, it can transfer 2.7x more heat than traditional thermal pads in the same time period.
4-Way Graphics with Premium 48 PCIe Lanes Bandwidth
AORUS X399 motherboards feature a unique PCI Express design that utilizes 100% of all 48 lanes from the CPU when in a 4-Way or 3-Way graphics configuration providing the full bandwidth available and provide the best graphics bandwidth possible to the user.
Free NVMe RAID Support
NVMe RAID for AMD Ryzen™ Threadripper™ platform is now supported for free. By combining multiple NVMe SSDs together into a RAID 0, 1, or 10 array, it is possible to greatly enhance disk performance or data integrity. With a single GPU in the system, up to 8 NVMe SSDs array can be supported by AORUS X399 motherboards.
AQUANTIA® 10GbE BASE-T Networking
Next Generation Multi-Gig Gaming
The AQUANTIA ® AQC107 is a high-performance, backward compatible with 10GBASE-T/ 5GBASE-T/ 2.5GBASE-T/ 1000BASE-T/ 100BASE-TX Ethernet Controller which is able to provide up to 10 GbE network connectivity, with 10 times faster transfer speeds compared to general 1GbE networking and is perfectly designed for media centers, workstations and gamers.
Multi-Gigabit Support
• Ultimate online gaming experience with faster connection speed
• Backward compatible with 5/2.5/1Gbps network
• No re-wiring needed

CPU
SocketTR4:
AMD Ryzen™ Threadripper™ processor
(Please refer "CPU Support List" for more information.)
Chipset
AMD X399
Memory
8 x DDR4 DIMM sockets supporting up to 128 GB of system memory
4 channel memory architecture
Support for DDR4 3600+*(O.C.) / 3466+(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
* Recommend to use a 1st Gen. Ryzen™ Threadripper™ processor to achieve 3600MHz (O.C.) speed.
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Audio
Realtek® ALC1220-VB codec
ESS9118EQ chip
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
2 x Intel® GbE LAN chips (10/100/1000 Mbit)(LAN1)(LAN2)
1 x Aquantia GbE LAN chip(10 Gbit/5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit)(LAN)
Wireless Communication module
Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
Support for 11ac wireless standard and up to 867 Mbps data rate
* Actual data rate may vary depending on environment and equipment.
Expansion Slots
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
(The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
1 x PCI Express x1 slot
(The PCIEX1_1 slot conforms to PCI Express 2.0 standard.)
Storage Interface
2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M) (M2Q)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2P)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Multi-Graphics Technology
Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies
Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies
USB
CPU:
8 x USB 3.1 Gen 1 ports on the back panel
Chipset+ASMedia® USB 3.1 Gen 2 Controller:
1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header
Chipset:
1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
4 x USB 3.1 Gen 1 ports available through the internal USB headers
4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x OC PEG power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
2 x system fan/water cooling pump headers
2 x digital(addressable) LED strip headers
2 x digital(addressable) LED strip power select jumpers
2 x RGB (RGBW) LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
2 x USB 3.1 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x BIOS switch
1 x DualBIOS™ switch
2 x temperature sensor headers
1 x Clear CMOS jumper
Back Panel Connectors
1 x power/reset button
1 x Clear CMOS button
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red)
8 x USB 3.1 Gen 1 ports
3 x RJ-45 ports
2 x SMA antenna connectors (2T2R)
1 x optical S/PDIF Out connector
5 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
Smart Survey
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install
Bundle Software
Norton® Internet Security (OEM version)
cFosSpeed
XSplit Gamecaster + Broadcaster (12 months license)
Operating System
Support for Windows 10 64-bit
Form Factor
E-ATX Form Factor; 30.5cm x 26.9cm
Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
