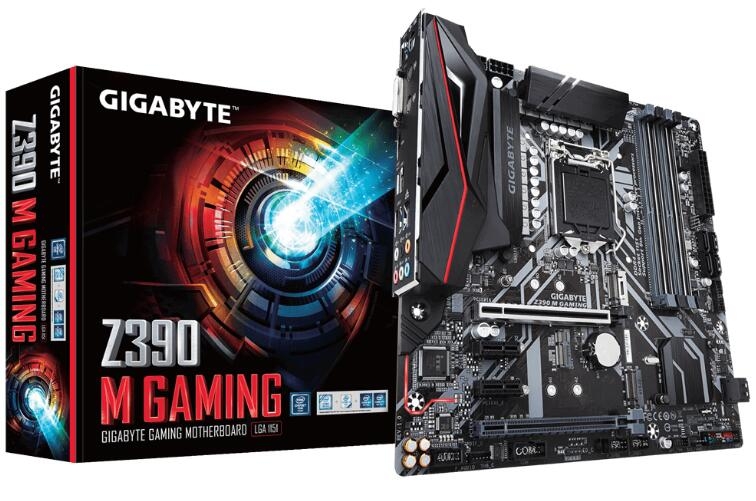

Gigabyte Z390 M Gaming Mb 1151 4xddr4 6xsata 2xm.2 Usb-c Uatx 3yr Ga-z390m-gaming

Rated 4.8/5 based on 4 customer reviews

SKU: 270645

Brand: GIGABYTE

Manufacturer Link

MPN: GA-Z390M-GAMING

Manufacturer Product Link

Warranty: 1 Year Manufacturer's return to base

Availability: In stock

Freight Estimate:

Regular Price: $307.00

Special Price $267.00

Buy Now And Earn Reward Points!
Qty:
Intel Z390 GAMING Motherboard with 10+2 Digital PWM Design, 2-Way CrossFire™ Multi-Graphics, USB 3.1 Gen2 Type-A + Type-C, Intel GbE LAN with cFosSpeed, Smart Fan 5, Dual M.2, Dual Armor with Ultra Durable™ Technology, CEC 2019


  • Supports 9th and 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4
  • New 10+2 Phases Digital PWM Design
  • High Quality Audio Capacitors
  • Dual Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface
  • Multi-Way Graphics Support with PCIe Armor and Ultra Durable™ Design
  • Intel® Native USB 3.1 Gen2 Type-A + Type-C
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • Intel® Gigabit LAN with cFosSpeed
  • Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
  • Support RGB Lighting Effect in Full Colors
  • CEC 2019 Ready, Save Power With a Simple Click
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
  • Intel® Optane™ Memory Ready
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.
CONNECTIVITY



Intel® GbE LAN with cFosSpeed Internet Accelerator Networking

Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.




The Industry's Leading LAN Static-Electricity & Surge Protection
GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.
Dual-Mode M.2 Slot Design
Support PCIe NVMe + SATA SSDs
GIGABYTE Motherboards are built with dual M.2 slots. With a PCIe NVMe + SATA dual-mode design on M.2 slots. This configuration is designed for flexibility and adaptation to fit most users' and gamers' requests.


PCIe / SATA Dual Mode Support
Learn more about CONNECTIVITY


COOLING




Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

CPU
Chipset
Memory
Onboard Graphics
Audio
LAN
Expansion Slots
Storage Interface
Multi-Graphics Technology
USB
Internal I/O Connectors
Back Panel Connectors
I/O Controller
H/W Monitoring
BIOS
Unique Features
Bundle Software
Operating System
Form Factor
Remark
Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Intel® Z390 Express Chipset
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Integrated Graphics Processor-Intel® HD Graphics support:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
Realtek® ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Intel® GbE LAN chip (10/100/1000 Mbit)
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
1 x M.2 Socket 1 connector for an Intel® CNVi (CNVI)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Chipset:
1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports available through the internal USB headers
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x RGB LED strip header
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (SPI_TPM) header
1 x Thunderbolt™ add-in card connector
1 x serial port header
1 x Clear CMOS jumper
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI ports
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red)
4 x USB 3.1 Gen 1 ports
1 x RJ-45 port
6 x audio jacks
iTE® I/O Controller Chip
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
*Whether the fan speed control function is supported will depend on the cooler you install.
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
Ambient LED
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
Smart Survey
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install
Norton® Internet Security (OEM version)
cFosSpeed
Support for Windows 10 64-bit
Micro ATX Form Factor; 24.4cm x 24.4cm
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
