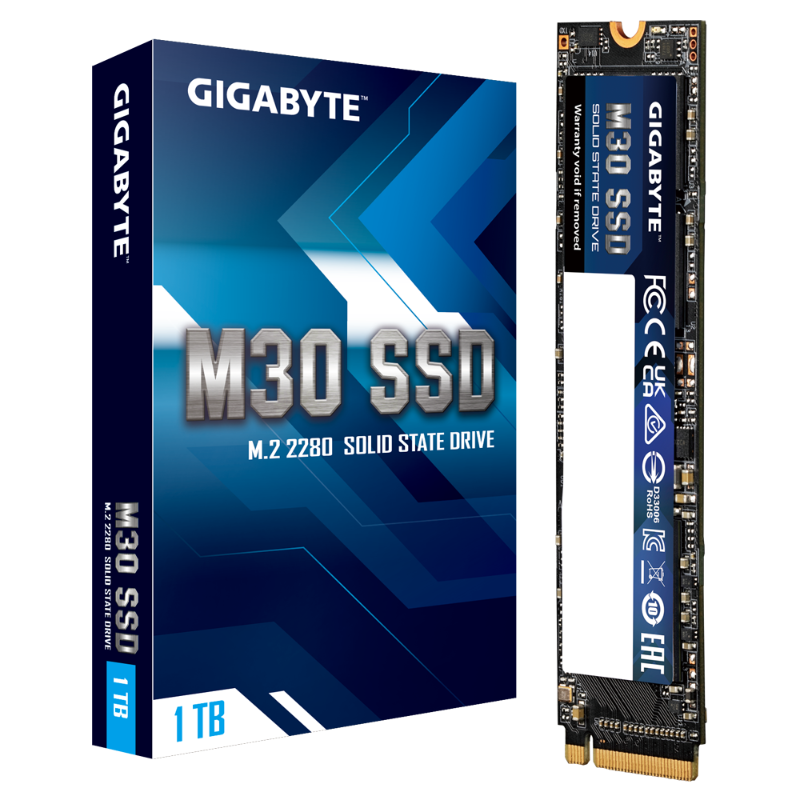

GIGABYTE M30 NVMe M.2 PCIe3 SSD, 1TB, UP TO READ 3500MB/s, WRITE 3000MB/s, 5YR WTY GP-GM301TB-G

SKU
369298
Brand
Warranty
Standard Manufacturer's Warranty

No Longer Available

$0.00
Buy Now And Earn 0 Reward Points!
  • Interface
    PCIe 3.0x4, NVMe 1.3
  • Form Factor
    M.2 2280
  • Total Capacity
    1TB
  • Warranty
    Limited 5-years or 650TBW
  • NAND
    3D TLC NAND Flash
  • External DDR Cache
    DDR3L 2Gb
  • Sequential Read speed
    Up to 3500 MB/s
  • Sequential Write speed
    Up to 3000 MB/s
  • Random Read IOPS
    up to 308K
  • Random Write IOPS
    up to 332K
  • Dimension
    22 x 2.3 x 80 mm
  • Mean time between failure (MTBF)
    2 million hours
  • Power Consumption (Active)
    Average: R: 5.9W, W:5W
  • Power Consumption (Idle)
    L0/L0s/L1: 900mw
    L1.2 < 3mw
  • Temperature (Operating)
    0°C to 70°C
  • Temperature (Storage)
    -40°C to 85°C
  • Note
    * Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
    * Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark v.7 and IOmeter 1.1.0.
    * Speeds based on internal testing. Actual performance may vary.
    * TBW (Terabyte Written):Terabytes Written" is the total amount of data that can be written into an SSD before it is likely to fail.
    * 1GB = 1 billion bytes. Actual useable capacity may vary.
    * 5 years or 650TBW, whichever comes first.
