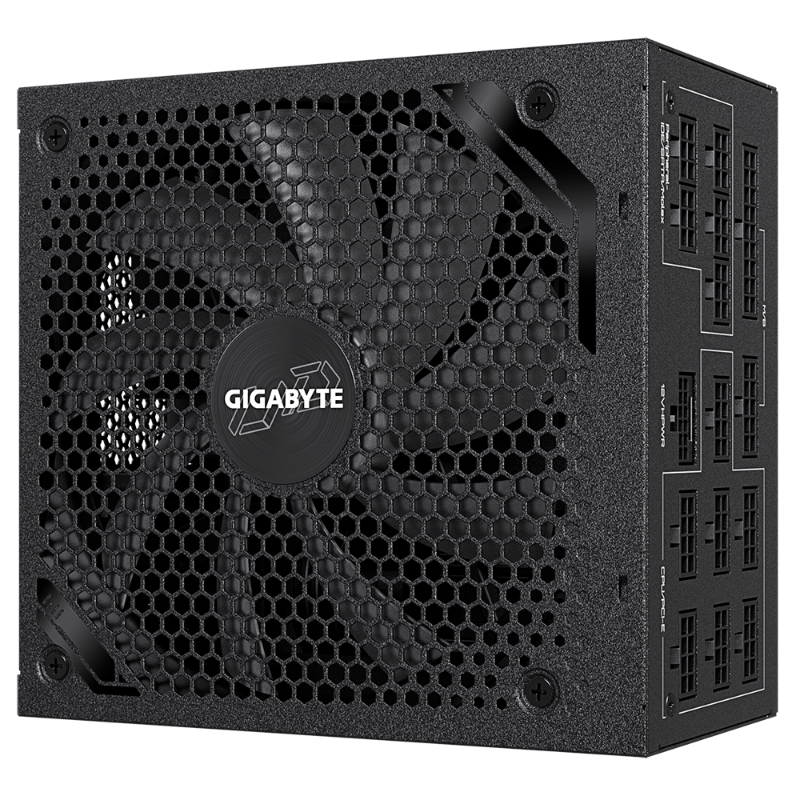

GIGABYTE UD1300GM AORUS POWER SUPPLY, 1300W, 80 PLUS GOLD, MODULAR, 10YR WTY GP-UD1300GM-PG5
SKU
400571
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$0.00
Buy Now And Earn 0 Reward Points!
KEY FEATURE Ultra Durable Main Japanese capacitors Enhanced thermal solution 140mm smart hydraulic bearing (HYB) fan OVP/OPP/SCP/UVP/OCP/OTP protection Support PCIe Gen 5.0 graphics card Support Intel ATX 3.0 standard 80 PLUS Gold certified Fully modular design Compact size 10 years warranty (Adjusted according to different regions)
| Model | GP-UD1300GM PG5 |
| Type | Intel Form Factor ATX 12V v3.0 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 15-6.5A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 1300W |
| Dimension | 150 x 160 x 86 mm |
| Fan Type | 140mm Hydraulic Bearing(HYB)fan |
| 80 PLUS | Gold |
| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All black |
| Connectors | ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 650mm*2 PCIe 16 Pin x 1: 700mm*1 PCIe 6+2 Pin x 8 : 650mm+150mm3, 650mm2 SATA x 12 : 650mm+150mm+150mm+150mm*3 4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+150mm+150mm+150mm*2 |
GIGABYTE UD1300GM AORUS POWER SUPPLY, 1300W, 80 PLUS GOLD, MODULAR, 10YR WTY
