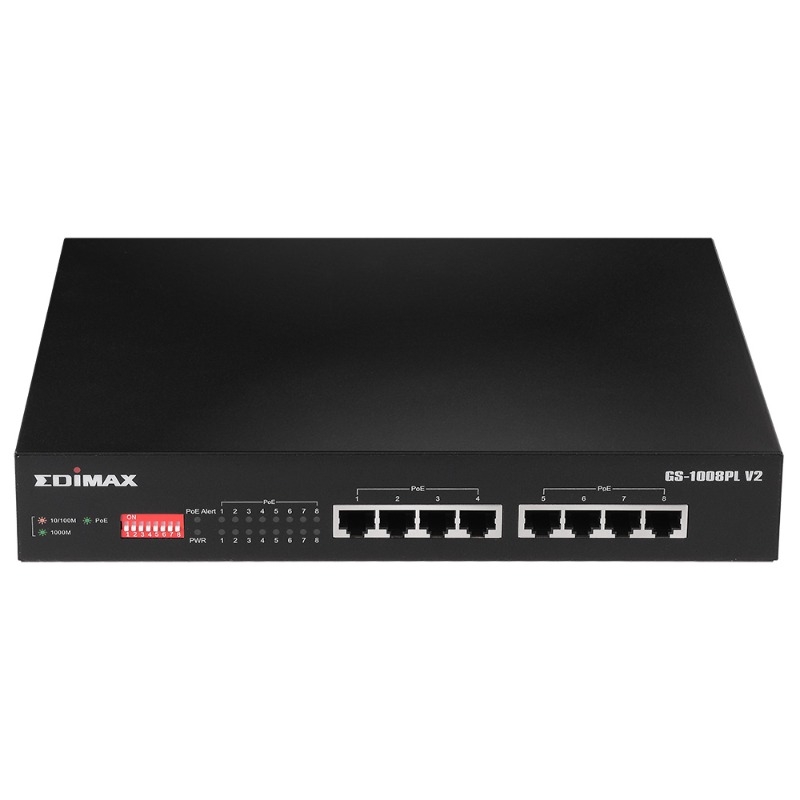

Edimax POE Switch: 8-Port Gigabit Ethernet PoE+ Switch with DIP Switch (total: 70W) Long Range GS-1008PL V2
SKU
390112
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$0.00
Buy Now And Earn 0 Reward Points!
| HARDWARE | |
| Ports | 8 x RJ-45 10/100/1000Base-T PoE+ ports |
| Transmission Method | Store and forward |
| LED Indicators | Power: Green LED LNK/ACT: Green LED (Port 1 – Port 8) PoE: Green LED (Port 1 – Port 8) PoE Alert: Green LED (PoE overload alarm) |
| DIP Switch | PoE Extend, VLAN, QoS |
| Power Input | 100-240V AC, 50-60Hz, internal power supply |
| Total Power Supply | 80W |
| Mounting | Desktop / Rack-mount |
| Housing | Metal |
| Fan | Fanless |
| Dimensions | 265 (W) x 184 (D) x 44 (H) mm |
| Weight | 1609g |
| PERFORMANCE | |
| Switching Capacity | 16Gbps |
| MAC Address | 4K |
| Buffer Memory | 1.5Mb |
| Jumbo Frames | 9K (Bytes) |
| Filtering / Forwarding Rates | 1000Mbps port - 1488,000pps 100Mbps port - 148,800pps 10Mbps port - 14,880pps |
| POWER OVER ETHERNET | |
| Standard | IEEE 802.3af IEEE 802.3at |
| Power Output | Up to 30W per port |
| Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 70W |
| Long Range | DIP switch ON to support PoE with long range to 200 meters at 10Mbps |
| Backfeed Protection | Built-in per port |
| OTHERS | |
| Standards | IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE802.3ab 1000BASE-T IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet Plus (PoE+) IEEE 802.3x Full-duplex and flow control IEEE 802.3az Energy efficient Ethernet |
| Environmental Condition | Temperature
Operating: 32~104°F (0~40°C)
Humidity: (Non-condensing)
Storage: -40~158°F (-40~70°C) Operating: 10 ~ 90%
Storage: 5 ~ 90% |
| Certifications | FCC, CE, LVD |
