Vertiv LIEBERT GXT5 ON-LINE 3000VA 230V LCD PF1.0 2U EXTENDED RUN RACK/TOWER RAIL KIT BUNDLED GXT5-3000IRT2UXL
No Longer Available

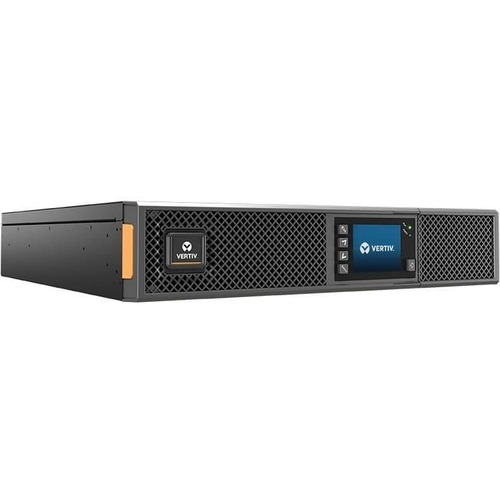

The Vertiv Liebert GXT5 UPS, with a capacity of 3000VA/3000W, is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the Vertiv Liebert GXT5 UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support as wide range of power environment including 200/208/220/230/240V user configurable AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. The UPS design includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. The unit includes a rack mounting hardware kit and base for tower installation in open environments. It has a three-year factory warranty. The Vertiv Liebert GXT5 offers premium power protection for critical infrastructure in centralized and edge applications.
Status Indicators | Colored Graphic LCD Display:
|
Application/Usage | Network Closet |
Mission Critical Equipment | |
Edge Computing | |
Server | |
Network Workstation | |
Large Network Peripheral | |
VoIP | |
Protection Type | No Load |
EMI | |
Low Battery | |
Excessive Low Battery | |
Output Over Current | |
High/Low Voltage | |
Under Current | |
Discharge | |
Output Over Voltage | |
Transient | |
Fuse | |
Short Circuit | |
EMI / RFI | |
Output Short Circuit | |
Spike | |
Inrush Current | |
Deep Discharge | |
Soft Start | |
Line Noise | |
Dataline Surge | |
Quad | |
Power Failure | |
Over Voltage | |
Over Current | |
Temperature | |
Thermal Overload | |
Over Loading | |
AC Noise | |
Black Out | |
Sag | |
Brownout | |
AC Surge | |
RFI | |
Over Temperature | |
Harmonics | |
Over Power | |
Surge | |
Over Charge | |
Under Voltage | |
Electric Shock | |
Noise | |
Lightning | |
Electronic Current Limit | |
Cord Length | 3.05 m |
Phase | Single Phase |
EMI/RFI Noise Filter | Yes |
Transfer Time | 0 ns |
Network Management | SNMP/HTTP Remote Monitoring |
TAA Compliant | No |
Energy Star | Yes |
Sound Emission | 48 dB |
Maximum Operating Temperature | 40°C |
Maximum Operating Elevation | 3 km |
Storage Temperature | -15°C - 40°C |
VGA | No |
Network (RJ-45) | Yes |
Modem (RJ-11) | No |
Serial Port | Yes |
USB (HID Compliant) Port | Yes |
Weight (Approximate) | 28.50 kg |
Colour | Black |
Form Factor | Rack/Tower |
Rack Height | 2U |
Height | 85 mm |
Width | 430 mm |
Depth | 540 mm |
Product Type | Dual Conversion Online UPS |
Manufacturer Part Number | GXT5-3000IRT2UXL |
Manufacturer Website Address | http://www.vertiv.com/ |
Manufacturer | Vertiv |
Product Model | GXT5-3000IRT2UXL |
Product Name | GXT5 UPS - 3000VA/3000W 230V | Online Rack Tower |
Product Series | GXT5 |
Brand Name | Liebert |
Product Condition | New |
Circuit Breaker | Yes |
Output Voltage | 208 V AC |
200 V AC | |
220 V AC | |
240 V AC | |
230 V AC | |
Load Capacity | 3 kVA/3 kW |
Waveform Type | Pure Sine Wave |
Input Voltage Range | 115 V AC 288 V AC |
Input Frequency | 70 Hz |
Battery Life | 5 Year |
Battery Chemistry | Lead Acid |
Hot Swappable | Yes |
Battery Size | 12V |
Battery Capacity | 9000 mAh |
Hot Pluggable | Yes |
Number of Batteries | 6 |
Backup/Run Time (Half Load) | 10.80 Minute |
Backup/Run Time (Full Load) | 3.30 Minute |
Battery Characteristics | Valve-regulated, Non-spillable |
Replaceable Battery | Yes |
DC System Voltage | 72 V DC |
Typical Battery Recharge Time | 3 Hour |
