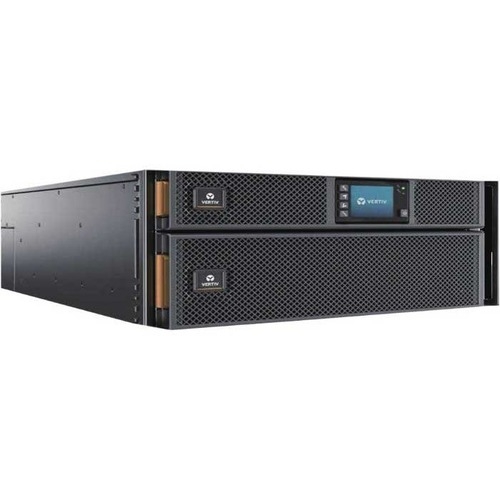

Vertiv Liebert GXT5 UPS - 6kVA - Online - 230V Single Phase - 5U Rack/Tower - Power Factor 1.0 - Rail Kit & RDU101 Web Card Bundled - Bypass POD Incl - 3 Years Warranty GXT5-6000IRT5UXLN
No Longer Available
Liebert GXT5 UPS - 6kVA - Online - 230V Single Phase - 5U Rack/Tower - Power Factor 1.0 - Rail Kit & RDU101 Web Card Bundled - Bypass POD Incl - 3 Years Warranty
The Vertiv Liebert GXT5 uninterruptible power supply (UPS) protects critical equipment against outages and every type of power disturbance. This 6kVA online double conversion UPS offers continuous power conditioning in centralized and edge locations. With high power factor (1.0), it allows more connected loads saving space and costs. This tower/rack mount UPS has a built-in Vertiv RDU101 communications card for remote monitoring to help you make more informed decisions and faster event resolution. With the free Vertiv Power Insight software, you can consolidate your view of up to 100 distributed UPS units providing simple notification of status and events in a single pane of glass. This 230V in/ 230 out single phase UPS has scalable runtime options with matching external battery cabinets to give extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with an intuitive gravity sensing full-color LCD display.
- Offers reliable, easy-to-manage power protection and battery backup with 6kVA (6kW) capacity.
- UNITY Power Factor (1.0) for more usable power and more connected loads to save space and costs.
- Includes a built-in Vertiv RDU101 network communications card for remote management.
- Vertiv 3-year warranty with optional 2-year extension for a total of 5 years in coverage.
- It is ENERGY STAR 2.0 certified with higher efficiency, for energy savings and improved reliability.
| Status Indicators |
LED/Full Color Graphic LCD |
| Limited Warranty | 3 Year |
| Sound Emission | 55 dB |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3 km |
| Storage Temperature | -15°C - 40°C |
| VGA | No |
| Network (RJ-45) | Yes |
| Modem (RJ-11) | No |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Weight (Approximate) | 70.80 kg |
| Form Factor | Rack/Tower |
| Height | 217 mm |
| Width | 430 mm |
| Depth | 630 mm |
| Product Color | Black |
| Application/Usage | Healthcare |
| Mission Critical Equipment | |
| Business | |
| Retail Building | |
| IT Equipment | |
| Edge Computing | |
| Banking | |
| Telecommunication | |
| IOT Device | |
| Network | |
| Finance | |
| Bypass Switch | Internal |
| Automatic & Manual | |
| Emergency Power OFF | Yes |
| Plug/Connector Type | Hardwired |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| Terminal Block | |
| EMI/RFI Noise Filter | Yes |
| Transfer Time | 0 ns |
| Receptacle Detail | 2 x IEC 60320 C19 |
| 6 x IEC 60320 C13 |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | REACH |
| RoHS | |
| TAA Compliant | No |
| Energy Star | Yes |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | GXT5-6000IRT5UXLN |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Packaged Quantity | 1 |
| Manufacturer | Vertiv |
| Product Model | GXT5-6000IRT5UXLN |
| Product Name | GXT5 UPS-6kVA/6kW/230V|Online Rack Tower Energy Star |
| Product Series | GXT5 |
| Brand Name | Liebert |
| Product Condition | New |
| Battery Life | 5 Year |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Hot Pluggable | Yes |
| Number of Batteries | 16 |
| Backup/Run Time (Half Load) | 14.50 Minute |
| Backup/Run Time (Full Load) | 5.50 Minute |
| Battery Characteristics | Valve-regulated, Non-spillable |
| Replaceable Battery | Yes |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| 208 V AC | |
| 220 V AC | |
| 200 V AC | |
| 240 V AC | |
| Load Capacity | 6 kVA/6 kW |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 115 V AC - 288 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
