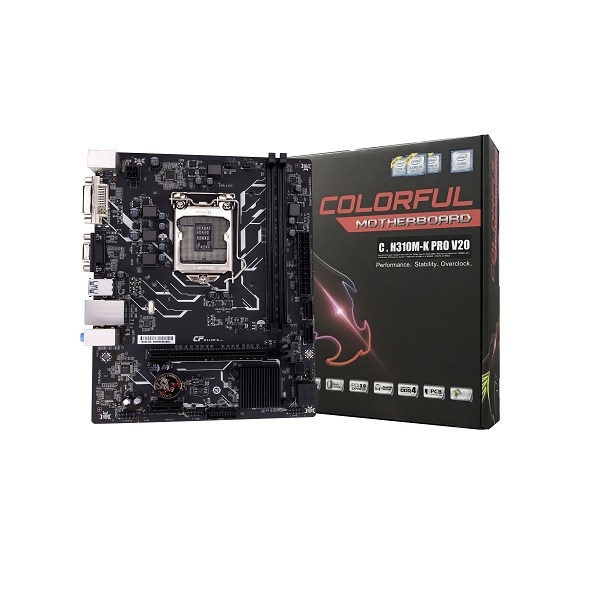

Colorful H310m-k Pro V20 Intel H310 Matx Motherboard Cf-110510196101

Name: Colorful H310m-k Pro V20 Intel H310 Matx Motherboard Cf-110510196101
Brand: Colorful
SKU: 266457
Availability: OutOfStock

SKU

266457

Brand

Colorful

Warranty

1 Year Manufacturer's return to base

No Longer Available

$0.00

Buy Now And Earn 0 Reward Points!

◆Supports 8th Generation Intel® Core™ Processors (Socket 1151)

◆Supports Dual Channel DDR4 2133 /2400/2666(XMP)MHZ memory

◆4*SATA3.0 ports
　

◆RTL8111H 1000M LAN
◆Realtek ALC662 6-ch audio chipset
◆VGA+DVI ports
◆4*USB2.0 and 4*USB3.0 ports
◆Audio isolated LED light

◆Support S3、S4、S5 wake-up

◆Support phone call startup、timing boot、network S5 wake-up










Motherboard_Model	C.H310M-K PRO V20
Chipset	H310
Processor	support Intel LGA 1151 processorsTDP:65W
Memory	2 DIMM slots，support DDR 4 dual channel 2133 /2400/2666(XMP) MHZ memory slot
Graphics	1*PCI Express3.0X16 slot
Board_IO	2PS2 ports，2USB2.0、2USB3.0 ports,1RJ45 lan，3audio ports，1VGA、1DVI ports; onboard： 1USB2.0、1*USB3.0 headers
Expansion_Slots	1*PCI Express2.0 X1 slot
SATA_Ports	4*SATA3.0 6Gb/s ports
BIOS	128M UEFI
Power_Management
Hardware_Monitor
LAN	RTL8111H 1000M LAN chipset
Audio	ALC662 6-channel audio chipset
Configuration	215 x 170 mm mATX
Warranty	3 years
