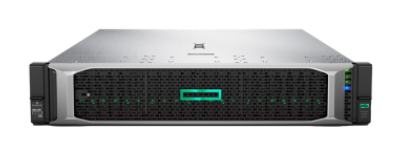

HPE ProLiant DL380 Gen10 4208 1P 32GB-R P816i-a NC 12LFF 800W RPS Server (P20172-B21)
HPE ProLiant DL380 Gen10 server with one Intel® Xeon® Silver 4208 processor, 16 GB dual rank memory, P816i-a storage controller with 4 MB cache and smart storage battery, 12 large form factor drive bays, one HPE Ethernet 1Gb 4-port 366FLR Adapter, one LFF Easy Install Rail Kit, one Cable Management Arm Kit, and two 800W power supplies
Processor Core Available8, per processor
Processor Cache Installed11 MB L3
Memory TypeHPE DDR4 SmartMemory
NVDIMM TypeNot applicable
NVDIMM RankNot applicable
NVDIMM CapacityHPE Persistent Memory featuring Intel® Optane™ DC persistent memory not supported on this processor model
Network Controller1 HPE Ethernet 1Gb 4-port 366FLR FlexibleLOM Adapter (665240-B21) plus optional stand-up card *NOTE: No embedded networking
Remote Management SoftwareHPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (optional)
System Fan Features6 hot-plug, performance fans included
Power Supply Type2 HPE 800W Flex Slot Universal Hot Plug Low Halogen Power Supply Kit
Expansion Slots3 PCIe 3.0, for detailed descriptions reference the QuickSpecs
Storage Controller1 HPE Smart Array P816i-a/4GB with Smart Storage Battery and 1 HPE Smart Array S100i
Warranty Standard Statement3/3/3 - Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support
Processor NameIntel® Xeon® Scalable 4208 (8 core, 2.1 GHz, 11 MB, 85W)
Processor Number1
Processor Speed2.1 GHz
Standard Memory32 GB (1x 32 GB) RDIMM
Hard Drive Number (included)None ship standard, 12 LFF drives supported
Optical Drive TypeExternal support only
SecurityOptional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
Form Factor2U
Weight (imperial)32.6 lb
Weight (metric)14.76 kg
Product Dimensions (imperial)17.54 x 28.75 x 3.44 in
Product Dimensions (metric)44.55 x 73.03 x 8.74 cm
Detailed Product DescriptionHPE ProLiant DL380 Gen10 server with one Intel® Xeon® Silver 4208 processor, 16 GB dual rank memory, P816i-a storage controller with 4 MB cache and smart storage battery, 12 large form factor drive bays, one HPE Ethernet 1Gb 4-port 366FLR Adapter, one LFF Easy Install Rail Kit, one Cable Management Arm Kit, and two 800W power supplies
