OPTEX S3627A HX-40 PIR 12M 85DEG PET OUTDOOR-2YRS
SKU
403096
Brand
MPN
HX-40
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$205.00
Buy Now And Earn 205 Reward Points!

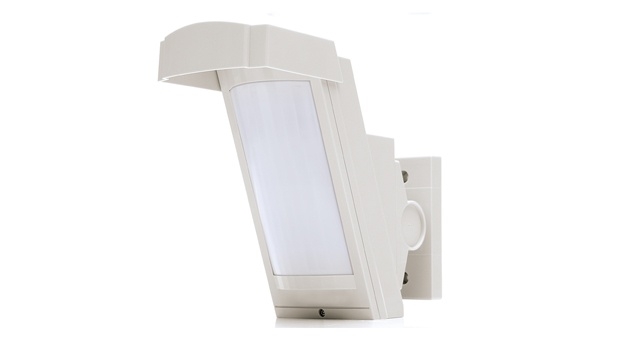

HX-40 High Mount Outdoor 12M 85 Degree PIR Detector
Features:
- Mounting height 2.5 m - 3 m
- Pet Immunity
- Intelligent AND detection logic
- Dual signal processing circuit
– Summer night compensation logic
– Advanced temperature compensation logic
- Vegetation sway analysis logic
- Double conductive shielding
- Ideal detection area setting
– adjustable detection length
– spot area flexible masking
- 180° angle adjustable bracket / hood
| Model | HX-40 |
| Detection method | Passive infrared |
| Coverage | 12 m 85° wide / 94 zones |
| PIR distance limit | 4 m, 5.5 m, 9 m, 12 m (13 ft, 18 ft, 30 ft, 40 ft.) |
| Power input | 9.5 – 18VDC |
| Detectable speed | 0.3 to 2.0 m/s |
| Sensitivity (selectable for each side individually) | Normal : 2.0°C at 0.6 m/s Extreme high : 1.0°C at 0.6 m/s |
| Current draw | 35 mA (max) at 12 VDC |
| Alarm period | 2.0 ±1 sec |
| Warm-up period | Approx. 60 sec (LED blinks) |
| Alarm output | Form C 28 VDC 0.2 A max |
| Tamper output | N.C. 28 VDC, 0.1 A max. N.C. open when cover is removed. |
| Trouble output | - |
| Aux input | N.C. 28 VDC, 0.1 A max |
| LED indicator | Red:Warm-up, Alarm |
| RF Interference | No alarm 10 V/m |
| Operating temperature | -20 – +60°C (-4 – +140°F) |
| Environment humidity | 95% max. |
| International protection | IP55 |
| Mounting | Wall (Outdoor, Indoor) |
| Mounting height | 2.5 - 3.0 m |
| Bracket adjust angle | Vertical: ±20° Horizon: ±95° |
| Weight | 600g |
