OPTEX HX-40RAM PIR 12M 85DEG PET ANTI-MASK BATT PWR OUTDOOR-2YRS HX-40RAM
SKU
407626
Brand
MPN
HX-40RAM
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$353.00
Buy Now And Earn 353 Reward Points!

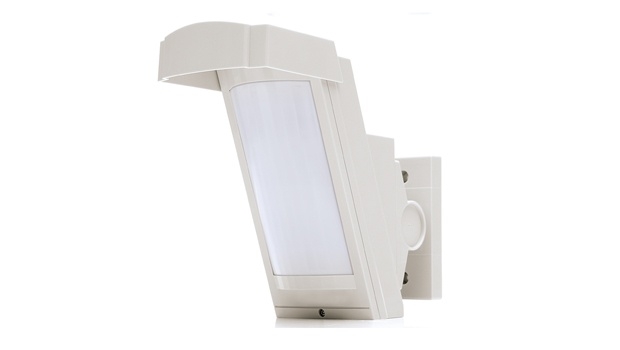

HX-40RAM High Mount Outdoor 12M 85 Degree PIR Battery Powered Detector with Anti-masking
Features:
- Mounting height 2.5 m - 3 m
- Pet Immunity
- Battery Powered
- Intelligent AND detection logic
- Dual signal processing circuit
– Summer night compensation logic
– Advanced temperature compensation logic
- Vegetation sway analysis logic
- Double conductive shielding
- Ideal detection area setting
– adjustable detection length
– spot area flexible masking
- 180° angle adjustable bracket / hood
| Model | HX-40RAM |
| Detection method | Passive infrared |
| Coverage | 12 m 85° wide / 94 zones |
| PIR distance limit | 4 m, 5.5 m, 9 m, 12 m (13 ft, 18 ft, 30 ft, 40 ft.) |
| Power input | 2.5 – 9VDC, 3 - 7.2VDC Lithium Battery, (CR123A x 3, CR2 x 3, 1/2AA x 3, 1-2AA x 6) |
| Detectable speed | 0.3 to 2.0 m/s |
| Sensitivity (selectable for each side individually) | Normal : 2.0°C at 0.6 m/s Extreme high : 1.0°C at 0.6 m/s |
| Current draw | 30 μA (standby) / 4 mA (max.) at 3 VDC |
| Alarm period | 2.0 ±1 sec |
| Warm-up period | Approx. 90 sec (LED blinks) |
| Alarm output | Form C - Solid State Switch - 10 VDC 0.01 A max |
| Tamper output | Form C. 28 VDC, 0.1 A max. changes when cover is removed |
| Trouble output | N.C./N.O. Selectable - Solid State Switch - 10 VDC 0.01 A |
| Aux input | N.C. 28 VDC, 0.1 A max |
| RF Interference | No alarm 10 V/m |
| Operating temperature | -20 – +60°C (-4 – +140°F) |
| Environment humidity | 95% max. |
| International protection | IP55 |
| Mounting | Wall (Outdoor, Indoor) |
| Mounting height | 2.5 - 3.0 m |
| Bracket adjust angle | Vertical: ±20° Horizon: ±95° |
| Weight | 600g |
