No Longer Available
For heaviest server duty
These three HDD backplanes are well-proven in extremely hard server duty. Even with highest transfer rates they run very smoothly. That’s why we recommend them for the demanding duty in RAID systems. Accordingly elaborate is the temperature control. The aluminium parts dissipate the heat. The 80-mm fan operates reliably and silently and the operating mode is easily adjusted. If high temperature is detected there are optical and acoustic warning signals. All moving parts are layed out for strongest strain. The trays and their locking mechanism are extremely fitting. They slide without resistance. The aluminium parts are electropolished.

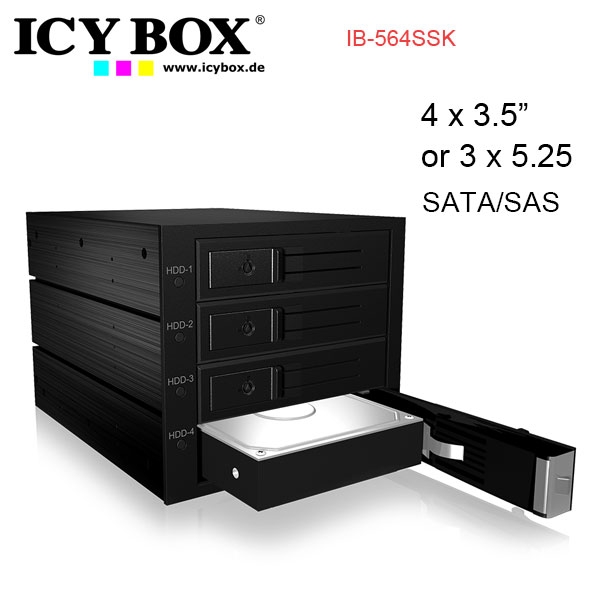

Backplane for 3x 5.25" bay
For 4x 3.5" SATA or SAS HDDs
1x 80x80 mm fan
HDD trays with lock to prevent accidental and unauthorized access
Stress resistant
The IB-56X Series is built for heavy duty. The best available materials were used in this enclosure which makes it the ideal 3.5" HDD solution for demanding environments. for additional security, a lock was added.
Cool & silent
The high quality metal dissipate the created heat by passive convection to the environment. The active convection is done using an 80 mm fan. The big fan swirls slowly which makes it quieter.
Always up to date
Up to four 3.5" SATA/SAS HDDs find a home in this backplane. Not even SAS hard disks have to stay out in the cold. Optical and auditory signals alert regarding the HDD and fan state. The temperature alarm signal can be set on three possibilities - 55° C, 60° C, 65° C.
IB-564SSK
56004
4250078161400
ICY BOX
Aluminium
Black
80x80 mm
3.5"
8.89 cm
No limit
Yes
Yes
3x SAS / SATA I/II/III
3x SATA I/II/III
Supports Windows & Mac
Power (blue), HDD Access (orange), On / Off, Alarm
Yes
2x Molex 4pin and 2x SATA Power Connector
Visual LED and audio alarm (temperature adjustable 55° C, 60° C, 65° C)
These three HDD backplanes are well-proven in extremely hard server duty. Even with highest transfer rates they run very smoothly. That’s why we recommend them for the demanding duty in RAID systems. Accordingly elaborate is the temperature control. The aluminium parts dissipate the heat. The 80-mm fan operates reliably and silently and the operating mode is easily adjusted. If high temperature is detected there are optical and acoustic warning signals. All moving parts are layed out for strongest strain. The trays and their locking mechanism are extremely fitting. They slide without resistance. The aluminium parts are electropolished.
The IB-56X Series is built for heavy duty. The best available materials were used in this enclosure which makes it the ideal 3.5" HDD solution for demanding environments. for additional security, a lock was added.
The high quality metal dissipate the created heat by passive convection to the environment. The active convection is done using an 60 mm fan. The big fan swirls slowly which makes it quieter.
Up to three 3.5" SATA/SAS HDDs find a home in this backplane. Not even SAS hard disks have to stay out in the cold. Optical and auditory signals alert regarding the HDD and fan state. The temperature alarm signal can be set on three possibilities - 55° C, 60° C, 65° C.
1x IB-564SSK, 4x SATA cables, 2x Keys, 8x Screws, 1x Manual
