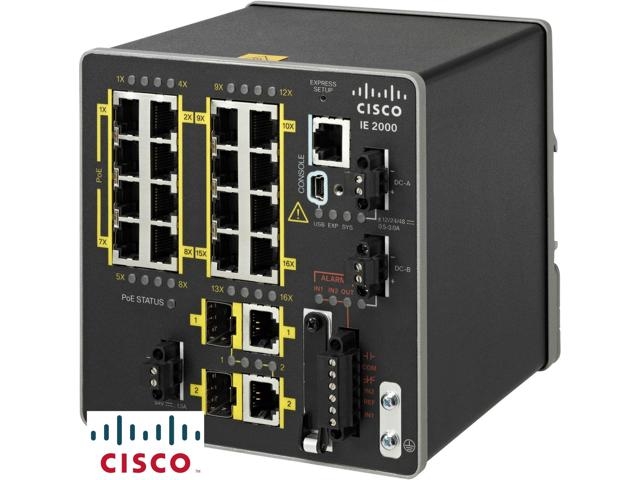

Cisco Ie 16 10/100,2 Fe Sfp+2 T/sfp Base 1588 Ie-2000-16tc-g-e

SKU
230467
Brand
Cisco
Manufacturer Link
MPN
IE-2000-16TC-G-E
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$4,519.00
Buy Now And Earn 4519 Reward Points!
Add to Compare

IE 16 10/100,2 FE SFP+2 T/SFP Base 1588

by Cisco
The Cisco® Industrial Ethernet 2000 (IE 2000) Series is a range of compact, industrially ruggedized access switches. IE 2000 series provide customers with ease of use, secure access, and industry leading convergence using Cisco Resilient Ethernet Protocol (REP). Multiple industries such as automotive, oil and gas, mining, transportation, and energy companies are all increasingly requiring IP based networks in their production areas. The newest IE 2000 additions have been designed to support access layer connectivity and to meet the increasing needs for security, voice, and video traffic across industrial networks.
Basic
Brand Name: Cisco
Ethernet Technology: Fast Ethernet
　 Gigabit Ethernet
Expansion Slot Type: SFP
Form Factor: Desktop
　 Rail-mountable
Layer Supported: 2
Manageable: Yes
Media Type Supported: Twisted Pair
Network Technology: 10/100/1000Base-T
　 10/100Base-TX
Number of Total Expansion Slots: 4
PoE (RJ-45) Port: No
Power Source: Power Supply
Product Family: IE-2000
Product Type: Ethernet Switch
Redundant Power Supply Supported: Yes
Stack Port: No
Total Number of Network Ports: 20
General Information
Brand Name: Cisco
Manufacturer Part Number: IE-2000-16TC-G-E
Manufacturer Website Address: http://www.cisco.com/c/en_au
Manufacturer: Cisco Systems, Inc
Product Model: IE-2000-16TC-G-E
Product Name: IE-2000-16TC-G-E Ethernet Switch
Product Series: IE-2000
Product Type: Ethernet Switch
I/O Expansions
Expansion Slot Type: SFP
Number of SFP Slots: 4
Number of Total Expansion Slots: 4
Shared SFP Slot: Yes
Interfaces/Ports
Bypass: No
LRE Port: No
Management Port: Yes
Modular: No
Number of Network (RJ-45) Ports: 16
Stack Port: No
Token Ring Port: No
Total Number of Network Ports: 20
USB: Yes
Uplink Port: Yes
Management & Protocols
Manageable: Yes
Management:
  • Telnet
  • HTTPS
  • SNMPv3
  • CNA
  • VLAN
  • QoS
  • DHCP
  • SSH
  • CiscoWorks LAN Management Solution (LMS)
  • Web Base Management
Media & Performance
Ethernet Technology: Fast Ethernet
　 Gigabit Ethernet
Media Type Supported: Twisted Pair
Network Technology: 10/100/1000Base-T
　 10/100Base-TX
Twisted Pair Cable Standard: Category 5
Memory
Flash Memory: 64 MB
Maximum Memory: 1 GB
Memory Card Supported: SD
Memory Technology: DRAM
Standard Memory: 256 MB
Network & Communication
Layer Supported: 2
Physical Characteristics
Depth: 133.6 mm
Form Factor: Desktop
　 Rail-mountable
Height: 129.5 mm
Weight (Approximate): 1.97 kg
Width: 127 mm
Power Description
PoE (RJ-45) Port: No
Power Source: Power Supply
Redundant Power Supply Supported: Yes
