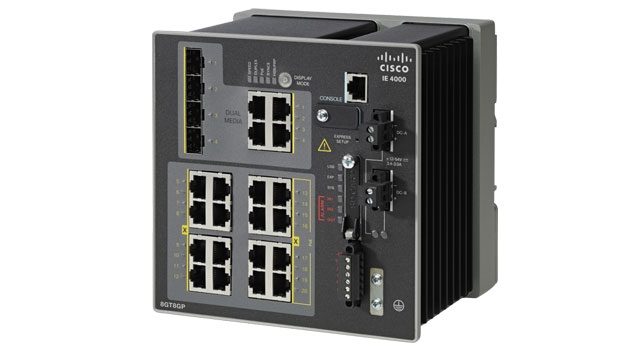

Cisco Ie 4000 4 X Sfp 1g With 8 X 1g Poeb4 X 1g Combo Lan Base Ie-4000-4gs8gp4g-e
Developed specifically to withstand the harshest industrial environments, these switches offer the most flexible and resilient industrial Ethernet products with secure connectivity, simple management and edge application execution.
Product overview
The Cisco® Industrial Ethernet (IE) 4000 Series delivers Gigabit connectivity to Cisco ruggedized switching portfolio with superior high-bandwidth switching capacity and proven Cisco IOS® Software. The IE 4000 Series provides highly secure access and industry-leading convergence ring protocols to support resilient and scalable networks while adhering to industry compliance requirements.
The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including manufacturing, energy, transportation, smart cities. The IE4000 has built-in SW image verification to ensure authenticity of the Cisco Software. With improved overall performance, greater bandwidth, advanced security features, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000.
The IE 4000 Series can be used to easily and securely extend the enterprise network to harsh environments with a software-defined access extension for the Internet of Things (IoT) enabling connectivity in outdoor areas, warehouses, distribution centers, roadways, etc., using powerful enterprise-grade intent-based network management platform such as Cisco DNA™ Center.
The Cisco IE 4000 can easily be installed. with a GUI based Device Manager, it also offers out-of-the-box industrial usage configuration and simplified manageability to deliver advanced security, data, video, and voice services over industrial networks.
The IE 4000 executes edge applications using Cisco IOx to transform sensor data into insight and action. With Cisco IOx for customers take advantage of consistent, distributed computing across Cisco IoT network infrastructure. For more information on Cisco IOx, please see the Cisco IOx data sheet.
Features and benefits
Table 1 lists the features and benefits of Cisco IE 4000 Series Switches.
Table 1. Features and benefits of Cisco IE 4000 switches
| Feature | Benefit |
| Robust industrial design | ● Built for harsh environment and temperature range (-40 to 70 C). ● Hardened for vibration, shock and surge, and noise immunity. ● Resilient dual ring design via 4x Gigabit Ethernet uplink ports. ● Complies with multi-industry specifications for automation, ITS, and substation environments. ● Improves uptime, performance, and safety of industrial systems and equipment. ● Fitted with compact, DIN rail compliant form factor ideal for industrial deployment. ● Covers a wide range of Power over Ethernet (PoE) application requirements. |
| User-friendly GUI device manager | ● Allows easy configuration and monitoring via a web based device manager. ● Eliminates the need for more complex terminal emulation programs. ● Reduces the cost of deployment. |
| SwapDrive: “zero-config” replacement | ● Simple switch replacement in case of a failure. ● No networking expertise required. ● Helps ensure fast recovery. |
| High-density industrial Power over Ethernet (PoE) | ● Reduces complexity with one cable for both connectivity and power. ● Controls costs by limiting wiring, distribution panels, and circuit breakers. ● Creates space and reduces heat dissipation. ● Enables ready-to-use PoE devices like IP phones and wireless access points. ● Supports (on select models) maximum HD camera deployments. ● Designed to support PoE power budget up to 240W(on select models) |
| Full Gigabit Ethernet switch | ● Connects new wireless access point (802.11n and 802.11ac). ● Enables new HD IP Cameras and new PLC (Programmable Logic Control). ● Allows SCADA (Supervisory Control And Data Acquisition) connectivity. ● Provides introduction of new bandwidth-hungry applications in the industrial space. ● Supports very-delay-sensitive applications and time-sensitive networks. ● Delivers multiple rings, redundant ring topology for new network configurations. ● Extends geographical scalability where longer distance connectivity is required. |
| Cisco IOx for Fog Compute applications | ● Reach business outcomes associated with IoT initiatives with application execution close to edge network. ● Reach production scale rapidly by offering flexible application development and deployment approaches ● Build new business with the ability to process high volumes of data close to network edge and deliver closed-loop system control in real time. |
| General Information | |
|---|---|
| Brand Name: | Cisco |
| Manufacturer Part Number: | IE-4000-4GS8GP4G-E |
| Manufacturer Website Address: | http://www.cisco.com/c/en_au |
| Manufacturer: | Cisco Systems, Inc |
| Product Model: | IE-4000-4GS8GP4G-E |
| Product Name: | IE-4000-4GS8GP4G-E Layer 3 Switch |
| Product Series: | 4000 |
| Product Type: | Layer 3 Switch |
| I/O Expansions | |
|---|---|
| Expansion Slot Type: | SFP |
| Number of SFP Slots: | 4 |
| Number of Total Expansion Slots: | 4 |
| Shared SFP Slot: | Yes |
| Interfaces/Ports | |
|---|---|
| Modular: | No |
| Port/Expansion Slot Details: | Gigabit Ethernet |
| Stack Port: | No |
| Total Number of Network Ports: | 12 |
| Uplink Port: | Yes |
| Management & Protocols | |
|---|---|
| Manageable: | Yes |
| Media & Performance | |
|---|---|
| Ethernet Technology: | Gigabit Ethernet |
| Media Type Supported: | Twisted Pair |
| Network Technology: | 1000Base-X |
| Miscellaneous | |
|---|---|
| Environmentally Friendly: | Yes |
| Network & Communication | |
|---|---|
| Layer Supported: | 3 |
| Physical Characteristics | |
|---|---|
| Depth: | 155.4 mm |
| Form Factor: | Rail-mountable |
| Height: | 129.3 mm |
| Weight (Approximate): | 2.88 kg |
| Width: | 155.4 mm |
| Power Description | |
|---|---|
| Power Source: | Power Supply |
| Redundant Power Supply Supported: | Yes |
