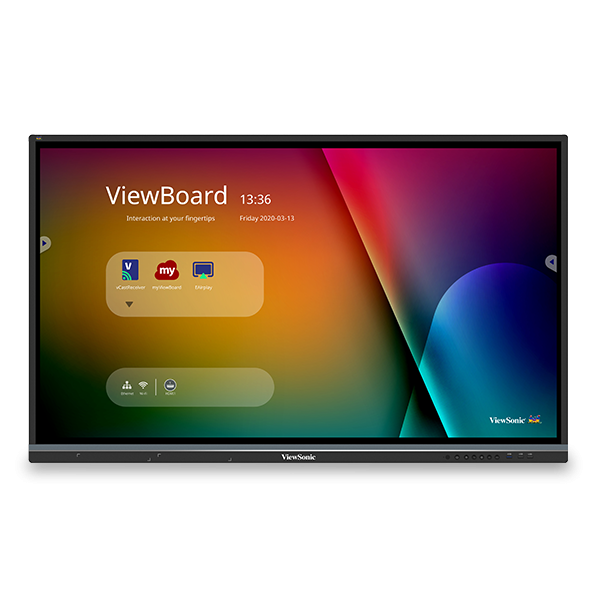

Viewsonic IFP6550 65IN 4K INTERACTIVE FLAT PANEL 20PTS TOUCH MY VIEWBOARD FRONT USB PORTS Ifp6550V2
No Longer Available
Featuring 4K Ultra HD resolution and an advanced, next-generation touchscreen, the ViewSonic® ViewBoard® IFP6550 delivers incredible collaborative capabilities for 21st century boardrooms and classrooms. With integrated myViewBoard® annotation software and ViewBoard Cast streaming software, content creation and sharing has never been easier. What’s more, this ENERGY STAR certified display delivers optional slot-in PC capability for more computing-intensive interactive applications. A VESA-compatible design allows for installation on a wall mount, or on an optional trolley cart for more flexible installation in classrooms and meeting rooms.
EVERYTHING WITHIN REACH
An intuitive interface delivers the tools you need for streamlined and efficient interaction with the touchscreen. A redesigned UI/UX includes a side toolbar that provides easier access to applications, settings, and productivity tools.
ENHANCED TOUCHSCREEN PERFORMANCE
Thanks to ViewSonic ultra-fine touch technology, this interactive display delivers an ultra-smooth, natural handwriting experience. 20-point touch allows multiple users to simultaneously write or draw on the display’s surface using styluses or their fingers, or both at the same time. Dual-tip pen support allows users to simultaneously write or draw with two different colors.
MYVIEWBOARD™ DIGITAL WHITEBOARDING SOLUTION
myViewBoard digital whiteboarding software combines enterprise-level security with cloud-based portability and annotation tools to enhance the way your team connects and collaborates. Convenient features include secure single sign-on to your favorite cloud drives, easy conversion of common office files, QR code sharing, and much more.
VIEWBOARD CAST CONTENT SHARING SOFTWARE
ViewBoard Cast enables users to share and receive content from any device platform. Supports Chrome, iOS, Mac, Android, and Windows with secure passcode and moderator control. Multiple users can simultaneously stream and share that content onto the ViewSonic display. Multi-screen casting allows up to four client screens to be shown on the ViewSonic display at once.
ENHANCED VIEWING COMFORT
This display is TUV-certified for low blue light emission to reduce eye fatigue and strain. Flicker-free technology also helps to deliver more comfortable long-term viewing.
SMARTPORT USB™
The ViewSonic SmartPort USB function allows devices to be plugged into any video source on the display, while still providing simultaneous access to the display’s front-facing USB ports.
DISPLAY SIZE (IN.)
65
RESOLUTION
3840 x 2160
STATIC CONTRAST RATIO
1,200:1
LIGHT SOURCE
LED
LCD DISPLAY
DISPLAY SIZE (IN.)
65
VIEWABLE AREA (IN.)
65
LIGHT SOURCE
LED
RESOLUTION
3840 x 2160
ASPECT RATIO
16:9
STATIC CONTRAST RATIO
1,200:1
BACKLIGHT LIFE (HOURS)
50,000
BRIGHTNESS
350 cd/m2
NETWORKING
ETHERNET LAN
10/100/1000 Mbps
EMBEDDED PLAYER
OS
Embedded ViewBoard OS
GPU
ARM Mali-G51
CPU
ARM Quad Core A73 + A53
CPU PROCESSOR SPEED
1.1GHz
MEMORY
3GB
STORAGE
32GB
AUDIO
INTERNAL SPEAKERS
10W (x2)
SUBWOOFER
15W (x1)
CONNECTOR
HDMI 2.0 IN
3
HDMI OUT
1
VGA
1
COMPOSITE RCA
1
3.5MM AUDIO IN
1
3.5MM AUDIO OUT
1
SPDIF AUDIO OUT
1
USB 3.0
2
USB 2.0
4
SLOT-IN PC SLOT
1
USB B TOUCH PORT
2
RS232
1
ETHERNET LAN (RJ45)
1
WIFI MODULE SLOT
1
POWER
VOLTAGE
100-240 VAC
CONSUMPTION (TYPICAL)
350W
STAND-BY
<0.5W
OPERATING CONDITIONS
TEMPERATURE
32-104º F (0 - 40º C)
HUMIDITY (NON-CONDENSING)
10-90%
TOUCH
TOUCH TECHNOLOGY
Infrared
TOUCH POINTS
20-Point Touch
TIP DETECTION
Dual tips, 3mm and 8mm
WEIGHT (IMPERIAL)
NET (LBS)
88.9
GROSS (LBS)
102.6
WEIGHT (METRIC)
NET (KG)
40.0
GROSS (KG)
47.0
DIMENSIONS (IMPERIAL) (WXHXD)
PACKAGING (IN.)
65.7 x 39.8 x 8.8
PHYSICAL (IN.)
58.6 x 35.3 x 3.5
DIMENSIONS (METRIC) (WXHXD)
PACKAGING (MM)
1669.0 x 1010.0 x 223.0
PHYSICAL (MM)
1488.0 x 897.0 x 90.0
MOUNT
VESA COMPATIBLE
600 x 400 mm
GENERAL
WARRANTY
3-year limited warranty on parts, labor and backlight, onsite warranty
RECYCLE/DISPOSAL
Please dispose of in accordance with local, state or federal laws.
PACKAGE CONTENTS
IFP6550 display, stylus pen x 2, power cable, HDMI cable, USB cable, AV cable, remote control with batteries, Camera plate, M8 screw x 8, Quick Start Guide
REGULATIONS
cTUVus, FCC, ENERGY STAR, Mexico Energy, CE, CB, RoHS, ErP, WEEE
