Essentials

• Product CollectionIntel® Data Center Blocks for Business (Intel® DCB for Business)
• Code NameProducts formerly Silver Pass
• Launch DateQ1'17
• StatusLaunched
• Expected Discontinuance1H'20
• Limited 3-year WarrantyYes
• Extended Warranty Available for Purchase (Select Countries)Yes
• Additional Extended Warranty DetailsSingle Processor System Extended Warranty
• Chassis Form Factor1U Rack
• Chassis Dimensions17.26"x23.84"x1.7" (WxDxH)
• Board Form FactoruATX
• Rack Rails IncludedNo
• SocketLGA 1151 Socket H4
• Heat SinkF1UE3PASSHS
• Heat Sink IncludedYes
• System BoardIntel® Server Board S1200SPOR
• Board ChipsetIntel® C236 Chipset
• Target MarketSmall and Medium Business
• Rack-Friendly BoardYes
• Power Supply450 W
• Power Supply TypeAC
• # of Power Supply Included2
• Redundant FansNo
• Redundant Power SupportedYes
• BackplanesIncluded

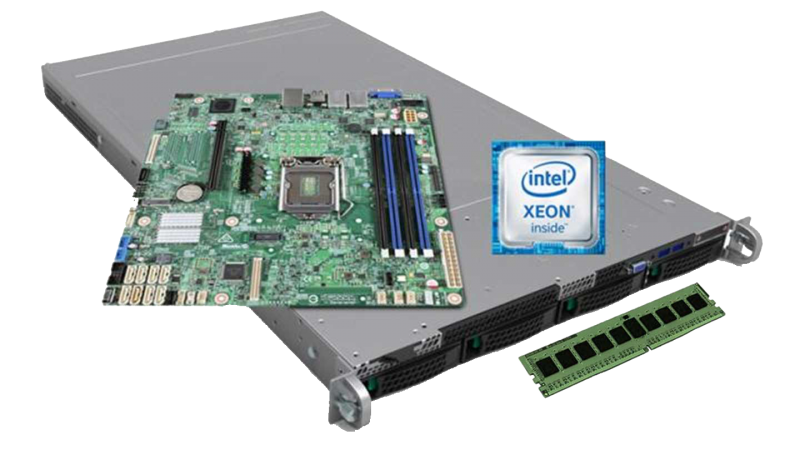

• Included ItemsThis product is an indirect replacement for LR1304SPCFG1.

  PLEASE NOTE: LR1304SPCFG1R does not include a hard drive, contains 16GB RAM, and contains some additional configuration changes.

  ---- Prior Product Configuration ----
  (1) E3-1230 v6 processor
  (1) Intel® Server Board S1200SPOR
  (1) Riser card assembly (AXX1UPCIEX16R2)
  (2) 450W redundant power supply
  (1) Power Distribution Board
  (4) 3.5 inch Hot-swap drive bays
  (4) 3.5 inch Hot-swap drive trays (FXX35HSCAR)
  (1) 12Gb SAS Backplane (FR1304S3HSBP)
  (1) SATA data cable
  (1) Backplane 12C cable
  (1) SATA ODD data cable
  (1) SAS Data cable
  (3) System fans
  (1) Standard control panel assembly
  (1) Front Q/O Pannel assembly (1 x VGA & 2 x USB)
  (1) SATA Optical drive bay with filler panel
  (2) Chassis handles -installed
  (1) 16GB DDR4 DIMM
  　
• Recommended Customer PriceN/A

Supplemental Information

• DatasheetView now
• DescriptionFor cost optimization, the Refresh version of the Entry Server Block ships with no SSD and a reduced 16GB of RAM. The Refresh version of the Entry Server Block includes E3-1230 v6.

Memory & Storage

• Memory TypesDDR4 ECC 2400MT/s UDIMM
• Max # of DIMMs16
• Max Memory Size (dependent on memory type)64 GB
• DIMM TypeUDIMM
• # of Front Drives Supported4
• Front Drive Form FactorHot-swap 3.5" HDD or 2.5" SSD
• # of Internal Drives Supported1
• Internal Drive Form FactorM.2 SSD

Processor Graphics

• Integrated Graphics ^‡Yes

Expansion Options

• Connector for Intel® I/O Expansion Module x8 Gen 31
• Connector for Intel® Integrated RAID Module1
• Riser Slot 1: Total # of Lanes8
• Riser Slot 1: Included Slot Configuration(s)1x PCIe Gen3 x8

I/O Specifications

• # of USB Ports9
• Total # of SATA Ports8
• RAID ConfigurationSoftware RAID RSTe (0,1,10,5) and ESRT2 (0,1,10)
• # of Serial Ports1
• Integrated LAN2x 1GbE
• # of LAN Ports2
• Optical Drive SupportYes

Package Specifications

• Max CPU Configuration1

Advanced Technologies

• Intel® Remote Management Module SupportYes
• Integrated BMC with IPMIIPMI 2.0
• Intel® Node ManagerYes
• Intel® Rapid Storage Technology enterpriseYes
• Intel® I/O Acceleration TechnologyYes

Intel® Transparent Supply Chain

• TPM Version2.0

https://ark.intel.com/products/99764/Intel-Server-System-LR1304SPCFG1R

GENERAL
Type Server
Product Form Factor Rack-mountable - 1U
Embedded Security Trusted Platform Module (TPM 2.0) Security Chip
Internal Bays Qty 1
Front Accessible Bays Qty 4
CACHE MEMORY
Installed Size 8 MB
Cache Per Processor 8 MB
RAM
Installed Size 16 GB / 64 GB (max)
Technology DDR4 SDRAM - ECC
Form Factor DIMM 288-pin
Features Unbuffered
Configuration Features 1 x 16 GB
STORAGE CONTROLLER
Type 1 x RAID
Controller Interface Type SATA 6Gb/s
Channel Qty 8
RAID Level RAID 0, RAID 1, RAID 5, RAID 10
MONITOR
Monitor Type None.
NETWORKING
Ethernet Ports 2 x Gigabit Ethernet
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol IPMI 2.0
Features Intel Remote Management Module Support
EXPANSION / CONNECTIVITY
Bays 4 (total) / 4 (free) x hot-swap 2.5" / 3.5" shared 1 (total) / 1 (free) x internal M.2
Slots 1 (total) / 0 (free) x CPU 1 (total) / 1 (free) x PCIe 3.0 x8 4 (total) / 3 (free) x DIMM 288-pin
Interfaces 9 x USB 8 x SATA 1 x serial
MISCELLANEOUS
Included Accessories System fan, CPU Heatsink, riser card, 2 rack handles, power distribution board, 3 x system fans, 4 x 3.5" hot-swap drive trays, 12Gb SAS backplane, standard control panel assembly, front Q/O pannel assembly (1 x VGA & 2 x USB), SATA optical drive bay with filler panel
Cables Included Serial ATA cable (2 pcs.) Serial ATA / SAS cable
POWER
Device Type Power supply
Power Redundancy Yes
Installed Qty 2
Power Provided 450 Watt
MANUFACTURER WARRANTY
Service & Support Limited warranty - 3 years
DIMENSIONS & WEIGHT
Width 43.8 cm
Depth 60.6 cm
Height 4.32 cm
PROCESSOR / CHIPSET
CPU Intel Xeon E3-1230V6 / 3.5 GHz
Max Turbo Speed 3.9 GHz
Number of Cores Quad-Core
CPU Qty 1
Max CPU Qty 1
CPU Socket LGA1151 Socket
Chipset Type Intel C236
