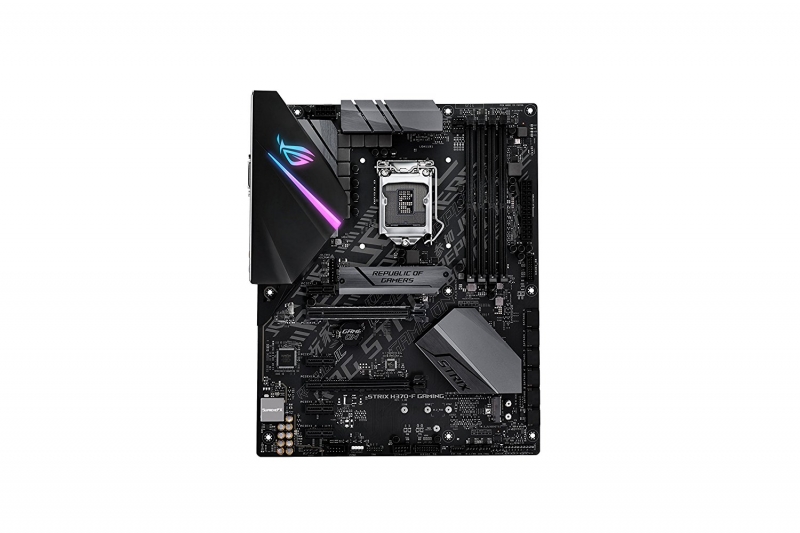

Asus Intel H370 Atx Gaming Motherboard With Aura Sync Rgb Led Lighting Pre-mounted I/ O Shield
No Longer Available
QUICK OVERVIEW
Republic of Gamers (ROG) is an ASUS sub-brand dedicated to creating one of the world’s best gaming hardware and software. Formed in 2006, ROG offers a complete line of innovative products known for performance and quality.
Overview
Built for a customized gaming experience, the ROG Strix H370-F Gaming features Fan Xpert 4 for dynamic system cooling, Aura Sync RGB lighting and 3D printing mounts. Dual M.2 and USB 3.1 Gen2 deliver maximum connectivity and speed while ASUS OptiMem improves memory stability and performance.
- Designed exclusively for 8th generation Intel Core processors to maximize connectivity and speed
- ASUS OptiMem improves memory stability and performance
- Fan Xpert 4 with GPU temperature sensing
- ASUS exclusive Aura Sync RGB lighting and a 3D-printing friendly mount
- Pre-mounted I/O shield
Features
Cyber OutlookThe distinctive sleek cuts across the ROG Strix heatsink are now accented with a futuristic cyber-text pattern, fusing multiple gaming cultures to create a unique identity for this generation. But it's not all about arresting looks: the all-new ROG Strix motherboards exude material excellence, with a high-quality metal heatsink that adds a premium touch. | Outshine the CompetitionROG Strix motherboards deliver sterling performance and superior aesthetics to Outshine the Competition. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header — and it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware. | Performance Level UpROG Strix motherboards provide comprehensive control over fans and all-in-one (AIO) coolers via Fan Xpert 4 or via its media-acclaimed UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. |
ASUS OptiMemASUS OptiMem preserves memory signal integrity by routing traces and vias to the optimal PCB layer, and ASUS T-Topology trace layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements allow the ROG Strix H370-F Gaming to support a wide range of dual and quad-DIMM memory kits. | Dual PCIe 3.0 M.2ROG Strix H370-F Gaming is equipped with two M.2 slots for maximum storage flexibility. The first slot has an integrated M.2 heatsink with a huge cooling surface to bolster fan-based cooling, finished in stylish brushed metal. The second slot is situated away from heat-generating graphics card to maximize airflow cooling. | Pre-Mounted I/O ShieldROG's patent-pending I/O shield is finished in sleek matte black, and it’s pre-mounted to make it easy to install the motherboard. |
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
Multi-VGA output support : HDMI/DVI-D/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1
1 x PCIe 3.0/2.0 x16 (x16 mode)
Intel® H370 Chipset
1 x PCIe 3.0/2.0 x16 (x4 mode)
4 x PCIe 3.0/2.0 x1
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*2
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready *3
Anti-surge LANGuard
ROG GameFirst Technology
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback *4
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link
1 x USB 3.1 Gen 2 port(s) (1 at back panel, black, USB Type-CTM, Support 3A power output)
Intel® H370 Chipset :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, red, Type-A, Support 3A power output)
Intel® H370 Chipset :
4 x USB 3.1 Gen 1 port(s) (4 at mid-board)
Intel® H370 Chipset :
6 x USB 2.0 port(s) (4 at back panel, black, 2 at mid-board)
ROG CPU-Z
ROG CloneDrive
Overwolf
GameFirst IV
ROG Aura
- Aura Lighting Control
- Aura RGB Strip Headers
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- SafeSlot
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Gaming Aesthetics :
- 3D printing friendly
- AURA-RGB Lighting
Digi+VRM
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 2 (black)USB Type-CTM,
2 x USB 3.1 Gen 2 (red)Type-A
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x RGB Header(s)
2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x M.2_FAN connector
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector
1 x COM port header
2 x 3D Mount screw port(s)
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x CABLE TIE BLACK
1 x ROG Strix stickers
1 x ROG Door Hanger(s)
1 x Extension Cable for RGB strips (80 cm)
1 x 3D printing mount package
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
*2 The M.2_1 socket shares bandwidth with SATA6G_2 port when using M.2 SATA mode device. Adjust BIOS settings to use X2 mode (PCIE only).
*3 Intel® Optane™ Technology only supported when using 8th Generation Intel® Processors. Before using Intel® Optane™ memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
*4 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
