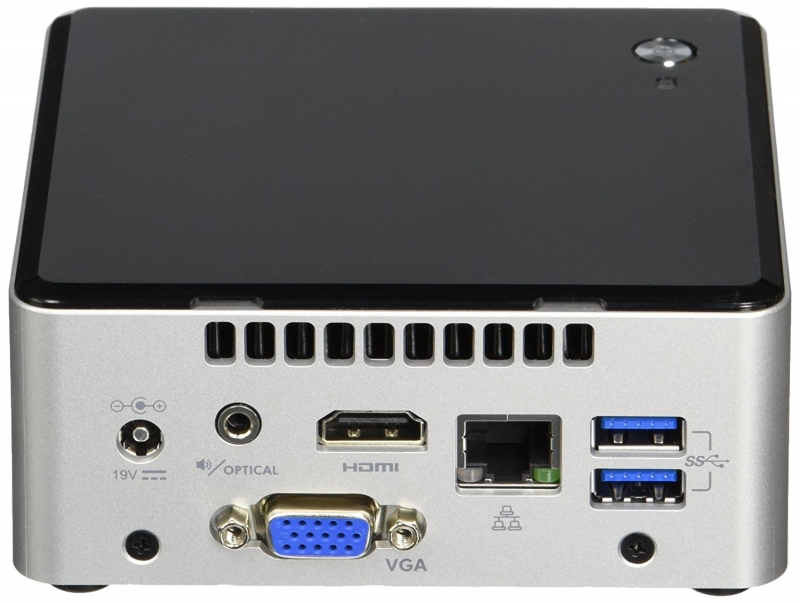

Intel Mini Nuc Pc I5-7260u 8gb(1/2) 240gb M.2 Ssd 2.5"(0/1) Wl-ac W10p 3yr Nbd Nuc7h-i5-8-240
SKU
249937
Brand
Warranty
1 Year Manufacturer's return to base
No Longer Available
$0.00
Buy Now And Earn 0 Reward Points!
DESCRIPTION
INTEL MINI NUC PC, i5-7260U, 8GB(1/2), 240GB M.2 SSD, 2.5"(0/1), WL-AC, W10P , 3YR NBD
| SKU NUC7H-I5-8-240 | BRAND INTEL |
Essentials
- Product CollectionIntel® NUC Kits
- Code NameProducts formerly Baby Canyon
- StatusLaunched
- Launch DateQ1'17
- Expected DiscontinuanceSee Roadmap
- Board Form FactorUCFF (4" x 4")
- SocketSoldered-down BGA
- Internal Drive Form FactorM.2 and 2.5" Drive
- # of Internal Drives Supported2
- Lithography14 nm
- TDP15 W
- DC Input Voltage Supported12-19 VDC
- Recommended Customer Price$369.00
- Processor IncludedIntel® Core™ i5-7260U Processor (4M Cache, up to 3.40 GHz)
- Warranty Period3 yrs
Supplemental Information
- Embedded Options AvailableNo
- DescriptionOther features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes SDXC card slot, dual microphones
Memory Specifications
- Max Memory Size (dependent on memory type)32 GB
- Memory TypesDDR4-2133 1.2V SO-DIMM
- Max # of Memory Channels2
- Max Memory Bandwidth34.1 GB/s
- Max # of DIMMs2
- ECC Memory Supported ‡No
Graphics Specifications
- Integrated Graphics ‡Yes
- Graphics OutputHDMI 2.0a; USB-C (DP1.2)
- # of Displays Supported ‡3
Expansion Options
- PCI Express RevisionGen3
- PCI Express Configurations ‡M.2 slot with PCIe x4 lanes
- Removable Memory Card SlotSDXC with UHS-I support
- M.2 Card Slot (storage)22x42/80
I/O Specifications
- USB Configuration2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers
- USB Revision2.0, 3.0
- # of USB Ports6
- USB 2.0 Configuration (External + Internal)0 + 2
- USB 3.0 Configuration (External + Internal)2B 2F + 0
- Total # of SATA Ports2
- Max # of SATA 6.0 Gb/s Ports2
- RAID Configuration2.5" HDD/SSD + M.2 SATA/PCIe SSD (RAID-0 RAID-1)
- Audio (back channel + front channel)7.1 digital (HDMI mDP); L+R+mic (F)
- Integrated LAN10/100/1000
- Integrated WifiIntel® Wireless-AC 8265 + BT 4.2
- Integrated BluetoothYes
- Consumer Infrared Rx SensorYes
- Additional HeadersCEC, 2x USB2.0, FRONT_PANEL
- # of Thunderbolt™ 3 Ports1
Package Specifications
- Low Halogen Options AvailableSee MDDS
