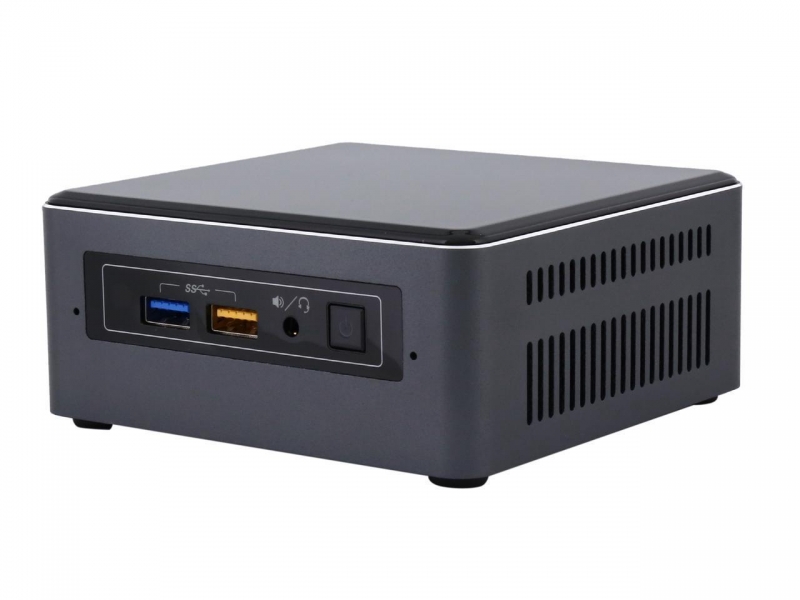

Intel Nuc Kit Nuc7i7bnhx1 With Intel Optane Memory I7-7567u Processor 4m Cache 3yrs Warranty Boxnuc7i7bnhx1
No Longer Available
Smart System Acceleration
Intel® NUC Kit NUC7i7BNHX1 is built on a 7th Gen Intel® Core™ i7 processor and comes with 16 GB Intel® OptaneTM memory preinstalled. The result is amazing responsiveness that frees you to start your computer quicker, experience faster game level-loading, and save files in less time. Plus, Intel® Optane™ memory automatically learns your computing behaviors to accelerate frequently performed tasks.
Small, But Mighty
Featuring one of the latest 7th Gen Intel® Core™ i7 processors, members of the newest NUC lineup offer plenty of choice when it comes to your next highly capable small form factor PC. Whether you're automating your home for security, enjoying 4K entertainment, or making it the brains for your smart home, there's an Intel® NUC for you.
Make It Your Own
A customizable Mini PC kit with the power of a desktop PC. Choose your RAM, storage, and operating system to build the PC you want. This Intel® NUC has room for up to 32 GB of DDR4 RAM and a 2.5" SATA HDD. When combined with Intel® Optane™ memory, it offers the best of both worlds—high speed acceleration and affordable large storage capacity.
- 10/100/1000MBPS ETHERNET
- 7.1 SURROUND SOUND
- HDMI 2.0 (4K 60HZ), DISPLAYPORT 1.2 VIA USB-C
- MICROSOFT WINDOWS* 10 READY
- 802.11AC + BLUETOOTH® 4.2
- DUAL CHANNEL DDR4-2133, 32GB MAXIMUM
- KENSINGTON LOCK WITH BASE SECURITY
- MICRO SDXC SLOT WITH UHS-I SUPPORT
- SATA 3 SUPPORT
- BUILT-IN DUAL ARRAY MICROPHONES
- THUNDERBOLT™ 3
- MULTI-COLOR FRONT PANEL LED LIGHT RING
| GOOD | BETTER | BEST | |
 |  |  | |
| NUC Product: | NUC7i3BNHX1 | NUC7i5BNHX1 | NUC7i7BNHX1 |
| Product: | 7th Gen Intel® Core™ i3 Processor | 7th Gen Intel® Core™ i5 Processor | 7th Gen Intel® Core™ i7 Processor |
| System Accelerator: | 16 GB Intel® OptaneTM memory | 16 GB Intel® OptaneTM memory | 16 GB Intel® OptaneTM memory |
| Graphics: | Intel® HD Graphics 620 | Intel® Iris™ Plus Graphics 640 | Intel® Iris™ Plus Graphics 650 |
| 2.5" SSD/HDD Bay: | 9.5mm, SATA3 | 9.5mm, SATA3 | 9.5mm, SATA3 |
| USB-C Connector: | USB 3.1 Gen 2 & DisplayPort 1.2 | Thunderbolt™ 3, USB 3.1 Gen 2, & DisplayPort 1.2 | Thunderbolt™ 3, USB 3.1 Gen 2, & DisplayPort 1.2 |
