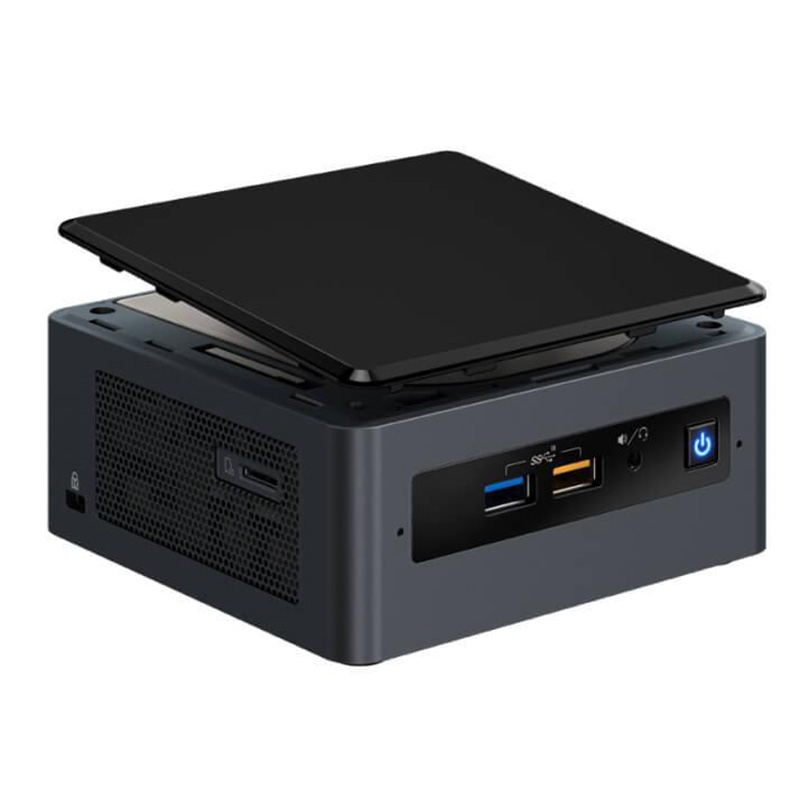

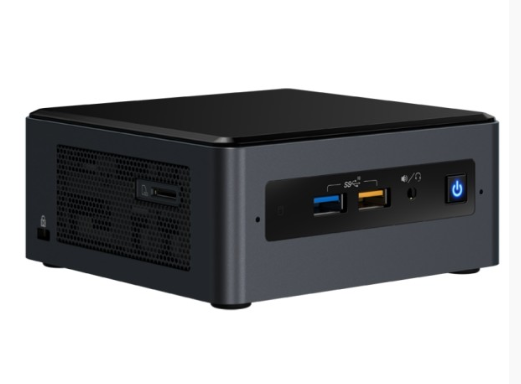

Intel Nuc Kit With 8th Gen I7-8559u Processor (8m Cache Up To 4.50 Ghz) Boxnuc8i7beh4

Name: Intel Nuc Kit With 8th Gen I7-8559u Processor (8m Cache Up To 4.50 Ghz) Boxnuc8i7beh4
Brand: Intel
SKU: 271101
Availability: OutOfStock

SKU

271101

Brand

Intel

Manufacturer Link

Manufacturer Product Link

Warranty

1 Year Manufacturer's return to base

No Longer Available

$0.00

Buy Now And Earn 0 Reward Points!

Intel NUC BOXNUC8I7BEH4 Gen8 i7-8559U Processor

Intel NUC Kit NUC8i7BEH, i7-8559U, 2x DDR4 SODIMM, 1x M.2 Slot, 1x 2.5inch Slot, Intel Iris Plus Graphics 655, HDMI 2.0, DisplayPort 1.2 via USB-C, 4xUSB3.0, 1x Thunderbolt 3, SD Card Slot, GBLAN, Wireless-AC 9560, BT5.0

Intel NUC BOXNUC8I7BEH4 Gen8 i7-8559U Processor (8M Cache, up to 4.50 GHz)

Essentials

Product CollectionIntel® NUC Kit with 8th Generation Intel® Core™ Processors
Code NameProducts formerly BEAN CANYON
StatusLaunched
Launch DateQ3'18
Board Form FactorUCFF (4" x 4")
SocketSoldered-down BGA
Internal Drive Form FactorM.2 and 2.5" Drive
# of Internal Drives Supported2
Lithography14 nm
TDP28 W
DC Input Voltage Supported12-19 VDC
Processor IncludedIntel® Core™ i7-8559U Processor (8M Cache, up to 4.50 GHz)
Warranty Period3 yrs

Supplemental Information

Embedded Options AvailableNo
DatasheetView now
DescriptionOther features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes microSDXC card slot, dual microphones

Memory & Storage

Max Memory Size (dependent on memory type)32 GB
Memory TypesDDR4-2400 1.2V SO-DIMM
Max # of Memory Channels2
Max Memory Bandwidth38.4 GB/s
Max # of DIMMs2
ECC Memory Supported ^‡No

Processor Graphics

Integrated Graphics ^‡Yes
Graphics OutputHDMI 2.0a; USB-C (DP1.2)
# of Displays Supported ^‡3

Expansion Options

PCI Express RevisionGen3
PCI Express Configurations ^‡M.2 slot with PCIe X4 lanes
Removable Memory Card SlotmicroSDXC with UHS-I support
M.2 Card Slot (storage)22x42/80

I/O Specifications

# of USB Ports6
USB Configuration2x front and 3x rear USB 3.1 Gen2; 2x USB 2.0 via internal headers
USB Revision2.0, 3.1 Gen2
USB 2.0 Configuration (External + Internal)0 + 2
USB 3.0 Configuration (External + Internal)2B 2F + 0
Total # of SATA Ports2
Max # of SATA 6.0 Gb/s Ports2
RAID Configuration2.5" HDD/SSD + M.2 SATA/PCIe SSD (RAID-0 RAID-1)
Audio (back channel + front channel)7.1 digital (HDMI mDP); L+R mic (F)
Integrated LAN10/100/1000
Integrated Wireless^‡Intel® Wireless-AC 9560 + Bluetooth 5.0
Integrated BluetoothYes
Consumer Infrared Rx SensorYes
Additional HeadersCEC, 2x USB2.0, FRONT_PANEL
# of Thunderbolt™ 3 Ports1
