Intel Nuc Mini Pc Kit, I7-6770hq, Ddr4 (0/2), M.2 (0/2), Wl-ac, Iris Pro 580, 3yr Wty Boxnuc6i7kyk4
No Longer Available
Specifications
| - Essentials | |
| Status | Launched |
| Launch Date | Shipping: May 2016 |
| Expected Discontinuance | See Roadmap |
| Board Form Factor | UCFF (4" x 5") |
| Socket | Soldered-down BGA |
| Internal Drive Form Factor | M.2 SSD |
| # of Internal Drives Supported | 2 |
| Embedded Options Available | No |
| Lithography | 14 nm |
| TDP | 45 W |
| DC Input Voltage Supported | 19 VDC |
| Description | Other features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes SDXC card slot |
| Processor Included | Intel® Core™ i7-6770HQ Processor (6M Cache, up to 3.50 GHz) |
| Warranty Period | 3 yrs |
| - Memory Specifications | ||
| Max Memory Size (dependent on memory type) | 32 GB | |
| Memory Types | DDR4-2133+ 1.2V, 1.35V SO-DIMM | |
| Max # of Memory Channels | 2 | |
| Max Memory Bandwidth | 34.1 GB/s | |
| Max # of DIMMs | 2 | |
| ECC Memory Supported ‡ | No | |
| - Graphics Specifications | ||
| Integrated Graphics ‡ | Yes | |
| Graphics Output | Mini-DP 1.2; HDMI 2.0; USB-C (DP1.2) | |
| Intel® Clear Video Technology | Yes | |
| # of Displays Supported ‡ | 3 | |
| - Expansion Options | ||
| PCI Express Revision | Gen3 | |
| PCI Express Configurations ‡ | Dual M.2 slots with PCIe x4 lanes | |
| Removable Memory Card Slot | SDXC with UHS-I support | |
| M.2 Card Slot (storage) | 2x 22x42/80 | |
| - I/O Specifications | ||
| USB Revision | 2.0, 3.0, 3.1 | |
| # of USB Ports | 9 | |
| USB 2.0 Configuration (External + Internal) | 0 + 2 | |
| USB 3.0 Configuration (External + Internal) | 3B 2F + 2I | |
| Total # of SATA Ports | 2 | |
| Max # of SATA 6.0 Gb/s Ports | 2 | |
| RAID Configuration | 2x M.2 SATA/PCIe SSD (RAID-0 RAID-1) | |
| Audio (back channel + front channel) | 7.1 digital; L+R+mic (F); L+R+TOSLINK (R) | |
| Integrated LAN | 10/100/1000 | |
| Integrated Wifi | Intel® Wireless-AC 8260 + BT 4.2 | |
| Integrated Bluetooth | Yes | |
| Consumer Infrared Rx Sensor | Yes | |
| S/PDIF Out Connector | TOSLINK | |
| Additional Headers | CEC, 2x USB2.0, 2x USB 3.0, FRONT_PANEL | |
| - Package Specifications | ||
| Low Halogen Options Available | See MDDS | |
| - Advanced Technologies | ||
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes | |
| Intel® vPro Technology ‡ | No | |
| TPM | No | |
| Intel® HD Audio Technology | Yes | |
| Intel® Rapid Storage Technology | Yes | |
| Intel® Virtualization Technology (VT-x) ‡ | Yes | |
| - Intel® Data Protection Technology | ||
| Intel® AES New Instructions | Yes | |

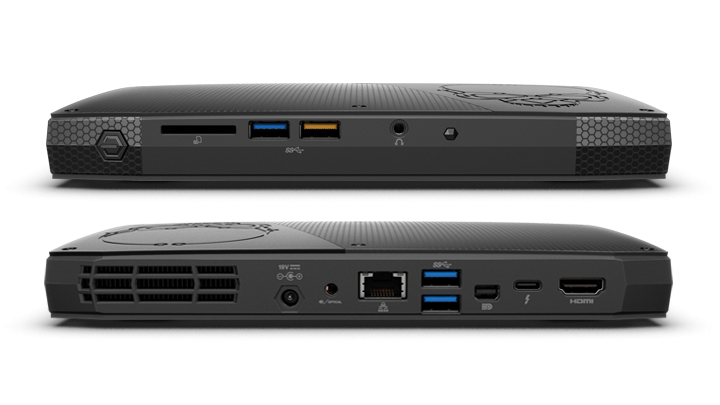

Mini PC Intel NUC Kit NUC6i7KYK
Mini PC. Full-Sized performance
The Intel NUC Kit NUC6i7KYK with 6th generation Intel Core i7 processor and Intel Iris Pro Graphics unleashes maximized performance for intense game play. We've created a wicked new look, along with a redesigned chassis that lets you take full advantage of every GHz of the quad-core processor without overheating, making the NUC6i7KYK totally cool. Literally.
Whether you use the NUC to train your dragon or bring down your enemy's nexus, or to visualize complex information like Monte Carlo simulations, you've got the performance you need, including 30x better 3D graphics for higher resolution and faster frame rates. And with Thunderbolt 3 you get four times the data and twice the video bandwidth of any other cable which means you have blazing fast throughput for an external RAID stack or an external graphics engine.
Work and play in high resolution with Intel Iris Pro Graphics
Intel Iris Pro Graphics with 4K display capabilities let you edit photos and videos like a professional or immerse yourself in vividly rendered, seamless 3D gameplay, all in brillian 4K on three monitors at once. When you use Intel Iris Pro graphics, you're working smarter, playing harder, and seeing the whole world in high resolution knowing you are using the best Intel Core processors. You've got the best processor graphics with enhanced media conversion and fast frame that delivers picture perfect performance, every time.
Designed for windows 10, so you can get more done
The Intel NUC is designed for Windows 10. You'll experiencecutting-edge performance from the start with fast boot and wake up times, and multitasking that's effortless whether moving between apps, files, or web sites. With support for up to 32GB of RAM, you can get the memory you need for fast map load times or extreme multitasking. And with 4 USB 3.0 ports including a USB charging port, you can use a USB keyboard, mouse and an Intel RealSense camera so you can video chat and collaborate with others as easily as if you were in the same room.
Cut the cords, not the performance
The NUC6i7KTK comes with Intel802.11ac wireless, Intel's fastest wireless available today, so you can connect out of the box and access files, movies and music in the cloud, along with built in Bluetooth 4.2 so yo ucan connect wireless peripherals like headsets and keyboards.
