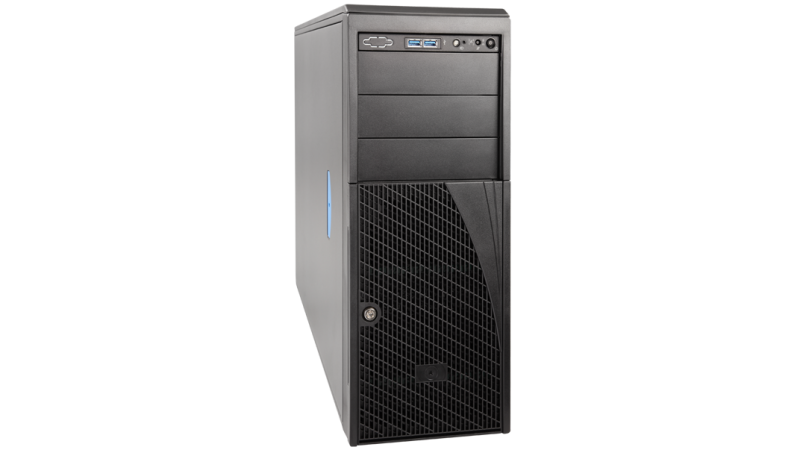

Intel Server Chassis, Hdd (0/ 4), Psu (0/ 2), 4u Tower, Fits M/ B S2600cw, 3yr Wty P4304xxmuxx
No Longer Available
4U pedestal chassis designed specifically for the Intel® Server Board S2600CW with default of four 3.5 fixed drives support, and optional 3.5 or 2.5 Hot Swap drives support. Power supply options sold separately and include redundant 750W and 1600W.
Brand Name: Intel
Compatible Rack Unit: 4U
Form Factor: Desktop/Wall Mountable
Number of Internal 3.5 Bays: 4
Number of Power Supplies Installed: 0
Number of Power Supplies Supported: 2
Number of Total Expansion Bays: 4
Product Type: Computer Case
Bays
Number of Internal 3.5 Bays: 4
Number of Total Expansion Bays: 4
General Information
Brand Name: Intel
Manufacturer Part Number: P4304XXMUXX
Manufacturer: Intel Corporation
Marketing Information: 4U pedestal chassis designed specifically for the Intel® Server Board S2600CW with default of four 3.5 fixed drives support, and optional 3.5 or 2.5 Hot Swap drives support. Power supply options sold separately and include redundant 750W and 1600W.
Product Model: P4304XXMUXX
Product Name: Server Chassis P4304XXMUXX
Product Type: Computer Case
I/O Expansions
Number of Total Expansion Bays: 4
Miscellaneous
Form Factor: Deskt
| Launch Date | Q4'14 |
| Status | Launched |
| Expected Discontinuance | Q4'19 |
| Limited 3-year Warranty | Yes |
| Extended Warranty Available for Purchase (Select Countries) | Yes |
| Chassis Form Factor | 4U Rack or Pedestal |
| Chassis Dimensions | 17.24" x 24.9" x 6.81" |
| Datasheet | Link |
| Description | 4U pedestal chassis designed specifically for the Intel® Server Board S2600CW with default of four 3.5" fixed drives support, and optional 3.5" or 2.5" Hot Swap drives support. Power supply options sold separately and include redundant 750W and 1600W. |
| Target Market | Embedded |
| Redundant Fans | Yes |
| Redundant Power Supported | Supported, requires additional power supply |
| Backplanes | Sold Separately |
| Included Items | (1) standard control panel (FXXFPANEL); (5) Redundant and hot-swap 80mm system fans (FUPMLHSFAN); (4) fixed 3.5 inch drive sleds (FUP4X35NHDK); (4) fixed power connectors; (1) 4-port fan-out SATA cable; (1) power supply cage (FUPCRPSCAGE); (1) power supply cage (FUPCRPSCAGE); (1) power distribution board (FUPPDBHC2); (1) processor/memory airduct (A4UCWDUCT); (1) hot-swap bezel with lock (FUPBEZELHSD2); (1) MiniSAS HD to 4 ports SATA 7 pins cable (AXXCBL450HD7S) |
| # of Front Drives Supported | 4 |
| Front Drive Form Factor | Fixed 2.5" or 3.5" |
| Additional Information URL | Link |
| Recommended Customer Price | N/A |
| - Package Specifications | ||
| Max CPU Configuration | 2 | |
Intel® Server Chassis P4304XXMUXX
| hassis Form Factor | 4U Rack or Pedestal |
| Chassis Dimensions | 17.24" x 24.9" x 6.81" |
| Datasheet | Link |
| Description | 4U pedestal chassis designed specifically for the Intel® Server Board S2600CW with default of four 3.5" fixed drives support, and optional 3.5" or 2.5" Hot Swap drives support. Power supply options sold separately and include redundant 750W and 1600W. |
| Target Market | Embedded |
| Redundant Fans | Yes |
| Redundant Power Supported | Supported, requires additional power supply |
| Backplanes | Sold Separately |
| Included Items | (5) Hot-swap fans (1) standard control panel (4) fixed 3.5 inch drive sleds (4) fixed power connectors (1) 4-port fan-out SATA cable (1) high current power distribution board (1) processor/memory airduct (1) hot-swap bezel (1) fixed EMI cover (1) spare hot-swap EMI cover and (1) Quick User Guide. |
| # of Front Drives Supported | 4 |
| Front Drive Form Factor | Fixed 2.5" or 3.5" |
| Additional Information URL | Link |
| Recommended Customer Price | N/A |
- Package Specifications | ||
| Max CPU Configuration | 2 | |
