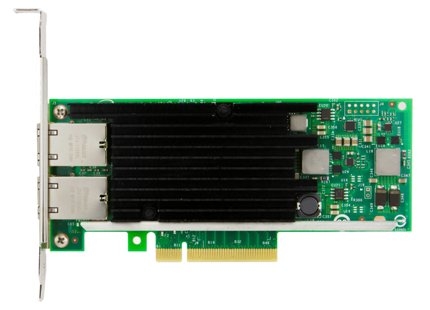

Lenovo Intel X540 Ml2 Dual Port 10gbaset Adapter For Ibm System X 00d1994
Abstract
The Intel X520 and X540 Dual Port 10 GbE adapters for System x and ThinkServer are powered by reliable and proven 10 Gb Ethernet technology. These adapters offer full line-rate 10 Gbps performance for high-IO intensive applications, and showcase the next generation in 10 GbE networking features for the enterprise network and data center. For ThinkServer, the X520 and X540 adapters also include FCoE and iSCSI Converged Ethernet support.
This product guide provides essential presales information to understand the Intel X520 and X540 offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about Intel X520 and X540 adapters and consider their use in IT solutions.
Change History
Changes in the October 10 update:
- Intel X540 Dual Port 10GBase-T Embedded Adapter, 49Y7990, is now withdrawn from marketing
Introduction
The Intel X520 and X540 Dual Port 10 GbE adapters for System x are powered by reliable and proven 10 Gb Ethernet technology. These adapters offer full line-rate 10 Gbps performance for high-IO intensive applications, and showcase the next generation in 10 GbE networking features for the enterprise network and data center. For ThinkServer, the X520 and X540 adapters also include FCoE and iSCSI Converged Ethernet support.
The Intel X520 adapter provides SFP+ based connectivity options (fiber or DAC cabling). The Intel X540 adapter offers 10GBASE-T connectivity with RJ-45 ports, with compatibility with the existing 1000BASE-T network, simplifying the transition to the 10 Gb Ethernet technology. Both the X520 and X540 are available in either standard PCIe low-profile card form factor or mezzanine card form factor.
General Information | |
---|---|
Brand Name: | Lenovo |
Manufacturer Part Number: | 00D1994 |
Manufacturer Website Address: | http://www3.lenovo.com/au/en |
Manufacturer: | Lenovo Group Limited |
Product Name: | Intel X540 ML2 Dual Port 10GbaseT Adapter For IBM System x |
Product Type: | 10Gigabit Ethernet Card |
Media & Performance | |
---|---|
Media Type Supported: | Twisted Pair |
Twisted Pair Cable Standard: | Category 7 |
Miscellaneous | |
---|---|
Platform Supported: | PC |
Network & Communication | |
---|---|
Network Technology: | 10GBase-T |
Physical Characteristics | |
---|---|
Card Height: | Low-profile |
Depth: | 69 mm |
Form Factor: | Mezzanine |
Height: | 15 mm |
Width: | 168 mm |
Warranty | |
---|---|
Limited Warranty: | 1 Year |
