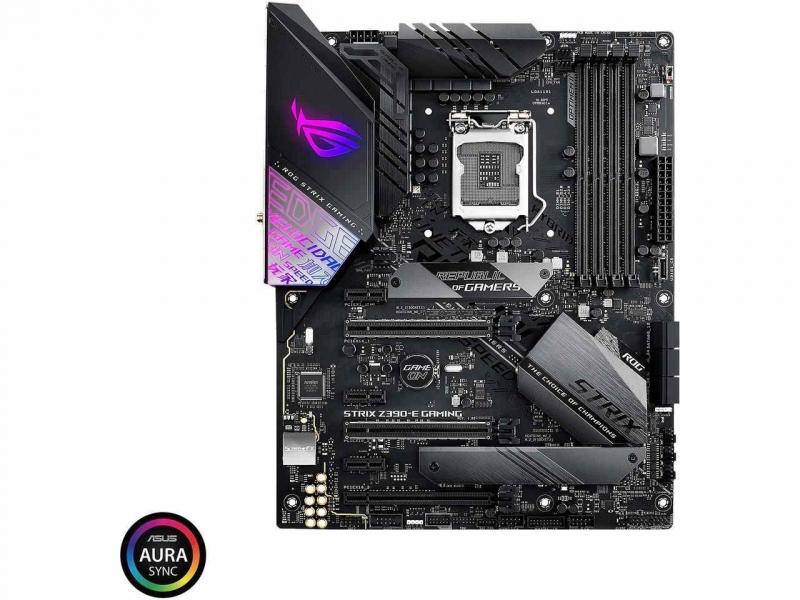

Fully command your gaming experience on 9th generation Intel Core processors with the ROG Strix Z390-E Gaming featuring 5-Way Optimization for dynamic system control with AI overclocking. Dual M.2, 802.11ac WiFi and USB 3.1 Gen2 deliver maximum connectivity speeds while ASUS OptiMem II ensures better DRAM overclocking stability.
Designed for 9th and 8th generation Intel Core processors to maximize connectivity
Revamped 5-Way Optimization overclocks intelligently based on smart prediction and thermal telemetry
Gamer’s Guardian ensures component longevity with SafeSlot, ESD Guards and DRAM Overcurrent Protection
Pre-mounted I/O shield ensures streamlined installation and represents ROG’s attention to detail and quality
The overclocking module of AI Suite's 5-Way Optimization has been revamped for the Z390 platform. With a revised back-end that has the intelligence to overclock a CPU based upon smart prediction and thermal telemetry, this new version quickly delivers overclocking results that would typically take days of manual tuning.
Cooler by design
ROG Strix Z390 Gaming series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS. Featureing a dedicated pair of PWM/DC fan headers for CPU coolers, a dedicated PWM/DC header for self-contained water-cooling setups and a dedicated header that can supply over 3A to high-performance PWM or DC water pumps.
Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset.
Outshine the competition
ROG Strix motherboards deliver sterling performance and superior aesthetics to Outshine the Competition. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header — and it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.
DIY Friendly Design
SafeSlot provides stronger PCIe device retention and greater shearing resistance. Q-DIMM clips allow for super-simple, super-secure handling of memory modules. MemOK ll automatically fixes boot failures that arise die to memory overclocking and instability.
ROG's I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install the motherboard.
Intel® Socket 1151 9th / 8th Gen Intel®Core™, Pentium®Gold and Celeron®Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer towww.asus.comfor CPU support list
4 x DIMM, Max. 64GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer towww.asus.comfor the Memory QVL (Qualified Vendors Lists).
Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1 Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
2 x PCIe 3.0/2.0 x16 (x16 or dual x8) 1 x PCIe 3.0/2.0 x16 (max at x4 mode) 3 x PCIe 3.0/2.0 x1
Intel® Z390 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*2 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready
Intel® Wireless-AC 9560 Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback *2 Audio Feature : - SupremeFX Shielding™ Technology - Optical S/PDIF out port(s) at back panel - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Sonic Radar III - Sonic Studio III + Sonic Studio Link
Intel® Z390 Chipset : 1 x USB 3.1 Gen 2 front panel connector port(s) Intel® Z390 Chipset : 4 x USB 3.1 Gen 2 port(s) (3 x Type-A+1 x USB Type-CTM) Intel® Z390 Chipset : 4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board) Intel® Z390 Chipset : 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
ROG Exclusive Features
ROG Exclusive Software - RAMCache III - CPU-Z - GameFirst V - Sonic Studio III + Sonic Studio Link - Sonic Radar III
OC Design - ASUS PRO Clock Technology - Full BCLK range for extreme overclocking performance 5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App AI Overclocking ASUS Optimem II： - Improved DDR4 Stability AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features: - MemOK! II - AI Suite 3 - Ai Charger - Armoury Crate - Pre-mounted I/O Shield - ASUS NODE: hardware control interface ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Gaming Aesthetics : - 3D printing friendly - AURA-RGB Lighting Digi+VRM M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) DIY Friendly Design - Procool - SafeSlot - Digi+ VRM - DRAM Overcurrent Protection - Highly Durable components - ESD Guards
Back I/O Ports
1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 2 (3 x Type-A+1 x USB Type-CTM) 2 x USB 3.1 Gen 1 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x ASUS Wi-Fi Module
Internal I/O Ports
1 x Aura Addressable Strip Header(s) 1 x AAFP connector 2 x Aura RGB Strip Header(s) 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x M.2_FAN connector 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x MemOK! II switch(es) 1 x Thermal sensor connector(s) 1 x CPU OV 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x 14-1 pin TPM connector 1 x COM port header 1 x AIO PUMP Header 1 x USB 3.1 Gen 2 front panel connector
User's manual 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x CABLE TIE BLACK 1 x SLI HB BRIDGE(2-WAY-M) 1 x ROG Strix stickers 1 x Assistant Fans(40mm) 1 x screws for Assistant Fan(s) 1 x ROG Door Hanger(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x Thermistor cable(s)
1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1
WOL , PXE
Windows® 10 64-bit
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
*1 When the M.2_1 Socket 3 is operating in SATA mode, SATA port 2 will be disable. *2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
