PRODUCT SPECIFICATIONS

　

Interface
Host Interface	DisplayPort (20 pin) Male Input
Video & Audio Interface	HDMI (19 pin) Male Output
Converter Type	Passive
Physical Specifications
Housing Material	Plastic
Dimensions	Main body: 17.7(W) x 8.4(H) x 4.5(D) Inches 4.49(W) x 2.13(H) x 1.15(D) cm Cable length: 6ft / 1.8m
Weight	Approximately  0.19 lbs / 86 g

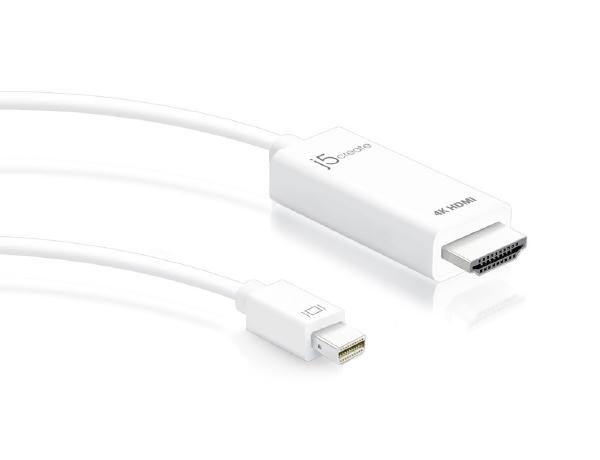

The JDC159 allows you to quickly and easily connect your DisplayPort supported Mac or PC to a 4K HDTV or other display device using an HDMI input. Simply connect the DisplayPort end of the connector to your computer and HDMI display. Avoid the hassle of converters that require additional cabling and power adapters, by using this plug-and-play 6 ft / 1.8 m cable. The JDC159 seamlessly converts the DisplayPort video signal into an HDMI signal for a fast plug-and-play setup. Fully DisplayPort 1.2 compliant, also compatible with DisplayPort 1.1.
⚫DisplayPort 1.2 compliant
⚫HDMI 1.4b compliant
⚫Supports up to 4K x 2k @ 30Hz & 3D video formats over HDMI
⚫DP++ Dual-Mode DisplayPort cable
⚫Supports audio
⚫Cable length 6ft / 1.8m
