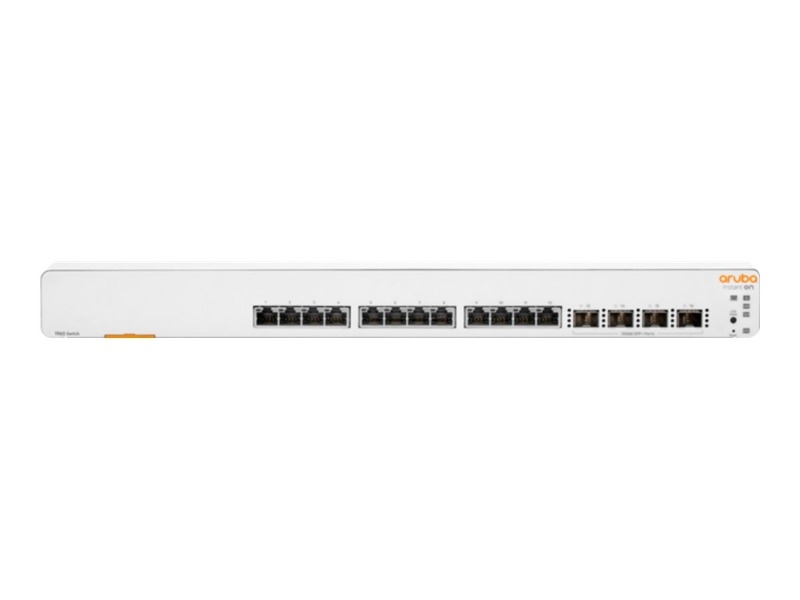

HPE ARUBA INSTANT ON 1960 12XGT 4SFP+ SWITCH JL805A

SKU
382965
Brand
Hpe
Manufacturer Link
MPN
JL805A
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$1,896.00
Buy Now And Earn 1896 Reward Points!
Add to Compare
  • Simplify network management by stacking up to (four) 4 Aruba Instant On 1960 switches and managing them through one single IP address. Stacking supported via local and cloud-managed stacking modes.
  • Smart-managed layer 2+ Ethernet switch series ready to deploy in 24- and 48-port for non-PoE and PoE (supports Class 4 and Class 6 PoE) models.
  • The Aruba 1960 aggregation switch comes with twelve (12) 10GBase-T and four (4) SFP+ ports, providing 10G connectivity to servers, network storage devices and access switches alike.
  • For environments with heavy bandwidth needs, 10GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and nearly eliminates traffic bottlenecks.
  • Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
  • Limited Lifetime Warranty.

Product Differentiator (long)Advanced 10G, smart-managed stackable switch designed for business networks and workgroups needing ultra-high performance. Stacks up to four 1960 switches at 1G and 10G speeds and enables management through a single IP address, simplifying network operations, supporting both local and cloud-managed stacking. Using either local web GUI, Instant On mobile app or cloud-based web portal, you can quickly set up, monitor and manage the switches from anywhere at anytime.

Power Consumption DescriptionMaximum: 100-127V: 130W 200-220V: 160W Idle: 100-127V: 60W 200-220V: 80W

Input Voltage100 - 240 VAC

External I/O Ports12 RJ-45 100/1000/10GBASE-T ports, 4 SFP+ 10GbE ports

Switching Capacity320 Gbps

Stacking Capabilities4H height

Throughput238 Mpps

Memory and ProcessorSingle Core ARMv7 Cortex-A9 @2Ghz

Management FeaturesAruba Instant On Cloud; Web browser; SNMP Manager

Warranty Standard StatementLimited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.

Weight (imperial)9.6 lb

Weight (metric)4.3 kg

Product Dimensions (imperial)13.80 x 17.42 x 1.73 in

Product Dimensions (metric)35.05 x 44.25 x 4.4 cm

Operating Temperature0-40°C, 0-10,000 ft


ARUBA INSTANT ON 1960 12XGT 4SFP+ SWITCH
