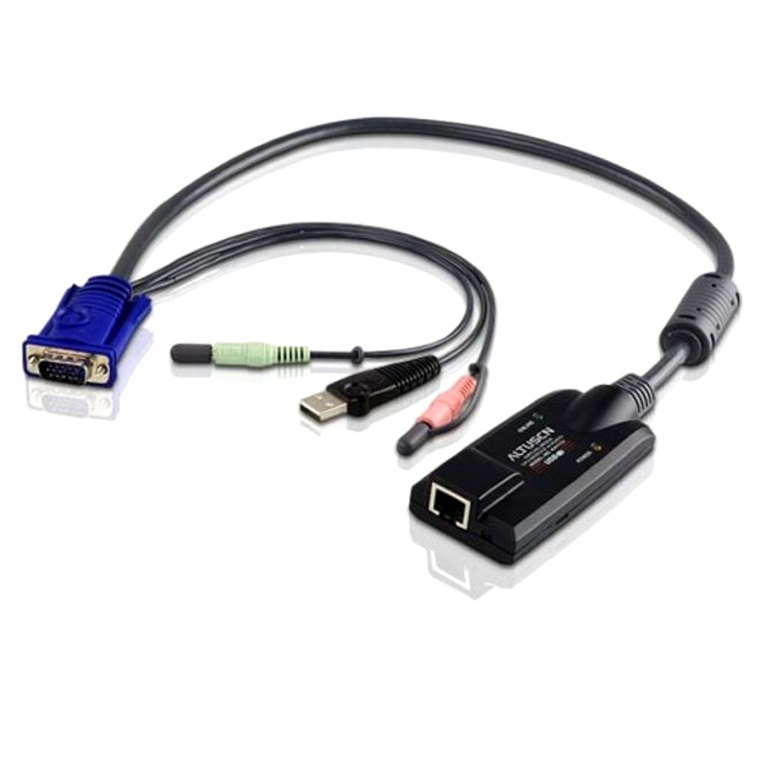

Aten KVM Cable Adapter with RJ45 to VGA, USB & Audio to suit KNxxxxV, KM0932 series (KA7176-AX)
The KA7176 KVM Adapter Cable connects the KVM switch to the video, USB and audio
ports of the target computer. With its small form factor and light weight
design, it represents the next generation of KVM Adapter Cables - offering
superior signal compensation and delay skew techniques for greatly enhanced
video quality.
Auto Signal Compensation (ASC), no DIP switch setting needed for the different
distances
Keyboard and mouse emulation - keeps your server functioning smoothly when it is
disconnected from the switch's KVM port or relocated to different KVM port
Lifetime firmware upgrades
Superior video quality - supports resolution up to 1920 x 1200 (Reduced
blanking)*
Built in ASIC for greater reliability and compatibility
CPU module designed with automatic conversion to allow for flexible interface
combinations (PS/2, USB) to control all computer OS types (Windows, Mac, Sun)
Compact size
Virtual Media Support
Audio enabled
* This maximum resolution may vary depending on the transmission distance. For
more details, please refer to the product pages of the connected KVM switches.
Compatible With Below:
KL1108V, KL1116V, KM0532, KM0932, KN1108VA, KN1116VA, KN1132V, KN2116A,
KN2116VA, KN2124VA, KN2132VA, KN2140VA, KN2140v, KN4116VA, KN4124VA, KN4132,
KN4132VA, KN4140VA, KN4164V, KN8132V, KN8164V, RCM416, RCM464V, RCM816, KM0032,
KN1108v, KN1116v, KN2116v, KN2124v, KN2132, KN2132v, KN4116, KN4116v, KN4124v,
KN4132v, KN4140v
Connectors | |
Link | 1 x RJ-45 Female |
Computer |
1 x USB Type A Male 1 x HDB-15 Male 2 x Mini Stereo Plug |
LEDs | |
Online | 1 (Green) |
Power | 1 (Orange) |
Environmental | |
Operating Temperature | 0–50°C |
Storage Temperature | -20–60°C |
Physical Properties | |
Housing | Plastic |
Weight | 0.17 kg ( 0.37 lb ) |
Dimensions (L x W x H) |
9.00 x 4.30 x 2.18 cm (3.54 x 1.69 x 0.86 in.) |
