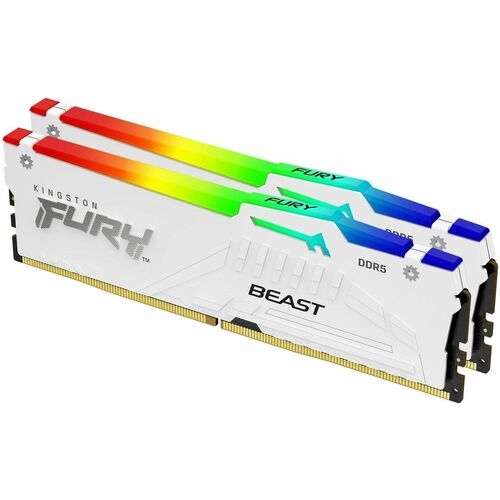

Kingston FURY KF560C30BWEAK2-32 is a kit of two 2G x 64-bit (16GB) DDR5-6000 CL30 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 32GB. Each module has been tested to run at DDR5-6000 at a low latency timing of 30-36-36 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

• Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
• EXPO Profile #0: DDR5-6000 CL30-36-36 @1.4V
• EXPO Profile #1: DDR5-5600 CL40-40-40 @1.25V
• XMP Profile #1: DDR5-6000 CL30-36-36 @1.4V
• XMP Profile #2: DDR5-5600 CL40-40-40 @1.25V

DEFAULT FEATURES

• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• /On-Die ECC
• Height 1.66" (42.23mm), w/heatsink

• DIMM 32 GB of memory to maintain symmetry with processor and hard drive and bring out the ultimate computing experience
• Up to 6000 MHz speed with Unbuffered signal for playing the latest games and using heavy software
• The DDR5 SDRAM efficiently move data across electric components and provide smooth PC performance
