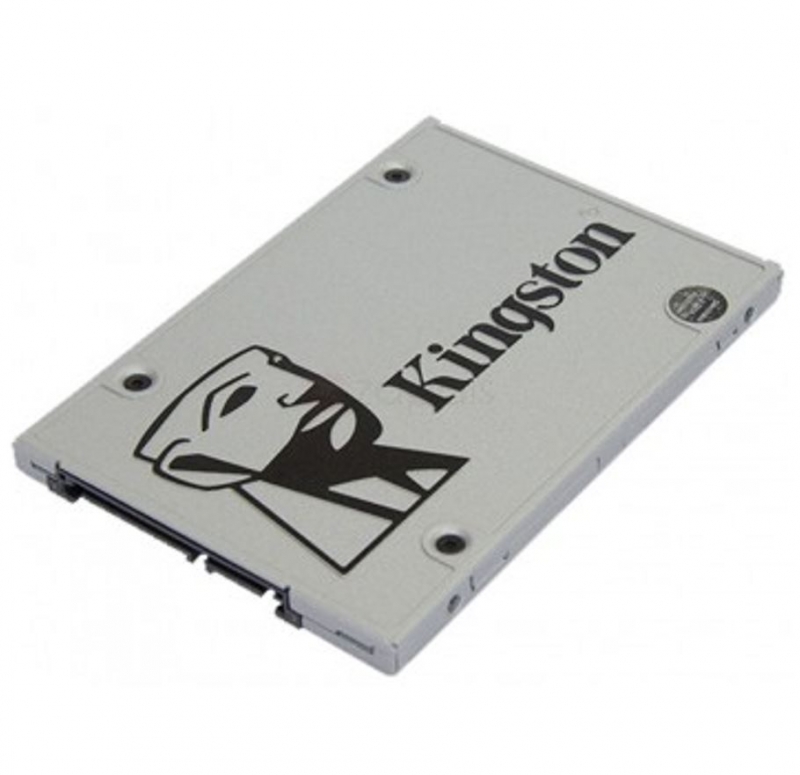

Kingston Suv500 120gb 2.5" Sata3 Ssd - 3d Nand 7m 6gb/ S 520/ 320mb/ S 79k/ 18k Iops 1 Mil Hrs
SKU
264919
Brand
Warranty
1 Year Manufacturer's return to base
No Longer Available
$54.00
Buy Now And Earn 54 Reward Points!
QUICK OVERVIEW
MTBF Solid State Drive 5yrs wty SUV500/120G
UV500 SSD
Kingston’s UV500 SSD dramatically improves your system’s responsiveness with incredible boot, loading, and transfer times compared to mechanical hard drives. It uses a Marvell 88SS1074 controller and 3D NAND Flash to power through daily tasks and improve productivity. UV500 also provides end-to-end data protection using 256-bit AES Hardware-based encryption and support for TCG Opal 2.0 security management solutions. The UV500’s available in multiple capacities from 120GB–1.92TB1 giving you options to meet your system’s needs.
- Next-Gen 64-layer, 3D TLC NAND
- AES 256-bit Hardware Encryption Self-Encrypting Drive (SED) and TCG Opal 2.0
- Available in multiple form factors (2.5”/M.2/mSATA)
- 10X faster than a 7200RPM hard drive2
- Multiple capacities up to 1.92TB1
- GDPR Ready
- 5 year warranty3
| Drive Performance | |
|---|---|
| Maximum Read Transfer Rate: | 520 MB/s |
| Maximum Write Transfer Rate: | 320 MB/s |
| General Information | |
|---|---|
| Brand Name: | Kingston |
| Manufacturer Part Number: | SUV500/120G |
| Manufacturer Website Address: | http://www.kingston.com |
| Manufacturer: | Kingston Technology Company |
| Product Model: | UV500 |
| Product Name: | UV500 SSD |
| Product Type: | Solid State Drive |
| Interfaces/Ports | |
|---|---|
| Drive Interface Standard: | SATA/600 |
| Drive Interface: | SATA |
| Miscellaneous | |
|---|---|
| Device Supported: | Desktop PC |
| Notebook | |
| Network & Communication | |
|---|---|
| Wireless LAN: | No |
| Physical Characteristics | |
|---|---|
| Depth: | 100.1 mm |
| Drive Type: | Internal |
| Drive Width: | 2.5" |
| Height: | 7 mm |
| Weight (Approximate): | 41 g |
| Width: | 69.9 mm |
| Power Description | |
|---|---|
| Operating Power Consumption: | 2.32 W |
Kingston SUV500 120GB 2.5" SATA3 SSD - 3D NAND 7m 6Gb/s 520/320MB/s 79K/18K IOPS 1 mil hrs MTBF Solid State Drive 5yrs wty
Kingston’s UV500 SSD dramatically improves your system’s responsiveness with incredible boot, loading, and transfer times compared to mechanical hard drives. It uses a Marvell 88SS1074 controller and 3D NAND Flash to power through daily tasks and improve productivity. UV500 also provides end-to-end data protection using 256-bit AES Hardware-based encryption and support for TCG Opal 2.0 security management solutions. The UV500’s available in multiple capacities from 120GB–1.92TB1 giving you options to meet your system’s needs.
10X faster than a 7200RPM hard drive2
AES 256-bit Hardware Encryption Self-Encrypting Drive (SED) and TCG Opal 2.0
Available in multiple form factors (2.5”/M.2/mSATA)
Multiple capacities up to 1.92TB1
Form factor: 2.5”/M.2 2280/mSATA
Interface:
SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s)
Capacities1: 120GB, 240GB, 480GB, 960GB, 1.92TB
Controller: Marvell 88SS1074 Controller
NAND: 3D TLC
Encryption: Encryption Support (AES 256-bit)
Sequential Read/Write2:
120GB — up to 520/320MB/s
240GB — up to 520/500MB/s
480GB — up to 520/500MB/s
960GB — up to 520/500MB/s
1.92TB — up to 520/500MB/s
Maximum 4K Read/Write2:
120GB — up to 79,000/18,000 IOPS
240GB — up to 79,000/25,000 IOPS
480GB — up to 79,000/35,000 IOPS
960GB — up to 79,000/45,000 IOPS
1.92TB — up to 79,000/50,000 IOPS
Power Consumption: 0.195W Idle / 0.5W Avg / 1.17W (MAX) Read / 2.32 W (MAX) Write
Dimensions:
100.1mm x 69.85mm x 7mm (2.5”)
80mm x 22mm x 3.5mm (M.2)
50.8mm x 29.85mm x 4.85mm (mSATA)
Operating temperature:
0°C~70°C
Storage temperature:
-40°C~85°C
Vibration operating:
2.17G Peak (7–800Hz)
Vibration non-operating:
20G Peak (10–2000Hz)
Life expectancy: 1 million hours MTBF
Warranty/support3:
Limited 5-year warranty with free technical support
Kingston’s UV500 SSD dramatically improves your system’s responsiveness with incredible boot, loading, and transfer times compared to mechanical hard drives. It uses a Marvell 88SS1074 controller and 3D NAND Flash to power through daily tasks and improve productivity. UV500 also provides end-to-end data protection using 256-bit AES Hardware-based encryption and support for TCG Opal 2.0 security management solutions. The UV500’s available in multiple capacities from 120GB–1.92TB1 giving you options to meet your system’s needs.
10X faster than a 7200RPM hard drive2
AES 256-bit Hardware Encryption Self-Encrypting Drive (SED) and TCG Opal 2.0
Available in multiple form factors (2.5”/M.2/mSATA)
Multiple capacities up to 1.92TB1
Form factor: 2.5”/M.2 2280/mSATA
Interface:
SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s)
Capacities1: 120GB, 240GB, 480GB, 960GB, 1.92TB
Controller: Marvell 88SS1074 Controller
NAND: 3D TLC
Encryption: Encryption Support (AES 256-bit)
Sequential Read/Write2:
120GB — up to 520/320MB/s
240GB — up to 520/500MB/s
480GB — up to 520/500MB/s
960GB — up to 520/500MB/s
1.92TB — up to 520/500MB/s
Maximum 4K Read/Write2:
120GB — up to 79,000/18,000 IOPS
240GB — up to 79,000/25,000 IOPS
480GB — up to 79,000/35,000 IOPS
960GB — up to 79,000/45,000 IOPS
1.92TB — up to 79,000/50,000 IOPS
Power Consumption: 0.195W Idle / 0.5W Avg / 1.17W (MAX) Read / 2.32 W (MAX) Write
Dimensions:
100.1mm x 69.85mm x 7mm (2.5”)
80mm x 22mm x 3.5mm (M.2)
50.8mm x 29.85mm x 4.85mm (mSATA)
Operating temperature:
0°C~70°C
Storage temperature:
-40°C~85°C
Vibration operating:
2.17G Peak (7–800Hz)
Vibration non-operating:
20G Peak (10–2000Hz)
Life expectancy: 1 million hours MTBF
Warranty/support3:
Limited 5-year warranty with free technical support
