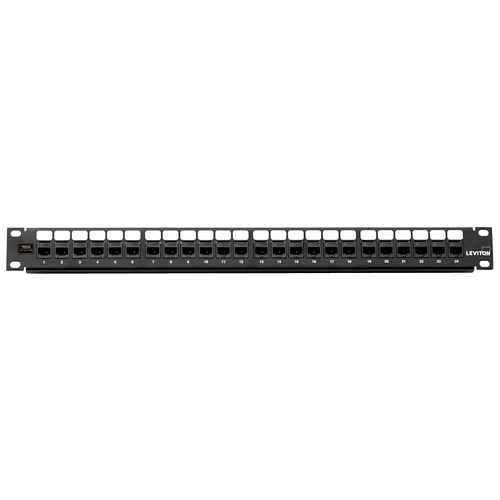

LEVITON | 1RU 24-Port Cat 6 Flat QUICKPORT™ Patch Panel *Cable Management Bar Included* | Black - LE-69270-U24

SKU
422614
Brand
Leviton
Manufacturer Link
MPN
LE-69270-U24
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$282.00
Buy Now And Earn 282 Reward Points!
Add to Compare

Leviton | 69270-U24 | 1RU 24-Port Cat 6 Flat QUICKPORT™ Patch Panel *Cable Management bar included* | Black

Leviton Flat QUICKPORT Patch Panels are designed for use on standard 19-inch racks and cabinets. The patch panels are kitted with EXTREME Cat 6 connectors, which include patented Retention Force Technology to promote consistent performance over the life of the system. The unique configurable panel design allows for quick single-circuit replacement or reconfiguration. This panel also allows for insertion of alternative QUICKPORT connectors to customize the application. The Cat 6 system is designed for use in high megabit applications such as Gigabit Ethernet.

FEATURES

  • Kitted with EXTREME Cat 6 connectors (black)
  • Patented Retention Force Technology™ protects tines from damage from 4- or 6-pin plugs
  • Craft-friendly installation
  • Terminates 26-22 gauge solid conductors
  • Front write on labeling areas
  • IEEE 802.3at (Type 1) Power over Ethernet (PoE) applications up to 15.4 watts
  • IEEE 802.3at (Type 2) Power over Ethernet (PoE+) applications up to 30 watts
  • IEEE 802.3bt (Type 3) Power over Ethernet (PoE+) applications up to 60 watts
  • IEEE 802.3bt (Type 4) Power over Ethernet (PoE+) applications up to 100 watts
  • Cisco Universal Power Over Ethernet (UPOE) applications up to 60 watts
  • Power over HDBaseTTM (POH) applications up to 100 watts

SPECIFICATIONS

  • Category: Cat 6
  • Colour: Black
  • Labeling: Silk-screened port numbers, white labels
  • Panel Shape: Flat
  • Ports: 24
  • RU: 1
  • Shielding: Unshielded
  • Termination: QuickPort

PATENTS

  • ECD147723-0001
  • GB2562884
  • MX249737
  • MX295578
  • TWI285985
  • US6786776
  • US7278879
  • US7547227
  • US7980890

This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.

WARRANTY

1-year limited warranty



Specifications

More Information
SKU LE-69270-U24
Brand Leviton
Manufacturer Part# 69270-U24
GTIN 078477385821
Rack RU Size 1RU
Total Ports 24
Colour Black
Cable Category CAT6
Country of Origin United States
Warranty 1 Year
