Lenkeng Hdmi Wireless 200 Metre 4K Wireless Hdbitt Hdmi Transmitter & Receiver Kit With Ir With
No Longer Available
QUICK OVERVIEW

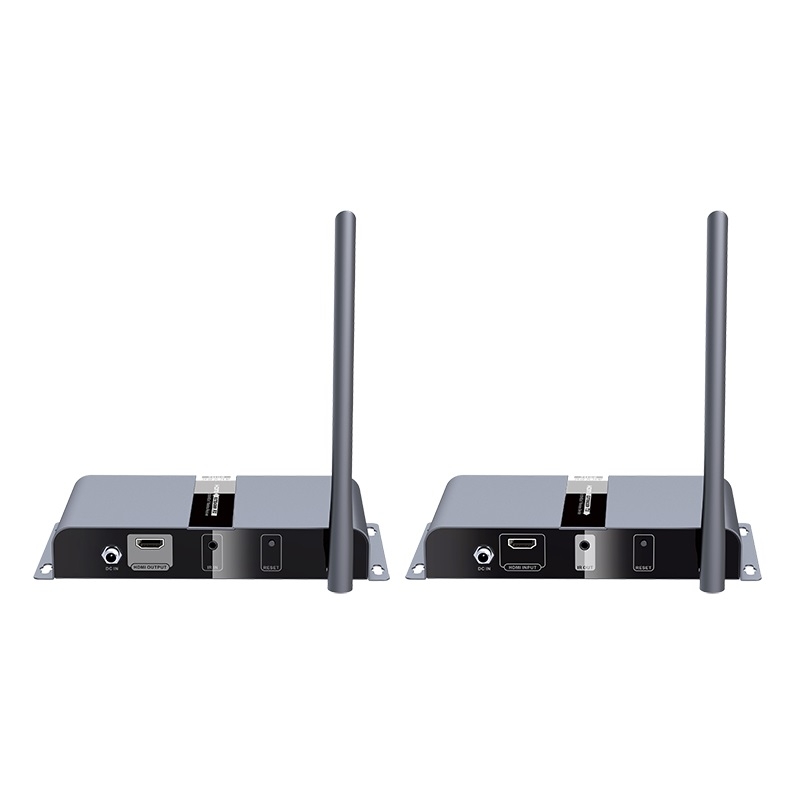

Lenkeng LKV398 HDMI Wireless Extender
Features
- Extend HDMI signal wirelessly
- 200m long transmission distance
- HDMI 2.0 and HDCP2.2 compliant
- High resolution up to 4K×2K@60Hz ultra HD
- Support point to point and point to multi-point configuration (1 TX to 2 RX)
- Strong anti-interference ability by running at 5.1~5.8GHz operation frequency
- IR passback with 20-60KHz wide frequency to control source device from receiver side easily
This transmitter extends HDMI signal wirelessly from source device to display device up to 200meters with the advanced application of HDbitT transport protocol and wireless technology. The signal resolution up to 4Kx2K@60Hz. It requires no cables between sender (TX) and receiver (RX) which makes the installation easy and clean.
Note:
1) Transmission distance will be different due to the environment.
2) Wall, brick or glass will shorten the signal cover range or cause big signal loss.
Connection

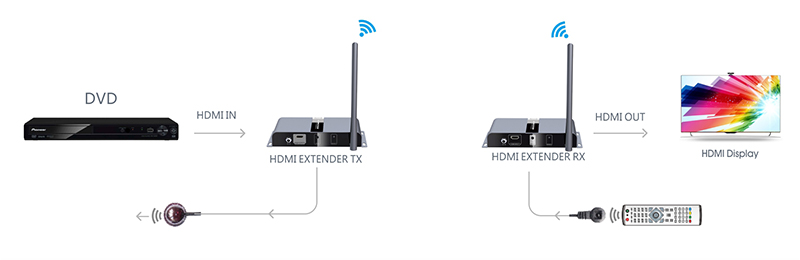

1. Point to Point connection

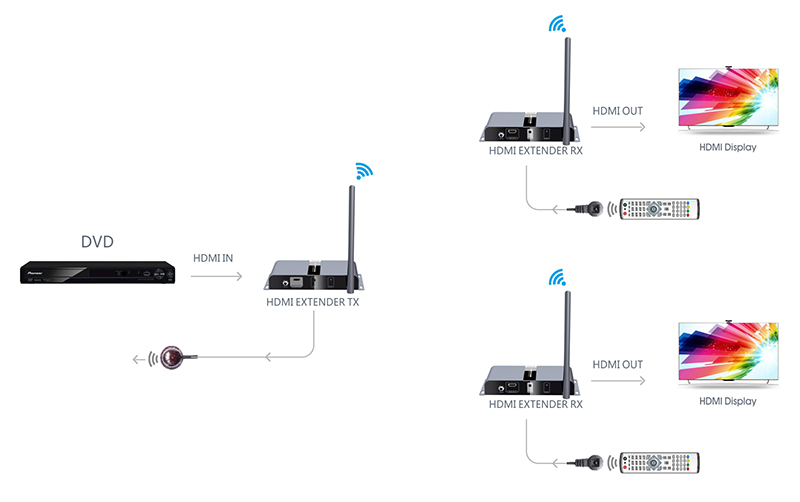

2. Point to Multi-point connection
Specifications
| Voltage/Current | DC5V/3.5A |
| Power consumption | TX11W RX12W |
| HDMI compliance | HDMI2.0 |
| HDCP compliance | HDCP2.2 |
| HDMI connector | Type A, female |
| HDMI input resolution supported | 480i@60Hz480p@60Hz |
|
| 576i@50Hz576p@50Hz |
|
| 720p@50/60Hz1080i@50/60Hz |
|
| 1080p@50/60Hz4Kx2K@24/25/30/ |
|
| 60Hz |
| HDMI output resolution supported | 1080p@60Hz4Kx2K@30/60Hz |
| Audio formats supported | L/R stereo audio |
| Maximum transfer rate | 18Gbps |
| Input and output TMDS signal | 0.71.5Vp-p(TMDS) |
| Input and output DDC signal | 5Vp-p(TTL) |
| Input cable length supported | ≤5m(AWG24 HDMI2.0cable standard) |
| Output cable length supported | ≤5m(AWG24 HDMI2.0cable standard) |
| IR remote control | Support IR passback with 20-60KHz frequency |
| Transmission method | 5.15.8G Wireless transmission |
| Transmission distance | 200 Meters |
| Latency | ≤200 ms |
| Electrostatic protection of the whole machine | 1a Contact discharge level 3 |
|
| 1b Air discharge level 3 |
|
| Standard: IEC61000-4-2 |
| Working temperature | 050℃ |
| Storage temperature | -1070℃ |
| Humidity (no condensation) | 090% |
| Dimension | 195.4(D) x138.3(W) x 30.8(H)mm |
| Material | Iron alloy material + crystal panel |
| Finishing | Grit blast |
| Colour | Black |
| Weight | TX560gRX550g |
| Mean time between failures (MTBF) | >30000 Hours |
