Lenovo Rackswitch G7028 (rear To Front) 7159bax

SKU
258569
Brand
MPN
7159BAX
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$1,811.00
Buy Now And Earn 1811 Reward Points!

Abstract

The Lenovo RackSwitch™ G7028 is an inexpensive, entry-level Layer 2 1/10 Gb Ethernet switch that is designed for the data center. Data center customers continue to deploy applications by using 1 GbE networking switches while 10 GbE continues to grow for customer solutions that require greater I/O bandwidth. The RackSwitch G7028 is an ideal solution for data center customers who need an economical 1 Gb and 10 Gb connectivity solution.

This product guide provides essential pre-sales information to understand the structure of the RackSwitch G7028 offering, its key features and specifications, components and options, and configuration guidelines.

This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the RackSwitch G7028 and consider its use in IT solutions.

Notes:

  • This Product Guide describes currently available models of the Lenovo RackSwitch G7028 that support Networking OS version 8.x onwards.
  • For withdrawn (no longer available for ordering) RackSwitch G7028 models that support Networking OS up to version 7.x, see the Lenovo Press Product Guide RackSwitch G7028.

Change History

Changes in the May 2 update:

  • Added SFP+ Active Optical Cables
  • Updated Storage connectivity
  • Updated documentation links

Introduction

The Lenovo RackSwitch™ G7028 is an inexpensive, entry-level Layer 2 1/10 Gb Ethernet switch that is designed for the data center. Data center customers continue to deploy applications by using 1 GbE networking switches while 10 GbE continues to grow for customer solutions that require greater I/O bandwidth. The RackSwitch G7028 is an ideal solution for data center customers who need an economical 1 Gb and 10 Gb connectivity solution.

The RackSwitch G7028 (see the following figure) is a top-of-rack data center switch that delivers excellent non-blocking, wire speed performance at an attractive price point. It supports 24x 10/100/1000BASE-T RJ-45 ports and four 10 Gigabit Ethernet SFP+ ports standard, while typically using only 45 watts of power. The RackSwitch G7028 is also designed with rear-to-front airflow, which allows for flexible mounting of the switch in a rack cabinet and provides convenient cable management and significant savings in cooling costs.

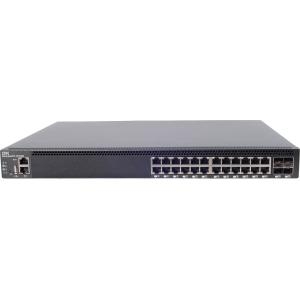

Lenovo RackSwitch G7028

Figure 1. Lenovo RackSwitch G7028

Did you know?

The RackSwitch G7028 is designed with non-blocking, line-rate throughput.

The RackSwitch G7028 supports an optional external redundant power supply with the Lenovo RackSwitch G7000 Redundant Power Supply option.

The RackSwitch G7028 is designed specifically for the data center environment with server-matching airflow, cost-effective Layer 2 switching and ease of configuration management.

Networking Operating System software features deliver seamless, standards-based integration into upstream switches.

Key features

The RackSwitch G7028 switch is considered particularly suited for the following customers:

  • Customers who want to use GbE in their infrastructure (servers and networking)
  • Customers who are implementing a virtualized environment and require multiple GbE ports
  • Customers who require investment protection for 10 GbE ports
  • Customers who want to reduce total cost of ownership (TCO) and improve performance while maintaining high levels of availability and security
  • Customers who want to avoid or minimize oversubscription, which can result in congestion and loss of performance
  • Customers who want to implement a converged infrastructure with NAS or iSCSI

The G7028 switch offers the following key features and benefits:

  • Increases network performance

    The RackSwitch G7028 provides up to 128 Gbps of switching throughput, supports four SFP+ 10 Gb uplink ports for zero oversubscription, and has a port to port latency of 3.3 microseconds.

  • Lower power and exceptional cooling

    The RackSwitch G7028 typically uses only 45 W of power. Unlike side-cooled switches, which can cause heat recirculation and reliability concerns, the RackSwitch G7028 switch's rear-to-front cooling design reduces data center air conditioning costs by matching airflow to the server’s configuration in the rack.

  • Fault tolerance

    These switches learn alternative paths automatically and perform faster convergence if there is a link, switch, or power failure. The switch uses technologies, such as Virtual Link Aggregation, L2 trunk failover, and Hot Links.

  • Seamless interoperability

    RackSwitch switches interoperate seamlessly with other vendors' upstream switches.

Basic
Brand Name: Lenovo
Ethernet Technology: 10 Gigabit Ethernet
Expansion Slot Type: SFP+
Form Factor: Rack-mountable
Layer Supported: 2
Manageable: Yes
Media Type Supported: Optical Fiber
Network Technology: 1000Base-LX
  10GBase-LR
Number of Total Expansion Slots: 4
Port/Expansion Slot Details: 10 Gigabit Ethernet
Power Source: Power Supply
Product Family: RackSwitch
Product Type: Ethernet Switch
Redundant Power Supply Supported: Yes
Stack Port: No
Total Number of Network Ports: 24
General Information
Brand Name: Lenovo
Manufacturer Part Number: 7159BAX
Manufacturer Website Address: http://www3.lenovo.com/au/en
Manufacturer: Lenovo Group Limited
Packaged Quantity: 1
Product Line: RackSwitch
Product Model: G7028
Product Name: RackSwitch G7028 Ethernet Switch
Product Type: Ethernet Switch
I/O Expansions
Expansion Slot Type: SFP+
Number of SFP+ Slots: 4
Number of Total Expansion Slots: 4
Interfaces/Ports
Modular: No
Port/Expansion Slot Details: 10 Gigabit Ethernet
Stack Port: No
Total Number of Network Ports: 24
Uplink Port: Yes
Management & Protocols
Manageable: Yes
Media & Performance
Ethernet Technology: 10 Gigabit Ethernet
  Gigabit Ethernet
Media Type Supported: Optical Fiber
  Twisted Pair
Network Technology: 1000Base-LX
  1000Base-T
  10GBase-LR
Network & Communication
Layer Supported: 2
Physical Characteristics
Compatible Rack Unit: 1U
Depth: 382 mm
Form Factor: Rack-mountable
Height: 44 mm
Weight (Approximate): 5.30 kg
Width: 440 mm
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
