Lenovo Thinksystem 10gb 4-port Base-t Lom 7zt7a00549
No Longer Available
Abstract
The Intel Ethernet Connection X722 is a network controller embedded into the Intel C624 "Lewisburg" PCH chipset of Lenovo ThinkSystem servers. The controller connects to available 10 GbE and 1 Gigabit Ethernet LOM adapter cards and onboard connectors to provide a comprehensive 1 GbE / 10 GbE networking solution for ThinkSystem customers.
This product guide provides essential presales information to understand the X722 controller and ThinkSystem LOM adapter offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ThinkSystem Ethernet solution and consider its use in IT solutions.
Change History
Changes in the June 23 update:
- Removed the following SFP28 25Gb Active Optical Cables as unsupported:
- Lenovo 3m 25G SFP28 Active Optical Cable, 7Z57A03541
- Lenovo 5m 25G SFP28 Active Optical Cable, 7Z57A03542
- Lenovo 10m 25G SFP28 Active Optical Cable, 7Z57A03543
- Lenovo 15m 25G SFP28 Active Optical Cable, 7Z57A03544
- Lenovo 20m 25G SFP28 Active Optical Cable, 7Z57A03545
Introduction
The Intel Ethernet Connection X722 is a network controller embedded into the Intel C624 "Lewisburg" PCH chipset of Lenovo ThinkSystem servers. The controller connects to available 10 GbE and 1 Gigabit Ethernet LAN-on-motherboard (LOM) adapter cards and onboard connectors to provide a comprehensive 1 GbE / 10 GbE networking solution for ThinkSystem customers.
ThinkSystem servers support either 10 Gb Ethernet copper or optical connections, or Gigabit Ethernet connections depending on the server model.

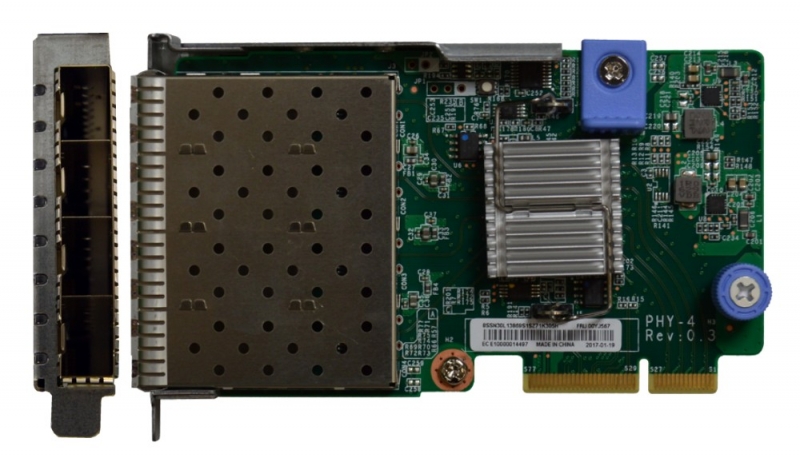

The following figure shows the ThinkSystem 10Gb 4-port SFP+ LOM adapter which provides four SFP+ cages for optical or direct-attach copper (DAC) connectivity.
Figure 1. ThinkSystem 10Gb 4-port SFP+ LOM adapter (Port 1 at the top)
Did you know?
The Intel Ethernet Connection X722 shares the same driver package as the Intel X710 adapters making driver management easier for existing customers.
ThinkSystem LOM adapters are cost-effective adapters that take advantage of the X722 controller embedded in Intel Xeon Processor Scalable Family chipset and offer the flexibility advantages of a PCIe adapter while supporting integrated networking features, such as Wake-on-LAN and direct connectivity to the XClarity Controller management processor for NC-SI-compliant systems management.
| General Information | |
|---|---|
| Brand Name: | Lenovo |
| Manufacturer Part Number: | 7ZT7A00549 |
| Manufacturer Website Address: | http://www3.lenovo.com/au/en |
| Manufacturer: | Lenovo Group Limited |
| Product Name: | ThinkSystem 10Gb 4-port Base-T LOM |
| Product Type: | 10Gigabit Ethernet Card |
| Interfaces/Ports | |
|---|---|
| Host Interface: | PCI Express |
| Number of Network (RJ-45) Ports: | 4 |
| Total Number of Ports: | 4 |
| Media & Performance | |
|---|---|
| Media Type Supported: | Twisted Pair |
| Miscellaneous | |
|---|---|
| Country of Origin: | China |
| Device Supported: | Server |
| Environmental Certification: | China RoHS |
| Environmentally Friendly: | Yes |
| Network & Communication | |
|---|---|
| Network Technology: | 10GBase-T |
| Physical Characteristics | |
|---|---|
| Form Factor: | Plug-in Card |
| Warranty | |
|---|---|
| Limited Warranty: | 1 Year |
