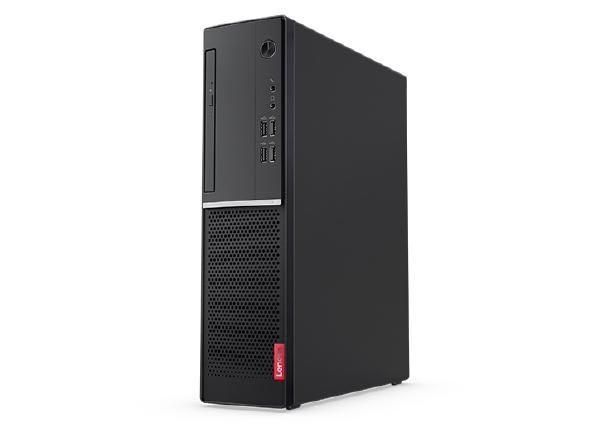

Lenovo V520 SFF - 10NM005XAU - Intel Core i5-7400 / 8GB / 128GB SSD / Intel HD Graphics 640 / W10 Pro
No Longer Available
QUICK OVERVIEW
Features
Smaller Size, Bigger Statement
The V520s small form factor desktop is significantly smaller than a traditional tower but has the same storage capacity as the V520 tower. That means a space-saving system that frees up valuable room on your desk.
Even the Small Things Count
With forward-facing USB ports (4 x USB 3.0), the V520s lets you connect other devices for charging or transferring data, quickly and easily.
A Companion By Any Other Name
The V520s small form factor includes the Lenovo Companion app, your one-stop guide to maximising system performance. This app ensures that your PC remains current on critical updates, while also providing key system information like serial number, user guides, and warranty details in one convenient location. Lenovo Companion also offers insight and advice from Lenovo experts via tutorials, articles, and the latest tech news.
Go Green, Save Green
The V520s is engineered for energy-efficiency. Thanks to Energy Star 6.1 and GREENGUARD® certifications, power consumption is reduced, which translates to cost savings for you.
More Powerful Than a Speeding Locomotive
With the responsiveness and efficiency of 7th generation Intel® Core™ processors, you can switch effortlessly between your favorite apps on your V520s—increasing your productivity or creativity levels along the way.
If It Ran Any Faster, It Might Win a Marathon
The V520s comes with the option of the latest in Solid State Drive (SSD) technology, PCIe SSD. Compared to regular hard drives and SSDs, PCIe enhances performance and runs everything faster—including booting up, running apps, and transferring files.
Hang Would-Be Data Thieves Out to Dry
With Smart USB Protection, you can prevent sensitive data from leaking and ensure that nothing malicious enters your system or network through USB ports. You can even restrict port access on your V520s, while still allowing use of the keyboard and mouse.
Peace of Mind Hardwired In
Every V520s small form factor includes Trusted Platform Module—or TPM—hardwired in. The international standard for securing hardware, TPM delivers extra peace of mind should your PC ever fall into the wrong hands or should someone try to tamper with it.
| Model | Lenovo V520 SFF |
| Platform | SFF |
| Classification | Business |
| Operating System | Windows 10 Pro 64-bit |
| Processor | Intel Core i5-7400 |
| CPU Clock Speed | 3.00 GHz |
| Chipset | B250 |
| Memory (Installed / Max) | 8GB / 32GB |
| Memory Type | DDR4 |
| Memory Speed | 2400 MHz |
| Memory Interface | 2 x 288-pin DIMM sockets |
| Memory Slots (Used / Total) | 1 / 2 |
| Graphics | Intel HD Graphics 630 |
| Dedicated Video Memory | Shared |
| Storage | 128GB SSD |
| Optical | Slim DVD-Burner |
| Audio | HD Audio, Realtek ALC662 codec |
| Speakers | Internal speaker (1.5 watt) |
| LAN | Realtek RTL8111GN |
| Wireless | Intel Dual Band Wireless-AC 3165, 1x1 |
| Bluetooth | Bluetooth 4.1 |
| Modem | None |
| Keyboard | Yes |
| Mouse | Yes |
| Card Slots | WLAN (1), SSD/Optane (1) |
| Connectivity | USB 3.0 (2), USB 2.0 (2), Serial (9-pin) (1), RJ45 (1), VGA (1), mic-in (1), line-in (1) |
| Outputs | DisplayPort (1), HDMI (1) |
| Unit Dimensions (W x H x D mm) | 145 x 366 x 293 |
| Weight (Kg) | 6 |
| Warranty | 1-1-1 |
⚫Intel Core i5-7400 Processor (6M Cache, 3.0GHz, max 3.5GHz)
⚫128GB M.2 Solid State Drive (SSD)
⚫8GB DDR4 2400
⚫Intel HD Graphics 630
⚫Windows 10 Pro 64-bit
⚫1-year onsite warranty
