OPTEX LX-402 12M 120 DEG PIR WITH PET ALLEY OUTDOOR -1YR
No Longer Available

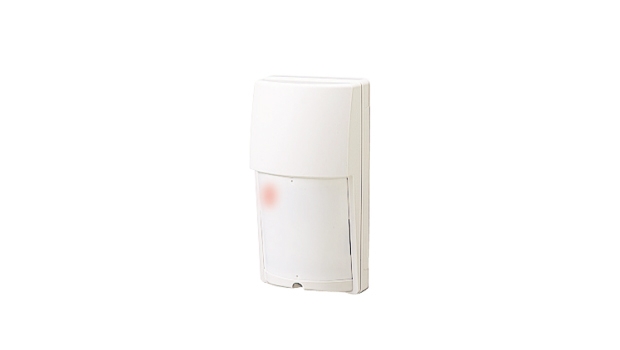

LX-402 Wide angle 12m @ 120 Degrees PIR detector
Robust, weatherproof and specifically designed for short-range outdoor applications. With wide-angle and long-range options, advanced features such as sensitivity and range adjustment and a built-in light sensor providing day and night modes, the LX series is highly versatile. An ingenious mirror assembly provides a pet alley configuration and Double Conductive Shielding ensures that the sensor is resistant to interference from foreign light sources such as the sun and car headlights.
Features:
- Double conductive shielding
- Selectable detection patterns (pet alley or multi-level)
- Area-masking strips (LX-402 only)
- Sensitivity selection switch (high, mid and low)
- Selectable pulse count (test or 2)
- Day & night modes
| Model | LX-402 |
| Coverage | 12 m x 15 m 120° wide |
| Detection zones | Multi-level area : 40 zones / Pet alley area : 18 zones |
| Sensitivity | Selectable 3 position (High / Middle / Low) |
| Detectable speed | 0.3 m - 1.0 m/sec. |
| Power supply | 10.8 - 13.2 VDC |
| Current consumption | 25 mA max. |
| Alarm period | 2 ±1 sec. (delay timer) |
| Alarm output | N.C. N.O. 28 VDC 0.2 A max. |
| Tamper switch | N.C. opens when cover is removed |
| Pulse count | 2 (20 ±5 sec.) or TEST (1 pulse) |
| Warm up period | Approx. 60 sec. |
| LED indicator | LED lights during detection |
| Operating temperature | -20°C to +50°C |
| Environmental humidity | 95% max. |
| Mounting height | Multi-level area : 2.5 m max. |
| Pet alley area : 1 2 m - 1 5 m | Pet alley area : 1.2 m - 1.5 m |
| Mounting | Wall |
| Weight | 170 g |
| Dimensions (H x W x D) | 141 mm x 74.8 mm x 53.5 mm |
| Weatherproof | IP54 |
