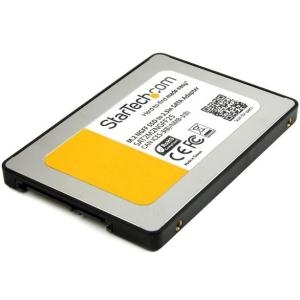

Startech M.2 Ssd To 2.5in Sata Iii Adapter With Protective Housing - Ngff Solid State Drive To 2.5in SAT2M2NGFF25
QUICK OVERVIEW
Vastly increase system performance by replacing your 2.5” SATA hard drive with an M.2 solid state drive, using the SAT2M2NGFF25 M.2 SSD to SATA adapter.
The M.2 to SATA adapter features an enclosed housing that adds protection to your NGFF (Next Generation Form Factor) SSD. The added protection gives you the peace of mind to confidently use your M.2 drive in applications that require an added level of durability such as hot-swap drive bays, or external SATA docking stations.
Using an M.2 SSD in place of a platter drive better utilizes the full potential of your SATA III controller, by reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps -- an ideal solution for further increasing the performance of a HyperDuo array.
For wide compatibility with all of the common M.2 solid state drives, the SAT2M2NGFF25 supports multiple drive heights including: 2242, 2260, 2280.
The SAT2M2NGFF25 is backed by a StarTech.com 2-year warranty, and lifetime technical support.
The StarTech.com Advantage
- Added protection for your SSD with enclosed housing
- Maximize system performance by replacing you 2.5in SATA platter drive with an M.2 SSD
- Broad compatibility with support for the most common M.2 NGFF SSD heights (2242, 2260, 2280)
| Connector(s) | |
| Drive Connectors | M.2 SATA (NGFF, B-Key) Receptacle |
| Host Connectors | SATA Data & Power Combo (7+15 pin) Receptacle |
| Environmental | |
| Humidity | 5% to 95% RH |
| Operating Temperature | 0?C to 50?C (32?F to 122?F) |
| Storage Temperature | -10?C to 85?C (14?F to 185?F) |
| Hardware | |
| Compatible Drive Types | M.2 SATA (NGFF, B-Key) |
| Drive Installation | Fixed |
| Interface | SATA |
| Number of Drives | 1 |
| Supported Drive Height(s) | 2242 |
| 2260 | |
| 2280 | |
| Packaging Information | |
| Shipping (Package) Weight | 0.1 kg [0.2 lb] |
| Performance | |
| General Specifications | Not compatible with M.2 NVMe or AHCI PCI-Express SSDs |
| Hot Swap Capability | No |
| Maximum Data Transfer Rate | 6 Gbps |
| Type and Rate | SATA III (6 Gbps) |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Aluminum and Plastic |
| Product Height | 8 mm [0.3 in] |
| Product Length | 98 mm [3.9 in] |
| Product Weight | 50 g [1.8 oz] |
| Product Width | 68 mm [2.7 in] |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | Housing mounting kit |
| Instruction manual | |
| M.2 NGFF SSD to 2.5" SATA Adapter | |
| Mini screw driver | |
| SSD mounting kit | |
Vastly increase system performance by replacing your 2.5” SATA hard drive with an M.2 solid state drive, using the SAT2M2NGFF25 M.2 SSD to SATA adapter.
The M.2 to SATA adapter features an enclosed housing that adds protection to your NGFF (Next Generation Form Factor) SSD. The added protection gives you the peace of mind to confidently use your M.2 drive in applications that require an added level of durability such as hot-swap drive bays, or external SATA docking stations.
Using an M.2 SSD in place of a platter drive better utilizes the full potential of your SATA III controller, by reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps -- an ideal solution for further increasing the performance of a HyperDuo array.
For wide compatibility with all of the common M.2 solid state drives, the SAT2M2NGFF25 supports multiple drive heights including: 2242, 2260, 2280.
The SAT2M2NGFF25 is backed by a StarTech.com 2-year warranty, and lifetime technical support.
