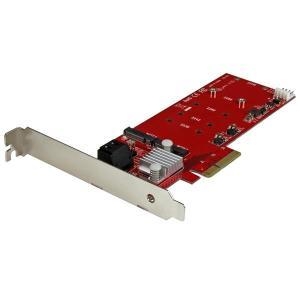

Startech 2x M.2 Ngff Ssd Raid Controller Card Plus 2x Sata Iii Ports- Pcie Pexm2sat3422
SKU
234446
Brand
MPN
PEXM2SAT3422
Warranty
Standard Manufacturer's Warranty
$153.00
Buy Now And Earn 153 Reward Points!
| Hardware | |
| Industry Standards | Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps) |
| Interface | M.2 SATA |
| SATA | |
| Port Style | Integrated on Card |
| Ports | 2 |
| Indicators | |
| LED Indicators | M.2 drive LEDs (Green) |
| Pin headers for LEDs | |
| Packaging Information | |
| Shipping (Package) Weight | 174 g [6.1 oz] |
| Performance | |
| ATAPI Support | Yes |
| Bootable | Yes |
| Number of Drives Supported Through Port Multiplier | 1 to 4 |
| Number of Ports That Support Port Multiplier | 2 (can only use 1 PM at a time) |
| Port Multiplier | Yes |
| RAID | Yes |
| Supported RAID Modes | JBOD - (Just a Bunch of Disks) |
| RAID 0 (Striped Disks) | |
| RAID 1 (Mirrored Disks) | |
| RAID 10 (1+0, Striped set of Mirrored Subset) | |
| Type and Rate | SATA III (6 Gbps) |
| Physical Characteristics | |
| Product Height | 120 mm [4.7 in] |
| Product Length | 180 mm [7.1 in] |
| Product Weight | 68 g [2.4 oz] |
| Product Width | 20 mm [0.8 in] |
| Software | |
| OS Compatibility | Windows? XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS? 10.6 to 10.13 Linux 3.5.x to 4.11.x LTS versions only Note: Connected drives cannot be used as System / Primary drive in Windows Server 2012, 2012 R2, 2016 |
| Special Notes / Requirements | |
| Note | The card's two SATA ports support port multiplier, up to seven drives total (including two M.2 drives). Only one SATA port can use port multiplier at a time, with up to four drives total connected through PM (in a non-RAID configuration) |
| The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5Gbps per lane. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5Gbps per lane. | |
| System and Cable Requirements | PCI Express x4 slot (backward compatible with x8, and x16 slots) |
| What's in the Box | |
| Included in Package | low-profile bracket |
| M.2 mounting screws | |
| M.2 SSD RAID controller card | |
| quick-start guide | |
| Hardware | |
| Industry Standards | PCI Express 2.0 |
| Hardware RAID 0, RAID 1, RAID 10 | |
| Chipset ID | Marvell - 88SE9230 |
| Card Type | Standard Profile (LP bracket incl.) |
| Bus Type | PCI Express |
| Environmental | |
| Storage Temperature | -25?C to 70?C (-13?F to 158?F) |
| Operating Temperature | 5?C to 50?C (41?F to 122?F) |
| Humidity | 20%~80% RH (Non-condensing) |
| Connector(s) | |
| Internal Ports | SP4 (4 pin, Small Drive Power) Male |
| SATA (7 pin, Data) Plug | |
| M.2 SATA (NGFF, B-Key) Receptacle | |
| Connector Type(s) | PCI Express x4 Male |
