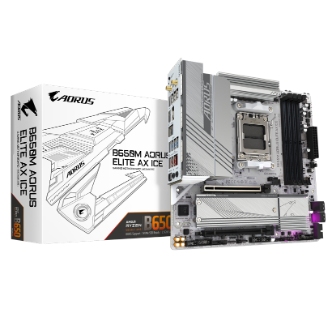

Gigabyte B650M AORUS ELITE AX ICE/AMD AM5/MATX/4x DDR5 up to 192GB/8000MHz/PCIe 4.0 x2/M.2 x2 GA-B650M-A-ELITE-AX-ICE
SKU
434695
Brand
MPN
M/B B650M A ELITE AX ICE 1.0
Warranty
Standard Manufacturer's Warranty
$282.00
Buy Now And Earn 282 Reward Points!
B650M AORUS ELITE AX ICE
Key Features
AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
Unparalleled Performance：Twin 12+2+2 Phases Digital VRM Solution
Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
Superfast Storage：1* PCIe 5.0 x4 and 1* PCIe 4.0 x4 M.2 Connector
Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN & Wi-Fi 6E
Extended Connectivity：HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C® 10Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Specifications
| Audio | Realtek® Audio CODEC High Definition Audio 7.1-channel |
| Chipset | AMD B650 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| I/O Connectors | 2 x SMA antenna connectors, 1 x DisplayPort, 1 x HDMI port, 1 x USB Type-C®, 2 x USB 3.2 Gen 2 Type-A, 5 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 1 x optical S/PDIF Out connector, 2 x audio jacks |
| Integrated CPU Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| PCI Slots | 1 x PCI Express x16 (PCIEX16), 1 x PCI Express x16 (PCIEX4) |
| Processor Support | AMD Socket AM5 for AMD Ryzen™ 7000 Series |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 |
| RAM Type/Bus/Max | 4x DDR5 DIMM, Max 192GB |
| Socket | AM5 |
| Storage Interface | 2 x M.2 Socket 3, 4 x SATA 6Gb/s |
| Warranty | 3 Years |
| Weight | 2.1kg |
| Wireless & Bluetooth |
B650M AORUS ELITE AX ICE/AMD AM5/MATX/4x DDR5 up to 192GB/8000MHz/PCIe 4.0 x2/M.2 x2
