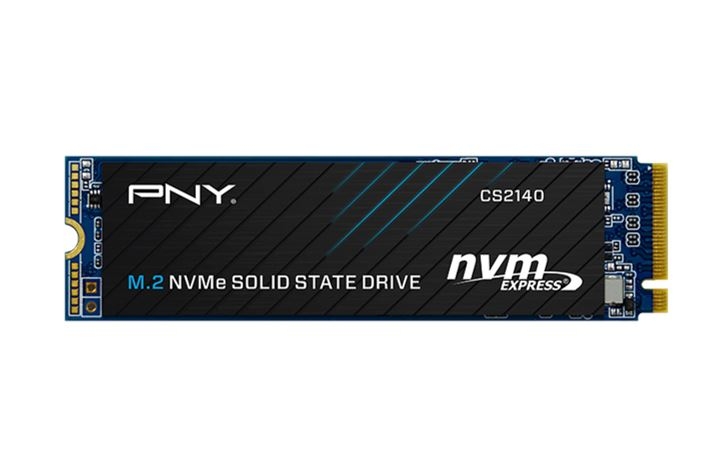

PNY CS2140 1TB NVMe SSD M.2 Gen4x4 3600MB/s 3200MB/s R/W 400TBW 1.5M hrs MTBF 5yrs wty M280CS2140-1TB-CL
PNY CS2140 1TB NVMe SSD M.2 Gen4x4 3600MB/s 3200MB/s R/W 400TBW 1.5M hrs MTBF
5yrs wty
APPLICATIONS
• NVMe Gen4 upgrade from a SATA based solid state drive (SSD) in an
NVMe enabled computer
• High performance SSD with up to double the performance as compared
to entry Gen3 x4 based SSDs
FEATURES AND BENEFITS
• Sequential Read of up to 3,600 MB/s and Write of up to 3,200 MB/s
• Faster boot up, quicker application launch, and better overall system
performance
• Cost effective and high performance is ideal for demanding applications,
games and workloads.
• Backed by a 5 year limited warranty or TBW* & live tech support
PRODUCT SPECIFICATIONS
NAND Components 3D Flash Memory
Interface PCIe Gen4 x4
Form Factor M.2 2280
PERFORMANCE (MAX SEQUENTIAL READ/WRITE)
1TB 3,600 MB/s (Read), 3,200 MB/s (Write)
POWER
PCIe Power Management APST, ASPM, L1.2
ENVIRONMENTAL
Operating Temperature 0°C ~ 70°C
Storage Temperature -40°C ~ 85°C
RELIABILITY/SECURITY
TBW TB: 400,
Mean Time Between
Failures (MTBF) 1,500,000 Hours
Error Correction Code LDPC (Low Density Parity
Check) ECC Algorithm
Secure Erase Standard, Enhanced Secure Erase
Product Health Monitoring Self-Monitoring, Analysis and
Reporting Technology (S.M.A.R.T)
Full End-to-End Data path protection Supported
COMPATIBILITY
RAID (0/1) Supported
NVMe NVMe 1.4
Performance Optimization HMB (Host Memory Buffer)
PRODUCT INFORMATION
Service & Support 5-Year Limited Warranty or TBW*
Usable Capacities (IDEMA) 1TB
