Camera
Image sensor 1/2.3” progressive scan RGB CMOS
Lens Focal length: 1.2 mm, F2.2
Horizontal field of view: 182°
Vertical field of view: 182°
Fixed iris, IR corrected, fixed focus
Day and night Automatic IR-cut filter
Minimum
illumination
Color: 0.19 lux at 50 IRE, F2.2
B/W: 0.04 lux at 50 IRE, F2.2
0 lux with IR illumination on
Shutter speed 1/8100 s to 0.5 s
Camera angle
adjustment
Digital roll: ± 180°
System on chip (SoC)
Model ARTPEC-8
Memory 2048 MB RAM, 8192 MB Flash
Compute
capabilities
Deep learning processing unit (DLPU)
Video
Video
compression
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
H.265 (MPEG-H Part 2/HEVC) Main Profile
Motion JPEG
Resolution Overview: 2992x2992 to 160x160
Panorama: 3840x2160 to 192x72
Double Panorama: 3584x2688 to 512x288
Quad view: 3584x2688 to 384x288
View area 1-4: 2048x1536 to 256x144
Corner right and left: 3200x1200 to 192x72
Double corner: 2880x2880 to 384x288
Corridor: 2560x1920 to 256x144
Frame rate 360° overview up to 2992x2992 without WDR:
25/30 fps @(50/60 Hz)
360° overview and dewarped views up to max resolution with
WDR: up to 25/20 fps @(50/60 Hz)
Video streaming Multiple, individually configurable streams in H.264, H.265 and
Motion JPEG
Axis Zipstream technology in H.264 and H.265
Controllable frame rate and bandwidth
VBR/ABR/MBR H.264/H.265
Video streaming indicator
WDR Forensic WDR: Up to 120 dB depending on scene
Noise reduction Spatial filter (2D noise reduction)
Temporal filter (3D noise reduction)
Image settings Saturation, contrast, brightness, sharpness, local contrast, tone
mapping, white balance, day/night threshold, exposure mode,
exposure zones, compression, mirroring, dynamic text and image
overlay, polygon privacy mask
Image processing Axis Zipstream, Forensic WDR, Lightfinder, OptimizedIR
Pan/Tilt/Zoom Digital PTZ of view areas, digital PT of panorama, corner, corridor
and quad views, preset positions, guard tours
Audio
Audio features Network speaker pairing
Audio
input/output
Audio features through portcast technology: two-way audio
connectivity, voice enhancer
Network
Network
protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa
, HTTP/2,
TLSa
, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS
(Bonjour), UPnP®
, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS,
NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP,
DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local
address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR
System integration
Application
Programming
Interface
Open API for software integration, including VAPIX®, metadata
and AXIS Camera Application Platform (ACAP); specifications at
axis.com/developer-community. ACAP includes Native SDK and
Computer Vision SDK.
One-click cloud connection
ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and
ONVIF® Profile T, specification at onvif.org
Support for Session Initiation Protocol (SIP) for integration with
Voice over IP (VoIP) systems, peer to peer or integrated with
SIP/PBX.
Video
management
systems
Compatible with AXIS Companion, AXIS Camera Station, video
management software from Axis’ Application Development
Partners available at axis.com/vms
Onscreen
controls
Privacy masks
IR illumination
Media clip
Event conditions Device status: above operating temperature, above or below
operating temperature, below operating temperature, casing
open, IP address removed, live stream active, network lost, new
IP address, system ready, within operating temperature
Edge storage: recording ongoing, storage disruption, storage
health issues detected
I/O: digital input is active, digital output is active, manual trigger,
virtual input is active
MQTT: stateless
Scheduled and recurring: schedule
Video: average bitrate degradation, day-night mode, tampering
Event actions Day-night mode: use while the rule is active
I/O: toggle once, toggle while the rule is active
Illumination: use lights, use lights while the rule is active
Images: FTP, HTTP, HTTPS, SFTP, email and network share
MQTT: publish
Notification: HTTP, HTTPS, TCP and email
Overlay text: use, use while the rule is active
Recordings: record video, record video while the rule is active
SNMP trap messages: send, send while the rule is active
Status LED: flash, flash while the rule is active
Video clips: FTP, HTTP, HTTPS, SFTP, email and network share
WDR mode: set, set while the rule is active
Built-in
installation aids
Pixel counter, level grid, digital roll
Analytics
AXIS Object
Analytics
Object classes: humans, vehicles (types: cars, buses, trucks,
bikes)
Features: line crossing, object in area, occupancy in areaBETA
Up to 10 scenarios
Metadata visualized with trajectories, color-coded bounding
boxes and tables
Polygon include/exclude areas
ONVIF Motion Alarm event
Metadata Object data: Classes: humans, faces, vehicles (types: cars, buses,
trucks, bikes)
Confidence, position
Event data: Producer reference, scenarios, trigger conditions
Applications Included
AXIS Object Analytics, AXIS Video Motion Detection, active
tampering alarm
Supported
Support for AXIS Camera Application Platform enabling
installation of third-party applications, see axis.com/acap
Approvals
Product markings CSA, UL/cUL, BIS, UKCA, CE, KC
Supply chain TAA compliant
EMC EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1,
EN 61000-6-2, EN 61547
Australia/New Zealand: RCM AS/NZS CISPR 32 Class A
Canada: ICES-3(A)/NMB-3(A)
Japan: VCCI Class A
Korea: KS C 9835, KS C 9832 Class A
USA: FCC Part 15 Subpart B Class A
Railway: IEC 62236-4
Safety IEC/EN/UL 62368-1 ed. 3, CAN/CSA C22.2 No. 62368-1 ed. 3,
IEC/EN 62471 risk group exempt, UN ECE R118, IS 13252
Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14,
IEC 60068-2-27, IEC 60068-2-78, IEC/EN 62262 IK10,
IEC/EN 60529 IP66, ISO 4892-2, NEMA 250 Type 4X,
NEMA TS 2 (2.2.7-2.2.9), ISO 21207 (Method B)
Network NIST SP500-267
Cybersecurity
Edge security Software: Signed firmware, brute force delay protection, digest
authentication, password protection, AES-XTS-Plain64 256bit
SD card encryption
Hardware: Axis Edge Vault cybersecurity platform
Secure element (CC EAL 6+), system-on-chip security (TEE), Axis
device ID, secure keystore, signed video, secure boot, encrypted
filesystem (AES-XTS-Plain64 256bit)
Network security IEEE 802.1X (EAP-TLS)
a
, IEEE 802.1AR, HTTPS/HSTSa
, TLS
v1.2/v1.3a
, Network Time Security (NTS), X.509 Certificate PKI,
IP address filtering
Documentation AXIS OS Hardening Guide
Axis Vulnerability Management Policy
Axis Security Development Model
AXIS OS Software Bill of Material (SBOM)
To download documents, go to axis.com/support/cybersecurity/resources
To read more about Axis cybersecurity support, go to
axis.com/cybersecurity
General
Casing IP66-, NEMA 4X- and IK10-rated
Polycarbonate hard-coated dome
Aluminum
Color: white NCS S 1002-B
Repaintable skin cover accessory
Mounting Mounting bracket with junction box holes (double-gang,
single-gang, and 4” octagon)
¼”-20 UNC tripod screw thread
Power Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3
Typical 6.4 W, max 12.95 W
Connectors Network: Shielded RJ45 10BASE-T/100BASE-TX PoE
I/O: Terminal block for 1 supervised alarm input and 1 output (12
VDC output, max. load 25 mA)
Audio: Audio and I/O connectivity via portcast technology
IR illumination OptimizedIR with power-efficient, long-life 850 nm IR LEDs
Range of reach 15 m (49.2 ft) depending on the scene
Storage Support for microSD/microSDHC/microSDXC card
Recording to network-attached storage (NAS)
For SD card and NAS recommendations see axis.com
Operating
conditions
-40 °C to 50 °C (-40 °F to 122 °F)
Start-up temperature: -30 °C
Humidity 10-100% RH (condensing)
Storage
conditions
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 5-95% RH (non-condensing)
Dimensions Height: 70 mm (2.7 in)
ø 149 mm (5.9 in)
Effective Projected Area (EPA): 0.0076 m2
(0.025 ft2
)
Weight 860 g (1.9 lb)
Box content Camera, installation guide, terminal block connector, connector
guard, cable gaskets, cable hole lid, owner authentication key
Optional
accessories
AXIS T8415 Wireless Installation Tool, AXIS T94T02D Pendant kit,
AXIS TM3814 Skin Cover Black, AXIS TM3204 Recessed Mount,
AXIS TM3206 Recessed Mount, AXIS Mounts and Cabinets,
AXIS Surveillance Cards
For more accessories, go to axis.com/products/axis-m4318-
plve#accessories
System tools AXIS Site Designer, AXIS Device Manager, product selector,
accessory selector, lens calculator
Available at axis.com
Languages English, German, French, Spanish, Italian, Russian, Simplified
Chinese, Japanese, Korean, Portuguese, Polish, Traditional
Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai,
Vietnamese
Warranty 5-year warranty, see axis.com/warranty
Part numbers Available at axis.com/products/axis-m4318-plve#part-numbers
Sustainability
Substance
control
PVC free, BFR/CFR free in accordance with JEDEC/ECA Standard
JS709
RoHS in accordance with EU RoHS Directive 2011/65/EU/ and
EN 63000:2018
REACH in accordance with (EC) No 1907/2006. For SCIP UUID,
see axis.com/partner.
Materials Renewable carbon-based plastic content: 29.6% (bio-based)
Screened for conflict minerals in accordance with OECD
guidelines
To read more about sustainability at Axis, go to
axis.com/about-axis/sustainability
Environmental
responsibility
axis.com/environmental-responsibility
Axis Communications is a signatory of the UN Global Compact,
read more at unglobalcompact.org

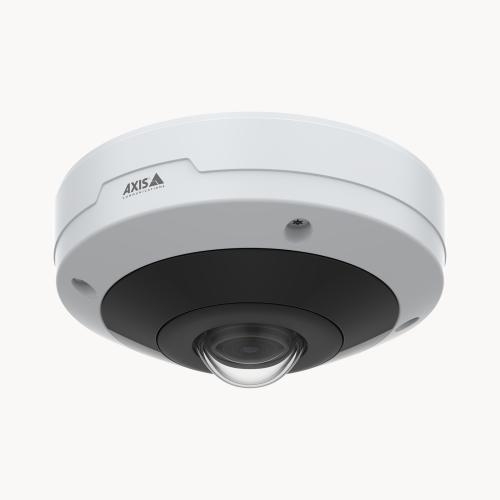

AXIS M4318-PLVE 12MP OUTDOOR PANORAMIC DOME, 360/180 VIEWS, DLPU, IR
