Camera
Image sensor 1/2.3” progressive scan RGB CMOS
Lens 1.2 mm, F2.2
Horizontal field of view: 182°
Vertical field of view: 182°
Fixed iris, fixed focus, IR corrected
Day and night Automatic IR-cut filter
Minimum
illumination
Color: 0.19 lux at 50 IRE, F2.2
B/W: 0.04 lux at 50 IRE, F2.2
Shutter speed 1/8100 s to 1/2 s
Camera angle
adjustment
Digital roll: ±180°
System on chip (SoC)
Model ARTPEC-8
Memory 2048 MB RAM, 8192 MB Flash
Compute
capabilities
Deep learning processing unit (DLPU)
Video
Video
compression
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
H.265 (MPEG-H Part 2/HEVC) Main Profile
Motion JPEG
Resolution Overview: 2992x2992 to 160x160 (1:1)
Panorama: 3840x2160 to 192x72 (8:3, 16:9 or 32:9)
Double panorama: 3584x2688 to 384x288 (4:3 or 16:9)
Quad view: 3584x2688 to 384x288 (4:3 or 16:9)
View area 1-4: 2048x1536 to 256x144 (4:3 or 16:9)
Corner left/right: 3200x1600 to 192x72 (2:1 or 8:3)
Double corner: 2880x2880 to 384x288 (1:1 or 4:3)
Corridor: 2560x1920 to 256x144 (4:3 or 16:9)
Frame rate 360° overview only up to max resolution without WDR:
25/30 fps @ 50/60 Hz
360° overview and 4 dewarped views up to max resolution with
WDR: up to 25/20 fps @ 50/60 Hz
Video streaming Multiple, individually configurable streams in H.264, H.265, and
Motion JPEG
Axis Zipstream technology in H.264 and H.265
Controllable frame rate and bandwidth
VBR/ABR/MBR H.264/H.265
Video streaming indicator
WDR Forensic WDR: Up to 120 dB depending on scene
Noise reduction Spatial filter (2D noise reduction)
Temporal filter (3D noise reduction)
Image settings Saturation, contrast, brightness, sharpness, local contrast, tone
mapping, white balance, day/night threshold, exposure mode,
exposure zones, compression, mirroring, dynamic text and image
overlay, and polygon privacy mask
Image processing Axis Zipstream, Forensic WDR
Pan/Tilt/Zoom Digital PTZ of view areas, digital PT of panorama, corner, corridor
and quad views, preset positions, guard tours
Audio
Audio features Network speaker pairing
Audio
input/output
Audio features through portcast technology: two-way audio
connectivity, voice enhancer
Network
Network
protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa
, HTTP/2, TLSa
,
QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour),
UPnP®
, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS,
RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH,
LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf),
IEEE 802.1X (EAP-TLS), IEEE 802.1AR
System integration
Application
Programming
Interface
Open API for software integration, including VAPIX®, metadata
and AXIS Camera Application Platform (ACAP); specifications at
axis.com/developer-community. ACAP includes Native SDK and
Computer Vision SDK.
One-click cloud connection
ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and
ONVIF® Profile T, specifications at onvif.org
Support for Session Initiation Protocol (SIP) for integration with
Voice over IP (VoIP) systems, peer to peer or integrated with
SIP/PBX.
Video
management
systems
Compatible with AXIS Companion, AXIS Camera Station, video
management software from Axis’ Application Development
Partners available at axis.com/vms
Onscreen
controls
Privacy masks
Media clip
Event conditions Device status: above operating temperature, above or below
operating temperature, below operating temperature, within
operating temperature, IP address removed, new IP address,
network lost, system ready, live stream active
Edge storage: recording ongoing, storage disruption, storage
health issues detected
I/O: manual trigger, virtual input
MQTT: subscribe
Scheduled and recurring: schedule
Video: average bitrate degradation, day-night mode, tampering
Event actions Day-night mode
MQTT: publish
Notification: HTTP, HTTPS, TCP and email
Overlay text
Recordings: SD card and network share
SNMP traps: send, send while the rule is active
Status LED
Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network
share and email
WDR mode
Built-in
installation aids
Pixel counter, digital roll, level grid
Analytics
AXIS Object
Analytics
Object classes: humans, vehicles (types: cars, buses, trucks,
bikes)
Features: line crossing, object in area
Up to 10 scenarios
Metadata visualized with trajectories, color-coded bounding
boxes and tables
Polygon include/exclude areas
ONVIF Motion Alarm event
Metadata Object data: Classes: humans, faces, vehicles (types: cars, buses,
trucks, bikes), license plates
Confidence, position
Event data: Producer reference, scenarios, trigger conditions
Applications Included
AXIS Object Analytics, AXIS Video Motion Detection, active
tampering alarm
Supported
Support for AXIS Camera Application Platform enabling
installation of third-party applications, see axis.com/acap
Approvals
Product markings CSA, UL/cUL, BIS, UKCA, CE, KC
Supply chain TAA compliant
EMC EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2
Australia/New Zealand: RCM AS/NZS CISPR 32 Class A
Canada: ICES-3(A)/NMB-3(A)
Japan: VCCI Class A
Korea: KS C 9835, KS C 9832 Class A
USA: FCC Part 15 Subpart B Class A
Safety IEC/EN/UL 62368-1 ed. 3, CAN/CSA C22.2 No. 62368-1 ed. 3,
IS 13252
Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14,
IEC 60068-2-27, IEC 60068-2-78
Network NIST SP500-267
Cybersecurity
Edge security Software: Signed firmware, brute force delay protection, digest
authentication, password protection, AES-XTS-Plain64 256bit
SD card encryption
Hardware: Axis Edge Vault cybersecurity platform
Secure element (CC EAL 6+), system-on-chip security (TEE), Axis
device ID, secure keystore, signed video, secure boot, encrypted
filesystem (AES-XTS-Plain64 256bit)
Network security IEEE 802.1X (EAP-TLS)
a
, IEEE 802.1AR, HTTPS/HSTSa
, TLS
v1.2/v1.3a
, Network Time Security (NTS), X.509 Certificate PKI,
IP address filtering
Documentation AXIS OS Hardening Guide
Axis Vulnerability Management Policy
Axis Security Development Model
To download documents, go to axis.com/support/cybersecurity/resources
To read more about Axis cybersecurity support, go to
axis.com/cybersecurity
General
Casing Plastic casing, encapsulated electronics
Color: white NCS S 1002-B
For repainting instructions, go to the product’s support
page. For information about the impact on warranty, go to
axis.com/warranty-implication-when-repainting.
Mounting Mounting bracket with junction box holes (double-gang,
single-gang, and 4” octagon)
¼”-20 UNC tripod screw thread
Power Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3
Typical 3.5 W, max 5.1 W
Connectors Network: Shielded RJ45 10BASE-T/100BASE-TX PoE
Audio: Audio and I/O connectivity via portcast technology
Storage Support for microSD/microSDHC/microSDXC card
Recording to network-attached storage (NAS)
For SD card and NAS recommendations, see axis.com
Operating
conditions
0 °C to 40 °C (32 °F to 104 °F)
Humidity 10–85% RH (non-condensing)
Storage
conditions
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 5–95% RH (non-condensing)
Dimensions Height: 51 mm (2.0 in)
ø 101 mm (4.0 in)
Weight 300 g (0.66 lb)
Box content Camera, installation guide, owner authentication key
Optional
accessories
AXIS TM3820 Vandal Casing (IK08, IP42 with cover hatch, IP41
without cover hatch)
AXIS TM3210 Recessed Mount
AXIS TM3211 Recessed Mount
AXIS T94 mounting accessories
AXIS T91 mounting accessories
AXIS Surveillance Cards
For more accessories, go to axis.com/products/axis-m4328-
p#accessories
System tools AXIS Site Designer, AXIS Device Manager, product selector,
accessory selector, lens calculator
Available at axis.com
Languages English, German, French, Spanish, Italian, Russian, Simplified
Chinese, Japanese, Korean, Portuguese, Polish, Traditional
Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai,
Vietnamese
Warranty 5-year warranty, see axis.com/warranty
Part numbers Available at axis.com/products/axis-m4328-p#part-numbers
Sustainability
Substance
control
PVC free, BFR/CFR free in accordance with JEDEC/ECA Standard
JS709
RoHS in accordance with EU RoHS Directive 2011/65/EU/ and
EN 63000:2018
REACH in accordance with (EC) No 1907/2006. For SCIP UUID,
see axis.com/partner.
Materials Renewable carbon-based plastic content: 73% (recycled)
Screened for conflict minerals in accordance with OECD
guidelines
To read more about sustainability at Axis, go to
axis.com/about-axis/sustainability
Environmental
responsibility
axis.com/environmental-responsibility
Axis Communications is a signatory of the UN Global Compact,
read more at unglobalcompact.org

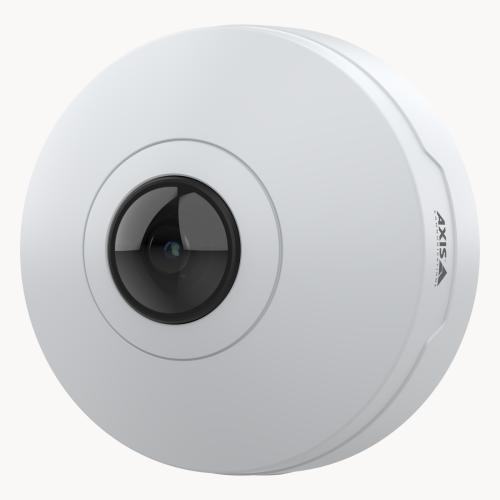

AXIS M4328-P 12MP INDOOR PANORAMIC DOME, 180 & 360 VIEWS, DLPU
