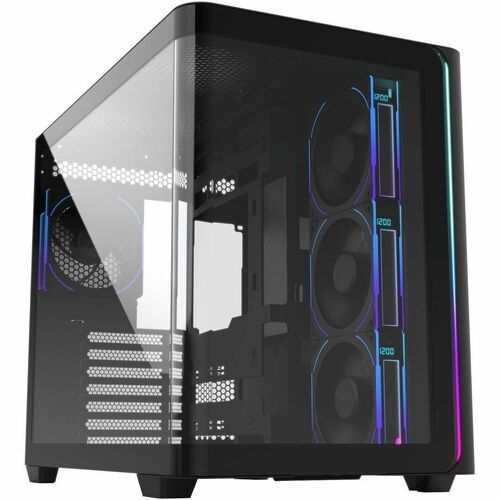

Fsp M580PLUS ATX Mid Tower Gaming Computer Case (Black) - ATX, Micro ATX, ITX - 270° Panoramic Curved Glass - Digital Display - USB Type-C - ARGB fans M580-BP
More than Perfect
The M580 PLUS features a complete curved tempered glass panel, offering an panoramic view from front to side, delivering a seamless, perfect visual immersion.
The curved glass of the M580 PLUS uses the most advanced manufacturing process, enhancing both transparency and structural strength.
M580 PLUS not only focuses on aesthetics but also prioritizes your safety.
Modular Daisy Chain Fans with Speed Display
Built on the foundation of the M580, the M580 PLUS is fully equipped with daisy chain modular block fans, continuing the cable-free experience.
In addition to ARGB lighting and infinity mirror fan, it features a digital display screen for fan speed and long-lasting dual ball bearing, offering both aesthetics and enduring performance!
Still Struggling to Choose a Cooler?
The M580 PLUS supports liquid cooling radiators ranging from 240 to 360 mm. Additionally, it supports air coolers up to 160 mm in height, covering most types available on the market.
We Understand Your Demands for Aesthetics
The M580 PLUS fully supports the next-generation back-connect motherboard, eliminating the hassle of cable management, as all cables are hidden on the other side, out of view.
With its seamless curved glass and modular block fans, it delivers a cable-free, flawless visual experience.
Pursuing Performance, We Think Alike
The M580 PLUS is equipped with four high-performance 30mm-thick fans, including three reverse fans, enhancing overall airflow for smoother and more stable performance. It easily handles any high-end setup with ease.
Every Precious Memory, Store Without Limits
The M580 PLUS supports up to 2 x 3.5" HDDs and 3 x 2.5" SSDs (shared with SSD slots), allowing for flexible expansion of your storage devices anytime.
- 270° panoramic views curved glass exterior design
- Supporting back-connect motherboard
- Exquisite rounded chamber design
- Equipped with reverse ARGB fans
- Supporting up to 360mm radiator
- Supporting up to 445mm graphics cards
- Lighting fast Type-C
| I/O Expansions | |
| Total Number of Expansion Slots | 7 |
| Bays | |
| "Number of Internal 2.5"" Bays" | 3 |
| "Number of Internal 3.5"" Bays" | 2 |
| Number of Total Expansion Bays | 5 |
| Interfaces/Ports | |
| Front USB | Yes |
| Total Number of USB Ports | 3 |
| USB Port Details | 2 x USB 3.0 |
| 1 x USB Type C | |
| General Information | |
| Product Type | Gaming Computer Case |
| Manufacturer Part Number | M580-BP |
| Manufacturer Website Address | http://www.fspgroupusa.com |
| Manufacturer | FSP Group USA Corp |
| Product Model | M580PLUS |
| Product Name | M580PLUS Gaming Computer Case |
| Brand Name | FSP Group |
| Physical Characteristics | |
| Weight (Approximate) | 7.50 kg |
| Form Factor | Mid-tower |
| Cooler Type | Fan/Liquid Cooler |
| Height | 398 mm |
| Width | 285 mm |
| Depth | 460 mm |
| Product Color | Black |
| Maximum CPU Cooler Height | 160 mm |
| Maximum PSU Length | 240 mm |
| Color Family | Black |
| Product Material | Tempered Glass |
| SPCC | |
| Maximum GPU Length | 445 mm |
| Technical Information | |
| Motherboard Supported | Mini ITX |
| Micro ATX | |
| ATX | |
| Features | ARGB Fan |
| Cable Management | |
| Number of Fans Supported | 10 |
| Number of Fans Installed | 4 |
| Fan Size Supported | 140 mm |
| 120 mm | |
| Installed Fan Size | 120 mm |
| Window Panel | Yes |
| Window Panel Location | Front |
| Side Panel | |
| Installed Fan Size Details | 4 x 120mm |
