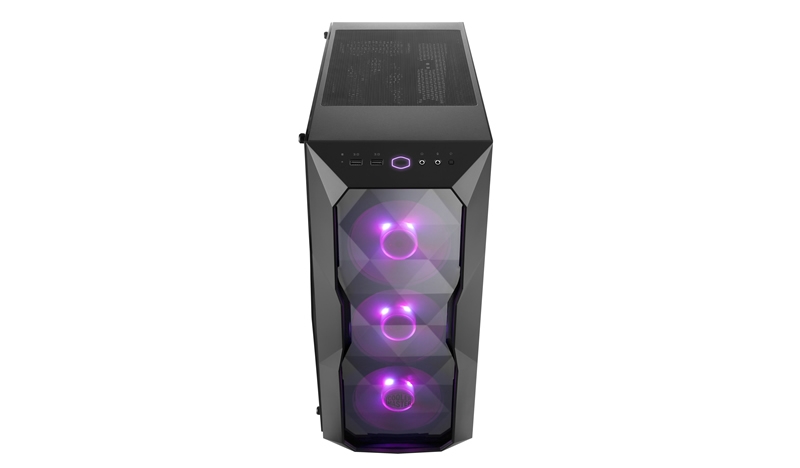

Cooler Master Masterbox Td500 Rgb Diamond Cut Design 3x Rgb Led Fans Edge To Edge Acrylic Side
No Longer Available
QUICK OVERVIEW
-
EDGE TO EDGE TRANSPARENT SIDE PANEL
Show off your build through the uniquely shaped edge to edge transparent side panel and enjoy the special lighting effects from different viewing angles.
-
-
COVERS FOR CLEAN BUILDS
An additional cable covers take cable management to the next level. Assemble clean builds like a pro.
-
-
VERSATILE COOLING OPTIONS
Front: Three 120mm or two 140mm fans and up to a 360mm radiator.
Top: Two 120mm or two 140mm fans and a 120/240mm radiator.
Rear: One 120mm fan or radiator.
All to ensure you don’t have to compromise on performance. -
-
MAIN COMPONENTS CLEARANCE
The MasterBox TD500 supports CPU-Coolers up to a height of 165mm, Graphic Cards up to a length of 410mm, and Power Supplies up to a length of 180mm.
-
-
EXPANDING THE POSSIBILITIES
The spacious interior fits all standard motherboards for your system needs. Let your configuration stand out with an all-black background.
Product Name | MasterBox TD500 |
Model Number | MCB-D500D-KANN-S00 |
Available Color | Black |
Materials | Steel, Plastic |
Dimensions (L x W x H) | 493 x 217 x 468 mm |
Motherboard Support | ATX (up to 272mm width), Micro-ATX, Mini-ITX |
Expansion Slots | 7 |
5.25" Drive Bays | N/A |
3.5" Drive Bays (HDD) | 2 (Max. 2) |
2.5" Drive Bays (SSD) | 4 (Max. 6) |
I/O Panel | USB 3.0 x 2, Audio In / Out |
RGB controller | RGB controller included |
RGB cable | 1 to 5 Splitter Cable included |
Pre-installed Fan(s) | Front 120mm RGB Fan x 3 Rear 120mm Black Fan x 1 |
Fan Support | Front: 120mm x 3 / 140mm x 2 Top: 120/140mm x 2 Rear: 120mm x 1 |
Radiator Support | Front: 120/140/240/280/360mm Rear: 120mm Top: 120/240mm |
Clearances | CPU Cooler: 165mm / 6.49" PSU: 180mm / 7.08" GPU: 410mm / 16.10" |
Cable Routing | Behind MB Tray: 19mm / 0.74" |
Dust Filters | Front, Top, Bottom |
Power Supply Support | Bottom mount, ATX |
EAN Code | 4719512071106 |
UPC Code | 884102043604 |
