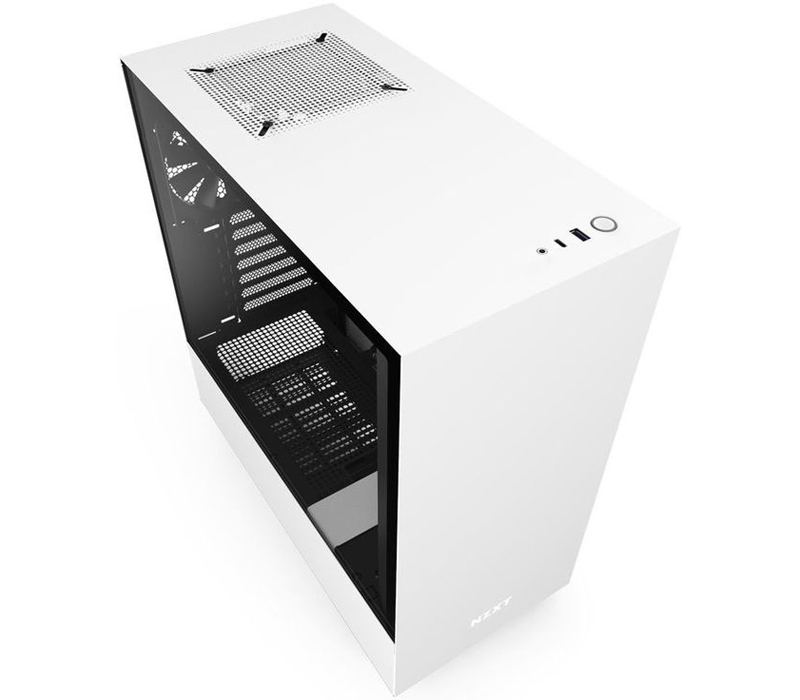

NZXT H510 Compact Mid-Tower Case with Tempered Glass with 2x Aer F120mm Fans CA-H510B-W1
SKU
287031
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$0.00
Buy Now And Earn 0 Reward Points!
| Dimensions |
W: 210mm H: 435mm D: 428mm (without feet) W: 210mm H: 460mm D: 428mm (with feet) |
| Material(s) | SGCC Steel, Tempered Glass |
| Weight | 6.6 kg |
| Motherboard Support | Mini-ITX, MicroATX, and ATX |
| Front I/O Ports |
1x USB 3.1 Gen 2 Type-C 1x USB 3.1 Gen 1 Type-A 1x Headset audio Jack Front I/O internal header 1x USB 3.1 Gen 2 Internal Header 1x USB 3.1 Gen 1 Internal Header 1x HD Audio Header |
| Filters | All Air Intakes |
| Included Accessories |
Installation screws 10x Cable ties 1x Headset Audio Jack splitter (4 pole to 3 pole) |
| Drive Bays |
2.5”: 2+1 3.5”: 2+1 |
| Expansion Slots | 7 |
| Radiator Support |
Front: 2x 140 or 2x 120mm with Pull Rear: 1x 120mm |
| Fan Support |
Front: 2 x 120/ 2 x 140mm Top: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included) Rear: 1x 120mm (1 Aer F120 Case Version included) |
| Fan Specs |
Aer F120
(Case Version) Speed: 1200 ± 200 RPM Airflow: 50.42 CFM Noise: 28 dBA Bearing: Rifle Bearing |
| Clearance |
Cable Management: 19-23mm GPU Clearance: Up to 381mm w/o front watercooler installed, up to 325mm with front watercooler installed CPU Cooler: Up to 165mm Front Radiator: 60mm Rear Radiator: 60mm Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel) |
| Warranty | 2 Years |
| Model Number | CA-H510B-W1 |
| EAN | 5060301695065 |
| UPC | 815671014764 |
