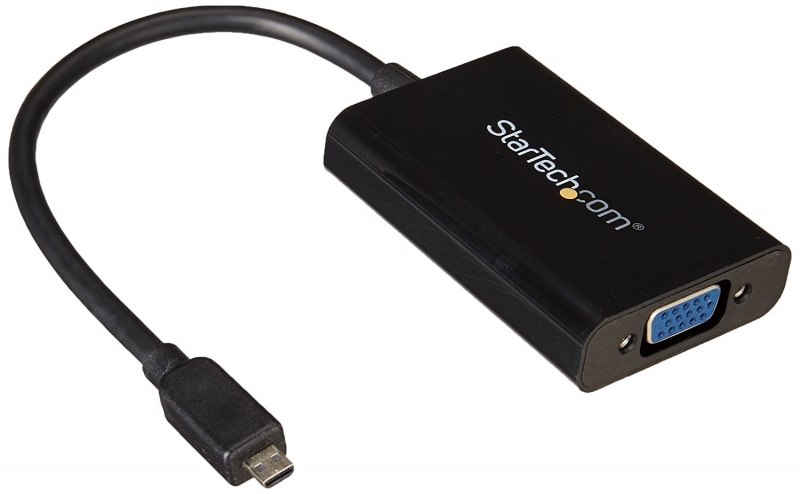

main product photo

Startech Micro Hdmi To Vga Adapter With Audio For Smartphones / Ultrabooks / Tablets - 1920x1200

SKU
223606
Brand
Startech
Manufacturer Link
MPN
MCHD2VGAA2
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$58.00
Buy Now And Earn 58 Reward Points!

QUICK OVERVIEW

- M/F MCHD2VGAA2
Add to Compare

StarTech.com Micro HDMI to VGA Adapter with Audio for Smartphones / Tablets

  • Adds value to an Ultrabook, tablet or smartphone equipped with Micro HDMI® output, by broadening compatibility with commonly available VGA display devices (Television, Monitor, Projector)
    　
  • Saves the time and hassle of finding a power outlet/source, by not requiring an external power adapter
    　
  • Supports output resolutions to a PC monitor or projector up to 1920x1200 (WUXGA), HDTV resolutions up to 1080p
    　
  • Easy to use with no software required
    　
  • Compact, lightweight, and portable design
    　
  • Supported on any VGA display, including televisions and projectors
    　
 StarTech.com Micro HDMI to VGA Adapter with Audio for Smartphones / Tablets

Features

Connect a Micro HDMI-equipped Ultrabook, or Tablet or Smartphone to your VGA Display, or Projector with AudioThe MCHD2VGAA2 Micro HDMI-to-VGA Video Adapter enables you to connect an Ultrabook, Smartphone or tablet that outputs content through a Micro HDMI connector to a VGA-capable display device (television, monitor, projector), and also offers discrete 2-channel analog audio output from the Micro HDMI source. The Micro HDMI-to-VGA adapter is intended for displaying user generated content such as presentations, documents, and work sheets onto a VGA projector or monitor.
 StarTech.com Micro HDMI to VGA Adapter with Audio for Smartphones / Tablets
StarTech.com Micro HDMI to VGA Adapter with Audio for Smartphones / Tablets
Share or Extend your Ultrabook, Smartphone or Tablet HD Display to a VGA Monitor, Projector or Television
  • Cost effective way to connect your smartphone or tablet to a VGA Display
  • Multiple monitors have consistently proven to increase productivity and efficiency
  • Run multiple applications on different screens
StarTech.com Micro HDMI to VGA Adapter with Audio for Smartphones / Tablets
Ideal for low powered video cards
  • Optional External USB power
  • Works with low powered Micro HDMI video cards that do not output enough power for a stand-alone adapter
  • No External power required for most video cards
 StarTech.com Micro HDMI to VGA Adapter with Audio for Smartphones / Tablets
StarTech.com Micro HDMI to VGA Adapter with Audio for Smartphones / Tablets
Audio Support
  • 3.5mm stereo audio output
Designed for Travel - Lightweight and portable
  • Small foot print makes this adapter ideal for connecting your tablet or smartphone to VGA displays while on the road or in boardrooms using VGA projectors
Plug-and-Play Installation
  • No Software or drivers required
  • Connect the MCHD2VGAA2 to the Micro HDMI output on your device
  • Connect your Display to the MCHD2VGAA2 using a VGA cable
  • If external power is required, connect the included USB power cable from the device to a USB power source
Supported Resolutions
  • 1920x1200, 1920x1080 (1080p), 1600x1200 @ 60Hz
 StarTech.com Micro HDMI to VGA Adapter with Audio for Smartphones / Tablets
Connector(s)
Connector AMicro HDMI (19 pin) Male Input
Connector B3.5 mm Mini-Jack (3 Position) Female Output
VGA (15 pin, High Density D-Sub) Female Output
Connector Type(s)USB Micro-B (5 pin) Female
Environmental
Humidity40%-85%RH
Operating Temperature0?C to 60?C (32?F to 140?F)
Storage Temperature-10?C to 70?C (14?F to 158?F)
Hardware
Active or Passive AdapterActive
AudioYes
Converter TypeFormat Converter
Industry StandardsHDMI?, HDCP
Packaging Information
Shipping (Package) Weight58 g [2 oz]
Performance
Audio Specifications2 Channel
Maximum Analog Resolutions1920x1080
Maximum Digital Resolutions1920x1080 (1080p) @ 60Hz
Supported Resolutions1920x1080 (1080p) @ 60Hz
Wide Screen SupportedYes
Physical Characteristics
ColorBlack
Enclosure TypePlastic
Product Height15 mm [0.6 in]
Product Length258 mm [10.2 in]
Product Weight34 g [1.2 oz]
Product Width45 mm [1.8 in]
What's in the Box
Included in PackageMicro HDMI? to VGA Adapter Converter

The MCHD2VGAA2 Micro HDMI® to VGA Video Adapter enables you to connect a Smartphone or tablet that outputs content through a Micro HDMI connector to a VGA-capable display device (television, monitor, projector), and also offers discrete 2-channel analog audio output from the Micro HDMI® source. The Micro HDMI to VGA adapter is intended for displaying user generated content such as presentations, documents, and work sheets onto a VGA projector or monitor.

This versatile adapter supports high definition output, including 1080p for HDTV connections, and up to 1920x1200 (WUXGA) for computer VGA monitors.

The MCHD2VGAA2 Micro HDMI® to VGA Video Adapter is backed by 2-year warranty and free lifetime technical support.
