Startech Mini-sas Adapter - Dual Sff-8643 To Sff-8644 - With Full And Low-profile Brackets - 12gbps
SKU
234611
Brand
MPN
SFF86448PLT2
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$151.00
Buy Now And Earn 151 Reward Points!
QUICK OVERVIEW
SFF86448PLT2

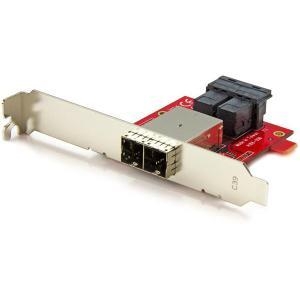

| Mini-SAS Adapter - Dual SFF-8643 to SFF-8644 - with Full and Low-Profile Brackets - 12Gbps Convert two internal SFF-8643 ports into two external SFF-8644 ports.Convert two internal SFF-8643 ports into two external SFF-8644 ports. This Mini-SAS adapter lets you convert two internal SFF-8643 ports on a controller card into two external SFF-8644 ports. This enables you to connect external SAS or SATA drives in devices such as a Direct Attached Storage (DAS) device to an internal backplane or SAS controller for additional storage. The adapter can connect up to eight drives in total and is compatible with 12Gbps SAS drives as well as 6Gbps SATA drives. For installation in small form-factor computers, the adapter includes an optional half-height (low-profile) bracket, in addition to the preinstalled standard-height bracket. The SFF86448PLT2 is backed by a StarTech.com 2-year warranty and free lifetime technical support. |
| Connector(s) | |
| Connector A | SFF-8643 (36 pin, Internal HD Mini SAS) Receptacle |
| Connector B | SFF-8644 (36 pin, External HD Mini SAS) Receptacle |
| Hardware | |
| Ports | 4 |
| Packaging Information | |
| Shipping (Package) Weight | 121 g [4.3 oz] |
| Performance | |
| Supported Protocols | SATA and SAS |
| Physical Characteristics | |
| Product Height | 22 mm [0.9 in] |
| Product Length | 74 mm [2.9 in] |
| Product Weight | 58 g [2 oz] |
| Product Width | 120 mm [4.7 in] |
| What's in the Box | |
| Included in Package | dual SFF-8643 to SFF-8644 Mini-SAS HD adapter |
| low-profile bracket | |
