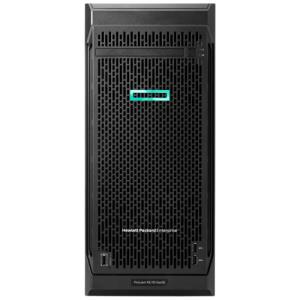

Hpe Ml110 Gen10 3106 Ht Plg Perf Ap Svr P03685-375
No Longer Available
Are you searching for a tower server with exceptional value to meet the requirements of your small-to-midsized business? The HPE ProLiant ML110 Gen10 server is an enhanced tower with performance, expansion, and growth at an affordable price. It meets most small- and mid-sized businesses’ needs as well as accelerates your business compute. The ProLiant ML110 Gen10 is a single processor tower form factor that can also be placed in a rack server cabinet using 4.5U of rack space. It includes up to five PCIe slots with room to grow with eight large form factor (LFF) or 16 small form factor (SFF) disk drives. It provides six DDR4 DIMM slots supporting HPE DDR4 SmartMemory with a maximum capacity of 192 GB. The HPE ProLiant ML110 Gen10 server also offers optional redundant fan and redundant power supply to satisfy automatic fail-over needs, making this the ideal server for small- to mid-sized businesses and remote offices and branch offices.
What's new
- New SMB focused offers regionally released as “Smart Buy Express” in the U.S. and Canada, “Top Value” in Europe, and “Intelligent Buy” in Asia Pacific and Japan.
- Supports Intel® Xeon® Scalable processors up to 14 cores and up to 105W.
- Supports up to 8 LFF non-hot plug SATA/SAS hard disk drives.
- Optional support for redundant fans and up to two graphic processing units (GPUs)
- Protect, detect and remover with built-in security features such as Silicon Root of Trust, Runtime Firmware Validation and Secure Recovery.
Features
Right-sized, With the Balance of Performance To Meet Growing SMB Requirements
The HPE ProLiant ML110 Gen10 Server is compact with less than a 19-inch depth, quiet, and affordable that can deliver the performance needed for the compute demands of a growing office small- to mid-sized business.
Supports industry standard technology leveraging the Intel Xeon Scalable Processors operating with speeds of up to 3.6 GHz and up to 14 cores offering improved performance.
Supports up to two optional graphic processing units (GPUs) allowing one double wide and one single wide card to boost performance in graphic and Virtual Desktop Infrastructure (VDI) applications such as financial services, education, scientific research and medical imaging.
The embedded HPE Dynamic Smart Array S100i Controller for SATA disk drives supports boot, data and media needs. These enhanced HPE Smart Array Controllers provide the flexibility to choose the optimal 12 Gbps controller most suited to your environment, as well as operate in both SAS and HBA modes.
Build a fully functional server with ClearOS Software from Hewlett Packard Enterprise that is just right for you at no upfront cost.
Expandability To Fit the Needs of Growing, Budget-conscious Businesses
The HPE ProLiant ML110 Gen10 Server offers up to six DIMM slots with support for up to 192 GB of HPE DDR4 SmartMemory, helping to prevent data loss and downtime with enhanced error handling while improving workload performance and power efficiency.
Support optional redundant fan and redundant power supplies reducing data loss and downtime, making your server more reliable. Flexible expansion capacity with five PCIe expansion slots, eight USB ports and one optional serial port.
HPE SmartDrives delivers enhanced performance, capacity, and reliability to meet various customer segments and workload requirements at the right economics. Support up to eight large form factor (LFF) disk drives or 16 small form factor (SFF) disk drive options.
Security Innovations
The HPE ProLiant ML110 Gen10 Server is part of the Hewlett Packard Enterprise offering of industry-standard servers with major firmware anchored directly into the silicon. With security protection built-in across the server lifecycle starting with Silicon Root of Trust.
Secure Recovery allows server firmware to roll back to the last known reliable state or factory settings after detection of compromised code.
Millions of lines of firmware code run before server operating system boots and with Run-time Firmware Validation, enabled by HPE iLO Advanced Premium Security Edition, the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware.
Industry-Leading Services and Ease of Deployment
The HPE ProLiant ML110 Gen10 Server comes with a complete set of services from HPE Pointnext, delivering confidence, reducing risk, and helping you realize agility and stability.
HPE Pointnext Services simplifies all stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an enchanced solution. Professional Services enables rapid deployment of solutions and Operational Services provides ongoing support.
Services provided under Operational Services include: HPE Flexible Capacity, HPE Datacenter Care, HPE Infrastructure Automation, HPE Campus Care, HPE Proactive Services and multi-vendor coverage.
HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.
| Controllers | |
|---|---|
| Controller Type: | Serial ATA/600 |
| RAID Supported: | Yes |
| Display & Graphics | |
|---|---|
| Graphics Memory Capacity: | Up to 16 MB |
| I/O Expansions | |
|---|---|
| Hot Swappable Bays: | Yes |
| Number of 3.5" Bays: | 4 |
| Number of External 5.25" Bays: | 1 |
| Number of Total Expansion Bays: | 5 |
| Memory | |
|---|---|
| Maximum Memory: | 192 GB |
| Memory Technology: | DDR4 SDRAM |
| Number of Total Memory Slots: | 6 |
| Standard Memory: | 16 GB |
| Miscellaneous | |
|---|---|
| Energy Star: | Yes |
| Environmentally Friendly: | Yes |
| Network & Communication | |
|---|---|
| Ethernet Technology: | Gigabit Ethernet |
| Physical Characteristics | |
|---|---|
| Depth: | 480.6 mm |
| Form Factor: | Tower |
| Height: | 439.9 mm |
| Rack Height: | 4.5U |
| Weight (Approximate): | 25 kg |
| Width: | 195.1 mm |
| Power Description | |
|---|---|
| Input Voltage: | 120 V AC |
| Maximum Power Supply Wattage: | 550 W |
| Number of Power Supplies Installed: | 1 |
| Number of Power Supplies Supported: | 1 |
| Software | |
|---|---|
| Operating System: | No |
| Storage | |
|---|---|
| Optical Drive Type: | No |
| Total Hard Drive Capacity: | No |
| Marketing Text | The HPE ProLiant ML110 Gen10 server is an enhanced tower with performance, expansion, and growth at an affordable price. It meets most small- and mid-sized businesses needs as well as accelerates your business compute. The ProLiant ML110 Gen10 is a single processor tower form factor that can also be placed in a rack server cabinet using 4.5U of rack space. |
| PI Date | May 2018 |
| Brand Name | HPE |
| Manufacturer Web Site | http://www.hpe.com |
| Form Factor | Tower 4.5U |
| Product Line | ProLiant |
| Product Model | ML110 Gen10 |
| Product Type | Tower Server |
| Cache | 11MB |
| Cache Type | L3 |
| Manufacturer | Intel |
| Model | 3106 |
| No. of Processors | 1 |
| Speed | 1.7GHz |
| Type | Xeon |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| No. of Slots | 6 |
| RAM Size | 16GB |
| RAM Type | DDR4 |
| RAM Upgradable Upto | 192GB |
| Storage Controller | Smart Array S100i |
| Memory Size | 16MB |
| Network Controller | 332i |
| Network Type | Gigabit Ethernet |
| No. of Ports | Dual |
| Bay Size | LFF |
| No. of Bays | 4 |
| Depth (mm) | 195.0 |
| Height (mm) | 480.5 |
| Width (mm) | 440.0 |
| Weight (Kg) | 13.5 |
| Other Features | * HPE iLO Standard with Intelligent Provisioning * HPE Smart Array S100i SR Gen10 SW RAID * HPE Ethernet 1Gb 2-port 332i Adapter |
| Power | 550Watt |
| Security Features | * UEFI Secure Boot and Secure Start support * Immutable Silicon Root of Trust * Ability to rollback firmware |
| Compliance Standards | * Energy Star |
